Intake Air Valve Connector End View

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

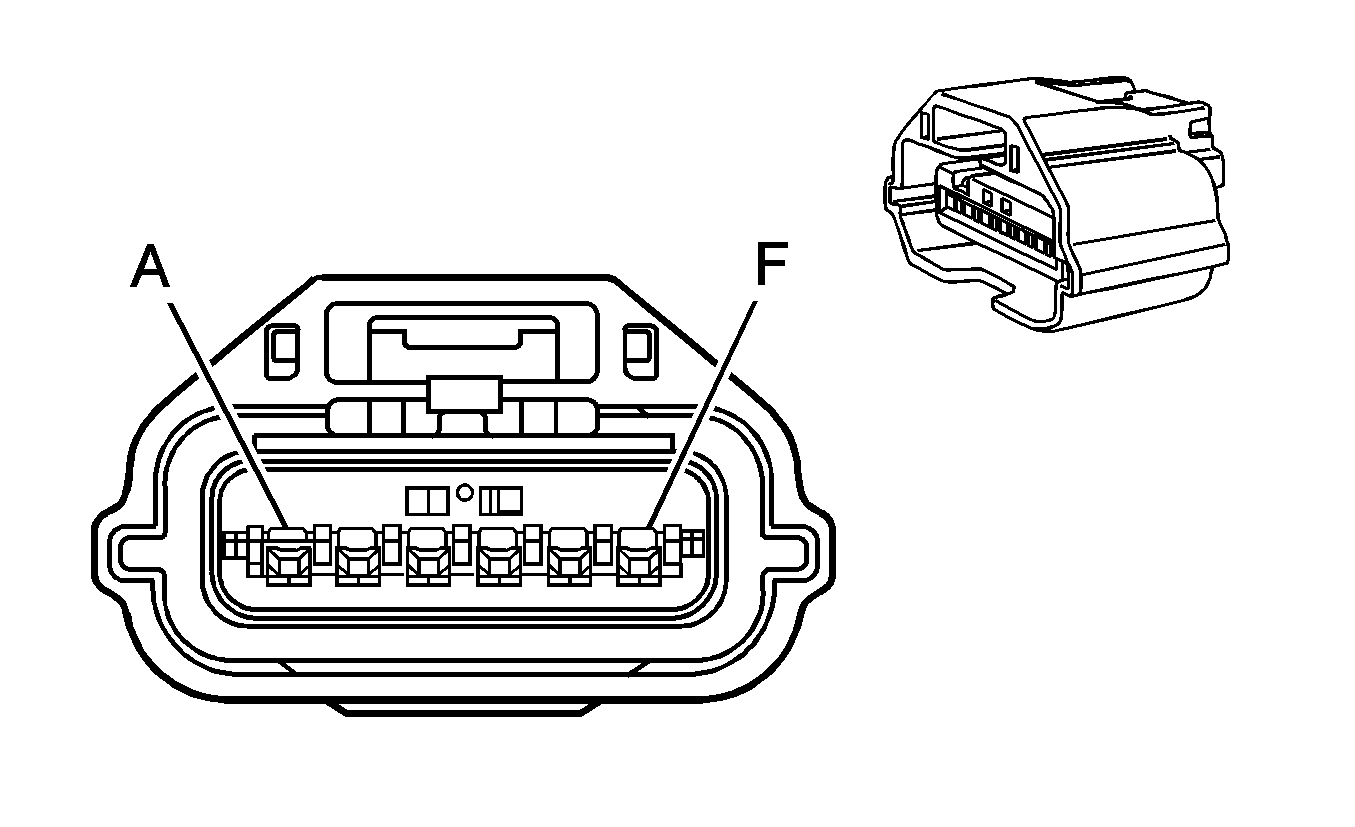

Fig 1: Intake Air Valve Connector End View
GM1825564Courtesy of GENERAL MOTORS CORP.
Intake Air Valve Connector Parts Information

Connector Part Information
  • OEM: 7283-8850-30
  • Service: See Catalog
  • Description: 6-Way F RH Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Intake Air Valve Connector Terminal Identification

Pin Wire Color Circuit No. Function
A 0.75 YE IC156 Motor Control - 1
B 0.75 BN IC151 Motor Control - 2
C 0.5 TN IC154 Low Reference
D - - Not Used
E 0.5 D-GN IC153 TP Sensor Signal
F 0.5 GY IC150 5-Volt Reference
