Turbocharger Vane Position Sensor Connector End View

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

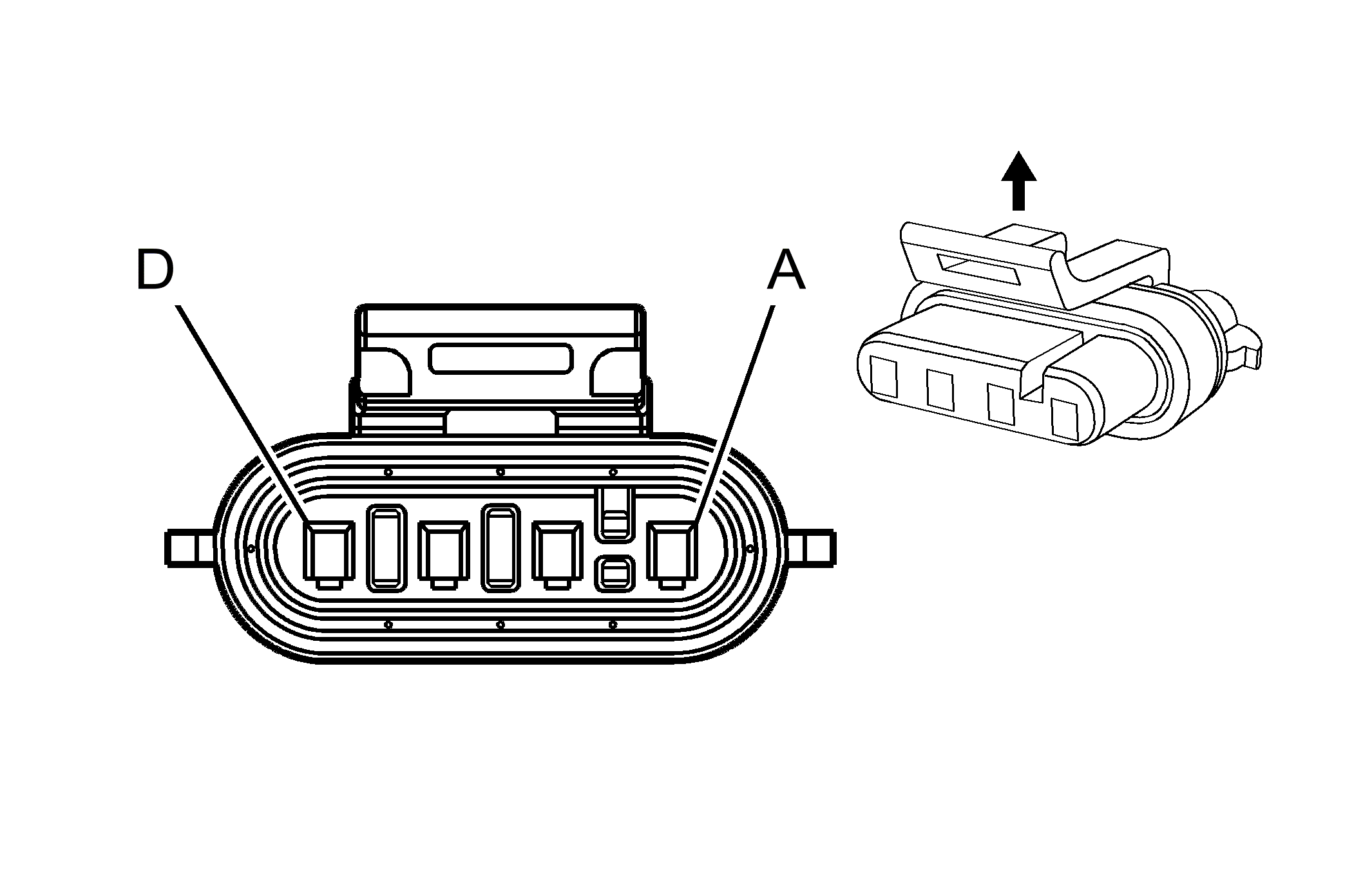

Fig 1: Turbocharger Vane Position Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

Turbocharger Vane Position Sensor Connector Parts Information

Connector Part Information

OEM: 12191366
Service: 88988603
Description: 4-Way F Metri-Pack 150 Series Sealed (L-GY)

Terminal Part Information

Terminal/Tray: 12160223/3
Core/Insulation Crimp: See E/1
Release Tool/Test Probe: 12094429/J-35616-14 (GN)

Turbocharger Vane Position Sensor Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	0.5 TN	IC160	5-Volt Reference
B	0.5 OG/BK	IC161	Low Reference
C	0.5 YE	IC162	Turbocharger Vane Position Sensor Signal
D	-	-	Not Used
