Door Latch Assembly Connector End View - Driver (-AU3)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

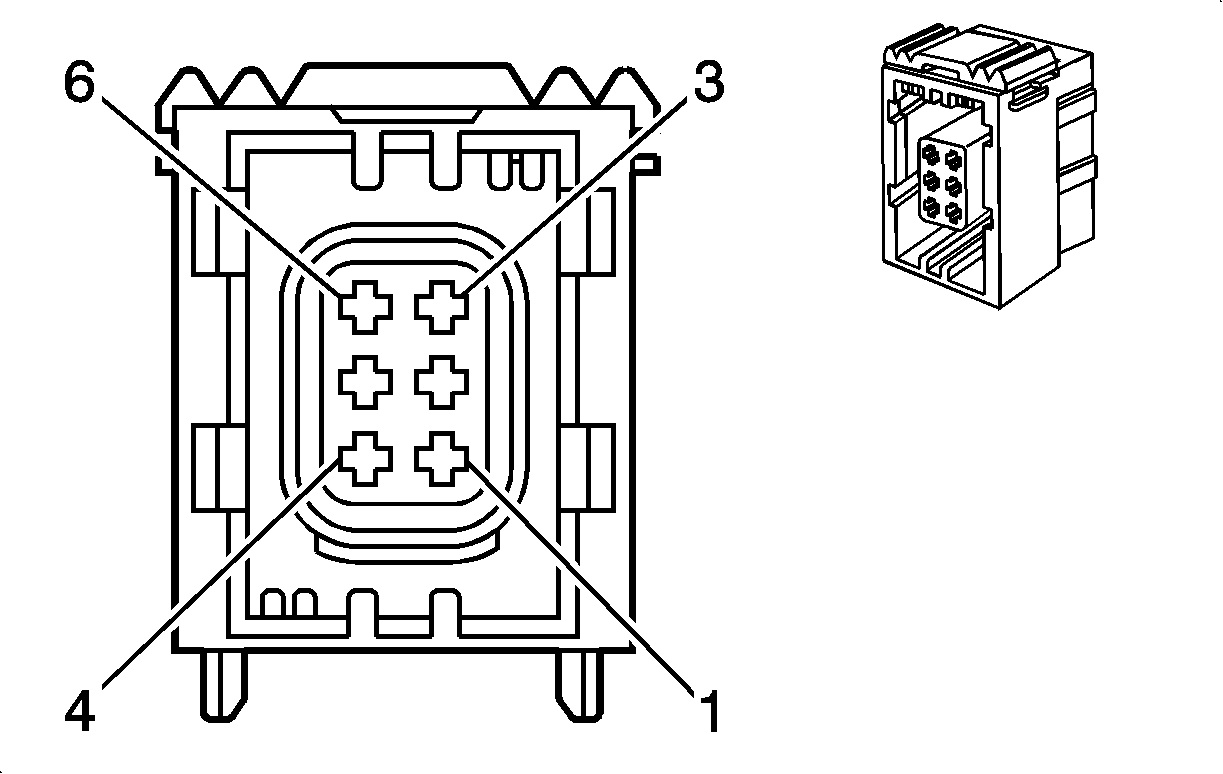

Fig 1: Door Latch Assembly - Driver (-AU3) Connector End View
GM845632Courtesy of GENERAL MOTORS CORP.
Door Latch Assembly - Driver (-AU3) Connector Parts Information

Connector Part Information
  • OEM: 10768369
  • Service: 88986251
  • Description: 6-Way F Sealed Series (BK)
Terminal Part Information
  • Pins: 4-6
  • Terminal/Tray: 4-969005-1/16
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)
Door Latch Assembly - Driver (-AU3) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 0.35 GY/BK 745 Left Front Door Ajar Switch Signal
5 0.35 TN 126 Left Front Door Open Switch Signal
6 0.35 BK 1850 Ground
