Outside Moisture Sensor Connector End View (CE1)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

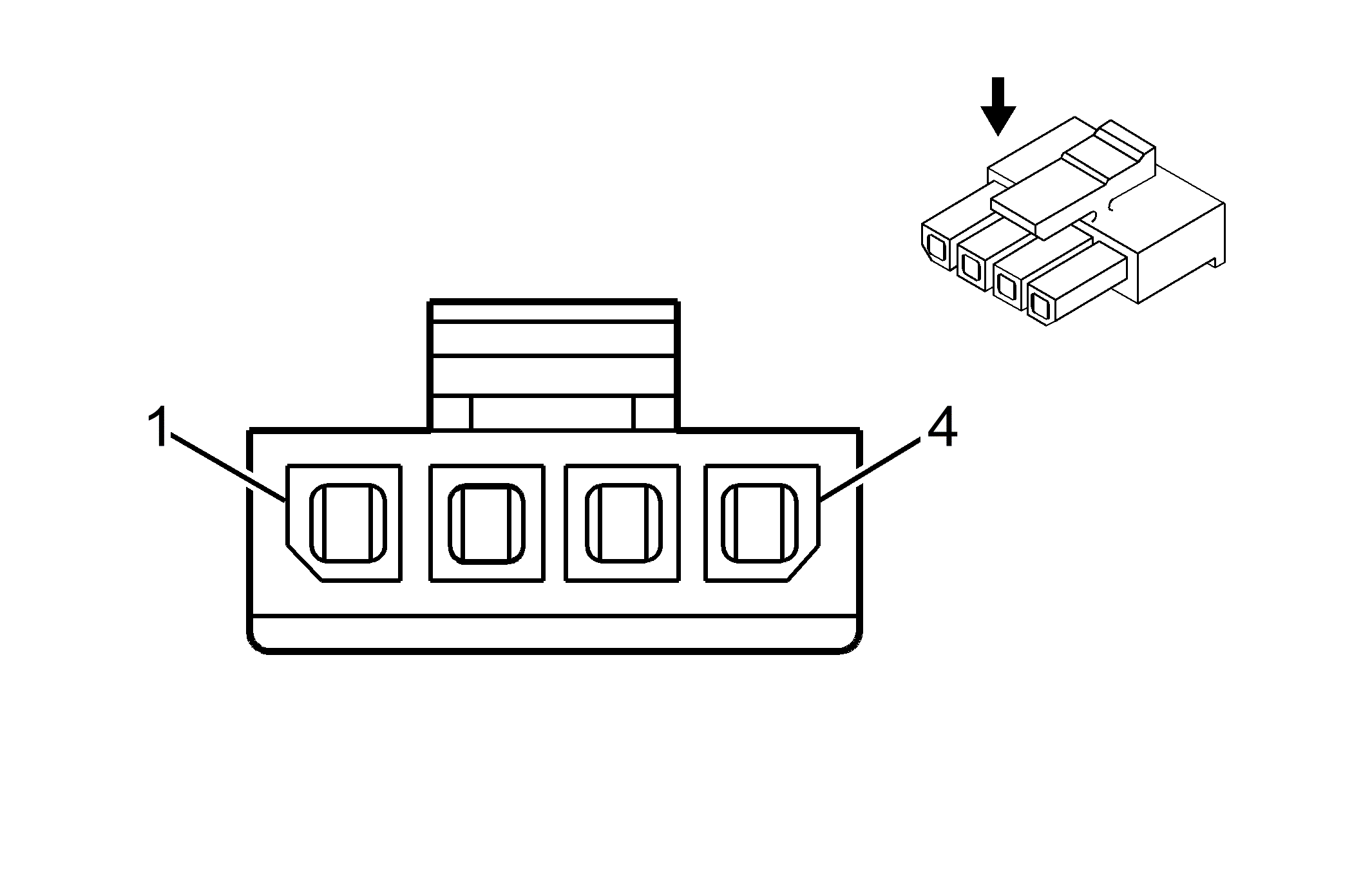

Fig 1: Outside Moisture Sensor (CE1) Connector End View

Courtesy of GENERAL MOTORS CORP.

Outside Moisture Sensor (CE1) Connector Parts Information

Connector Part Information

OEM: 15324252
Service: 15306387
Description: 4-Way F Micro-Fit (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Outside Moisture Sensor (CE1) Connector Terminal Identification

Pin	Wire	Circuit No.	Function
1	0.35 L-GN	482	Outside Moisture Sensor Signal 2
2	0.35 TN	481	Outside Moisture Sensor Signal 1
3	0.35 BK	1050	Ground
4	0.35 WH	2283	Ignition Voltage
