Section 193 (Generators & Regulators): Overhaul
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

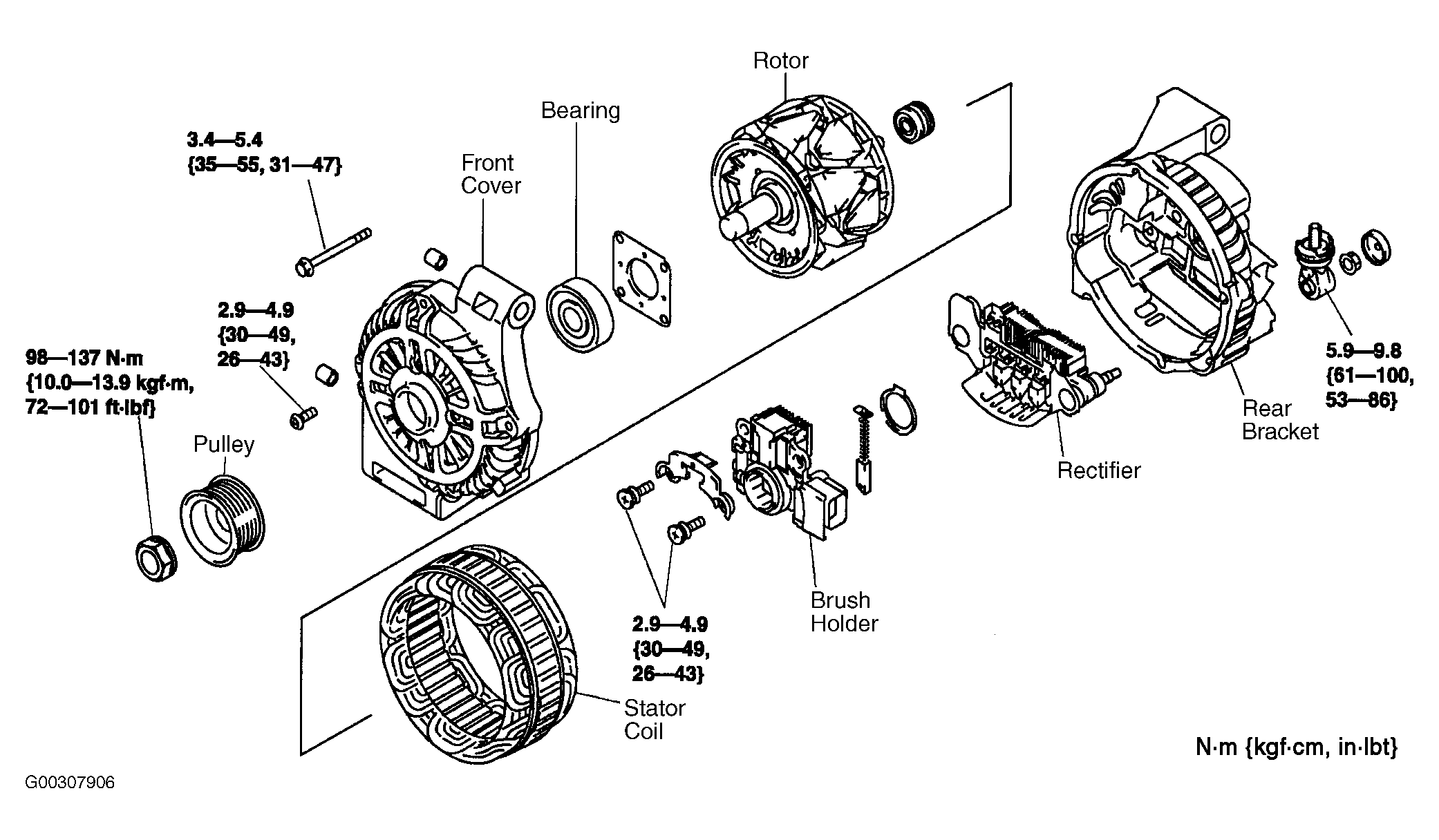

Overhaul procedure is not available from manufacturer. To aid in overhaul, refer to illustration. See Fig 1.
