Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply rubber lubricant to the bushing (1) and spring eye (2).
  2. Install the bushing to the leaf spring.
    1. Place the leaf spring in a press.
    2. Press the bushing into the spring.
  3. Install the leaf spring. Refer to Leaf Spring Replacement .
  4. Lower the vehicle.

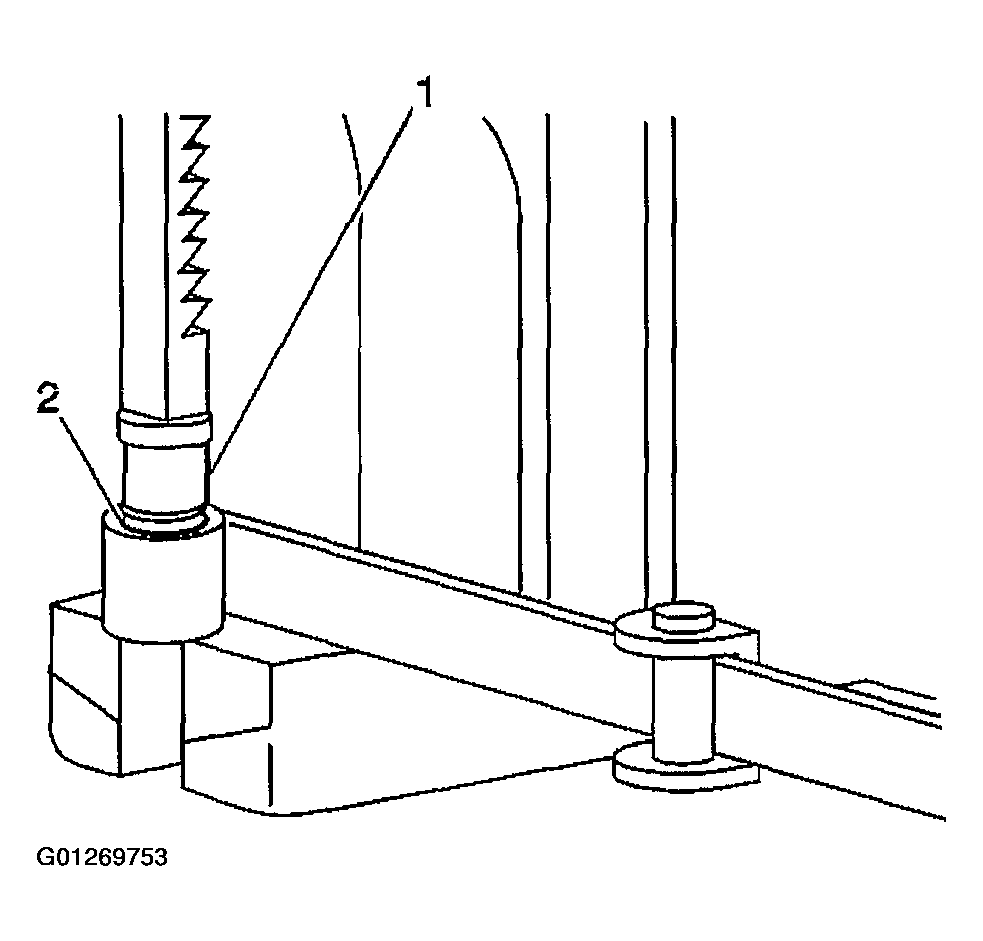

    Fig 1: Installing Bushing Into Leaf Spring
    G01269753Courtesy of GENERAL MOTORS CORP.
