Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the leaf spring. Refer to Leaf Spring Replacement .
Remove the bushing from the leaf spring using the following procedure:

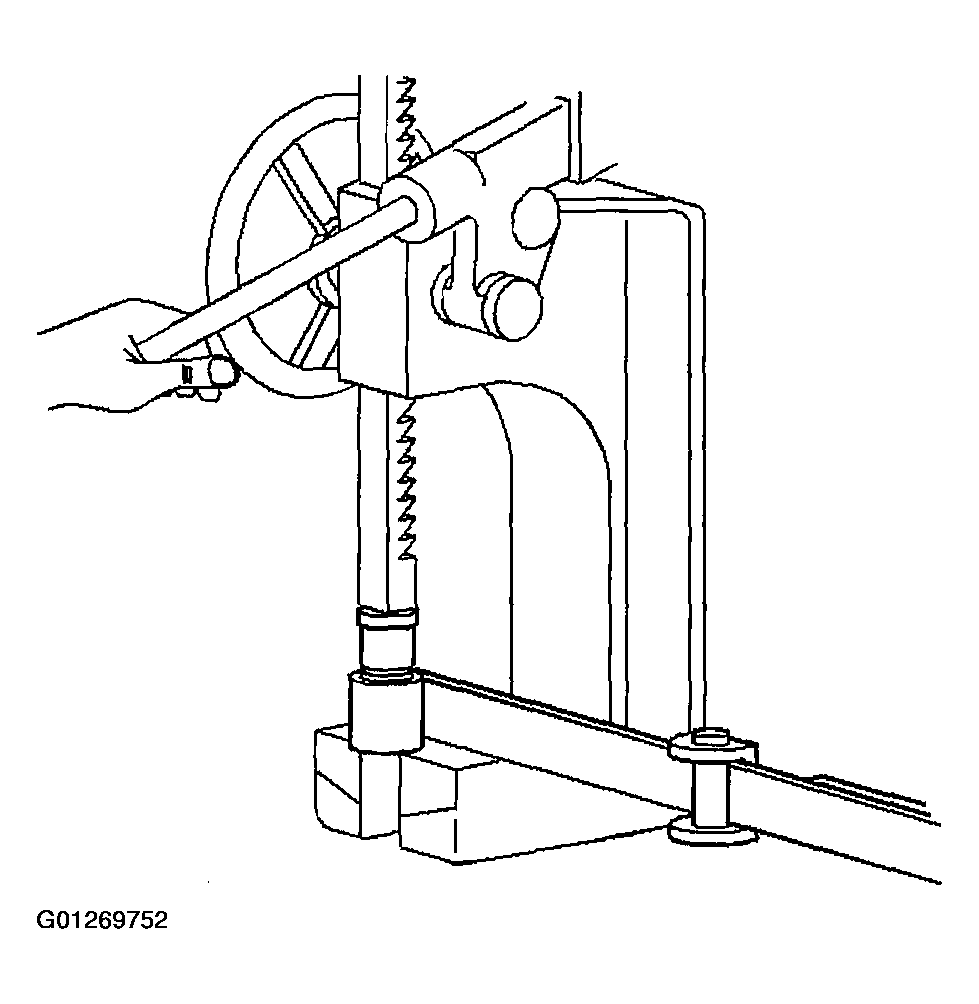

Fig 1: Removing Bushing From Leaf Spring
Courtesy of GENERAL MOTORS CORP.
1. Place the leaf spring in a press.
2. Press the bushing out.
3. Clean the spring bushing bore of any foreign or old bushing material.
