Power Seat Systems Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

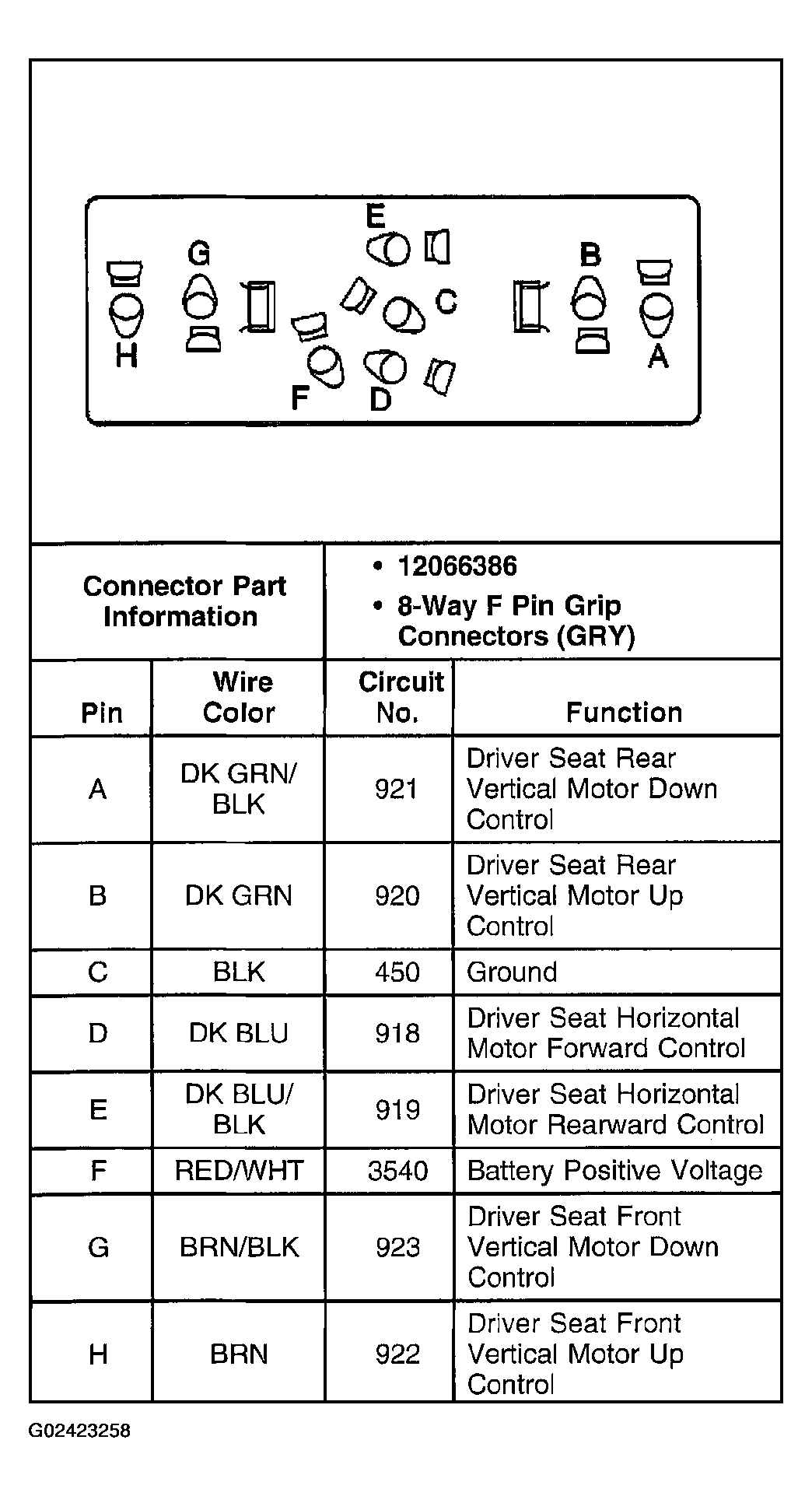

Fig 1: Identifying Seat Adjuster Switch - Driver Connector

Courtesy of GENERAL MOTORS CORP.

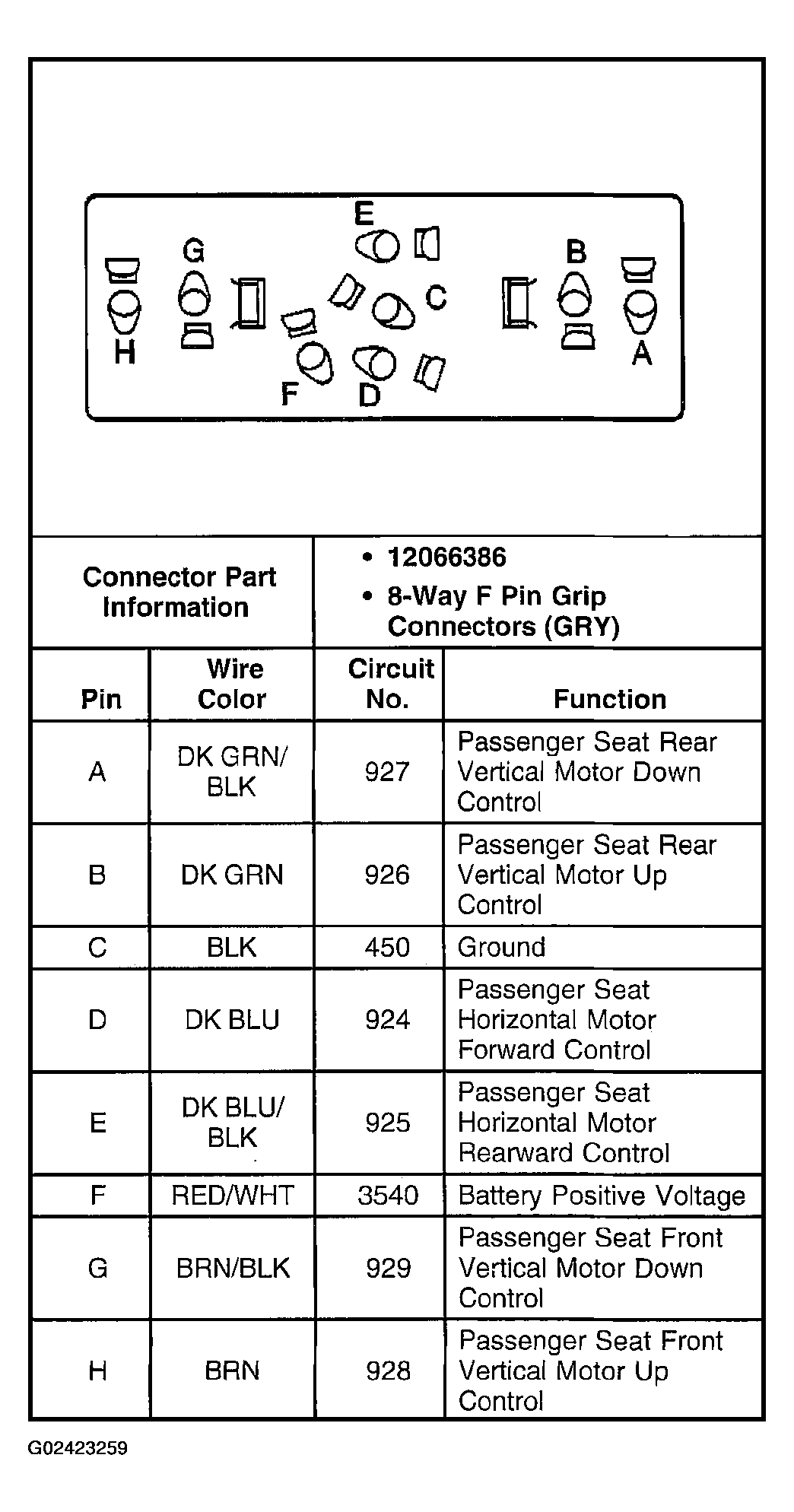

Fig 2: Identifying Seat Adjuster Switch - Front Passenger (AG2) Connector

Courtesy of GENERAL MOTORS CORP.

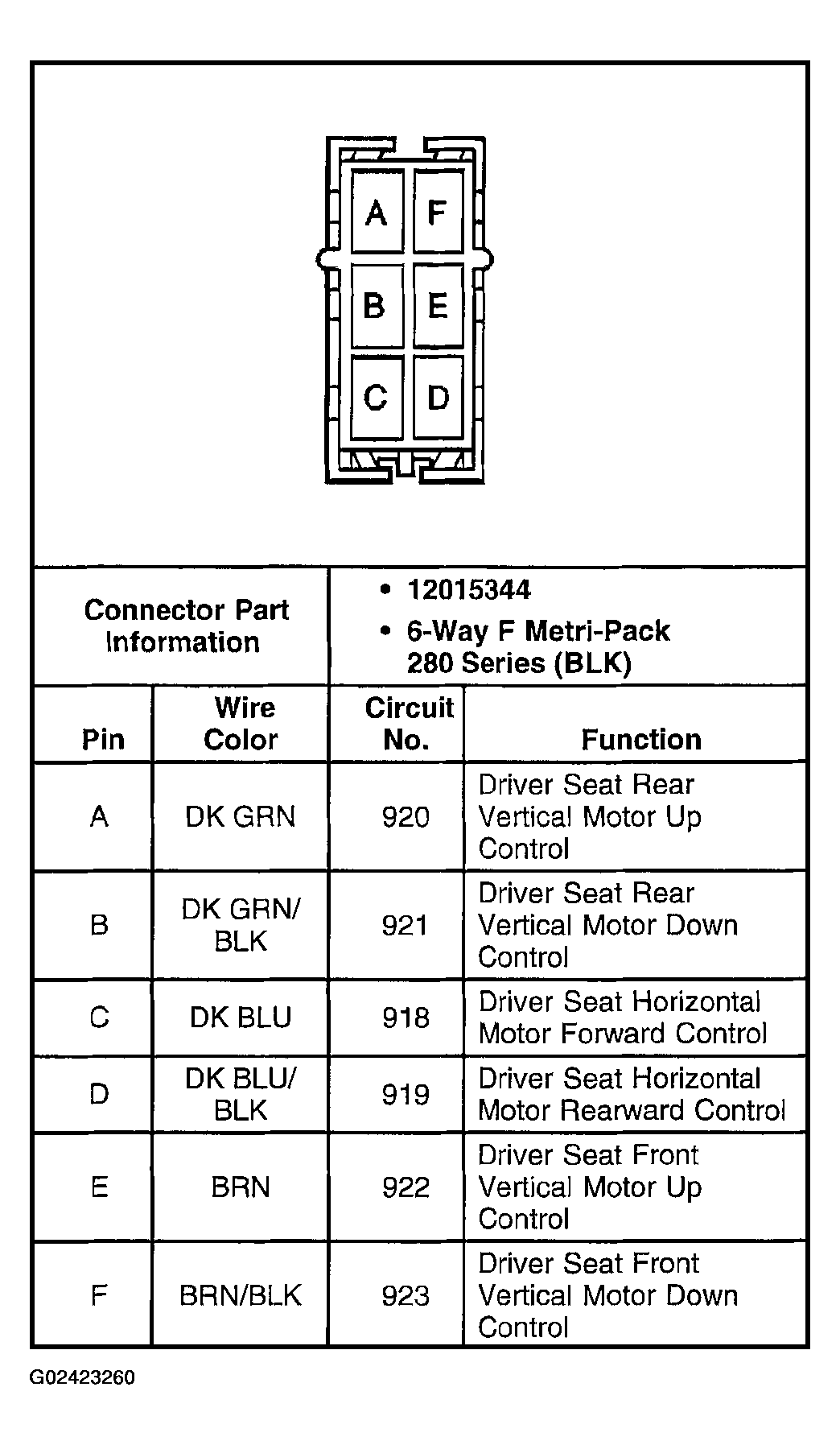

Fig 3: Identifying Seat Motors - Driver Connector

Courtesy of GENERAL MOTORS CORP.

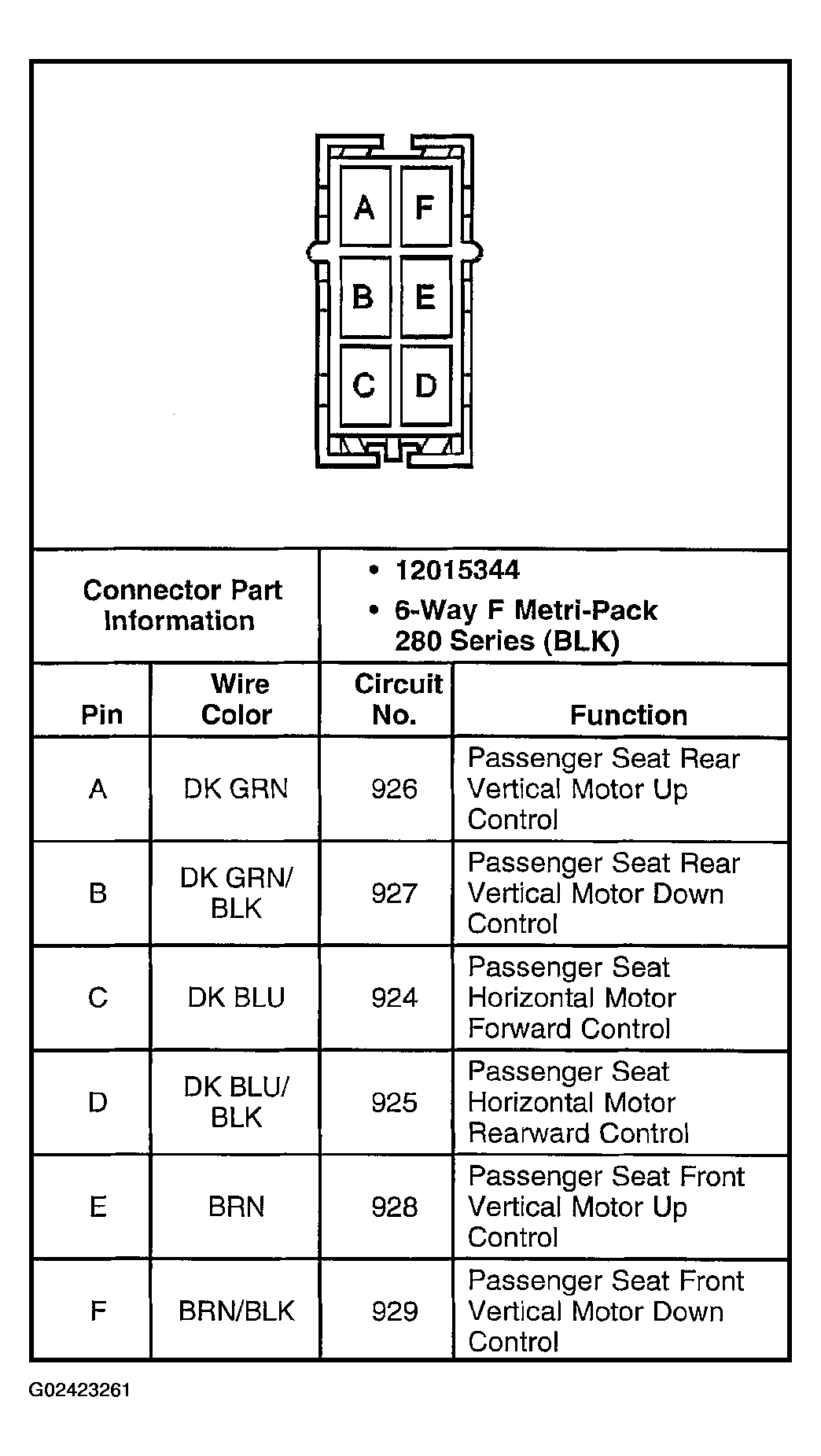

Fig 4: Identifying Seat Motors - Front Passenger (AG2) Connector

Courtesy of GENERAL MOTORS CORP.
