Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

4. If the battery positive voltage and ground circuits of the DLC are functioning properly. The malfunction must be due to the scan tool.

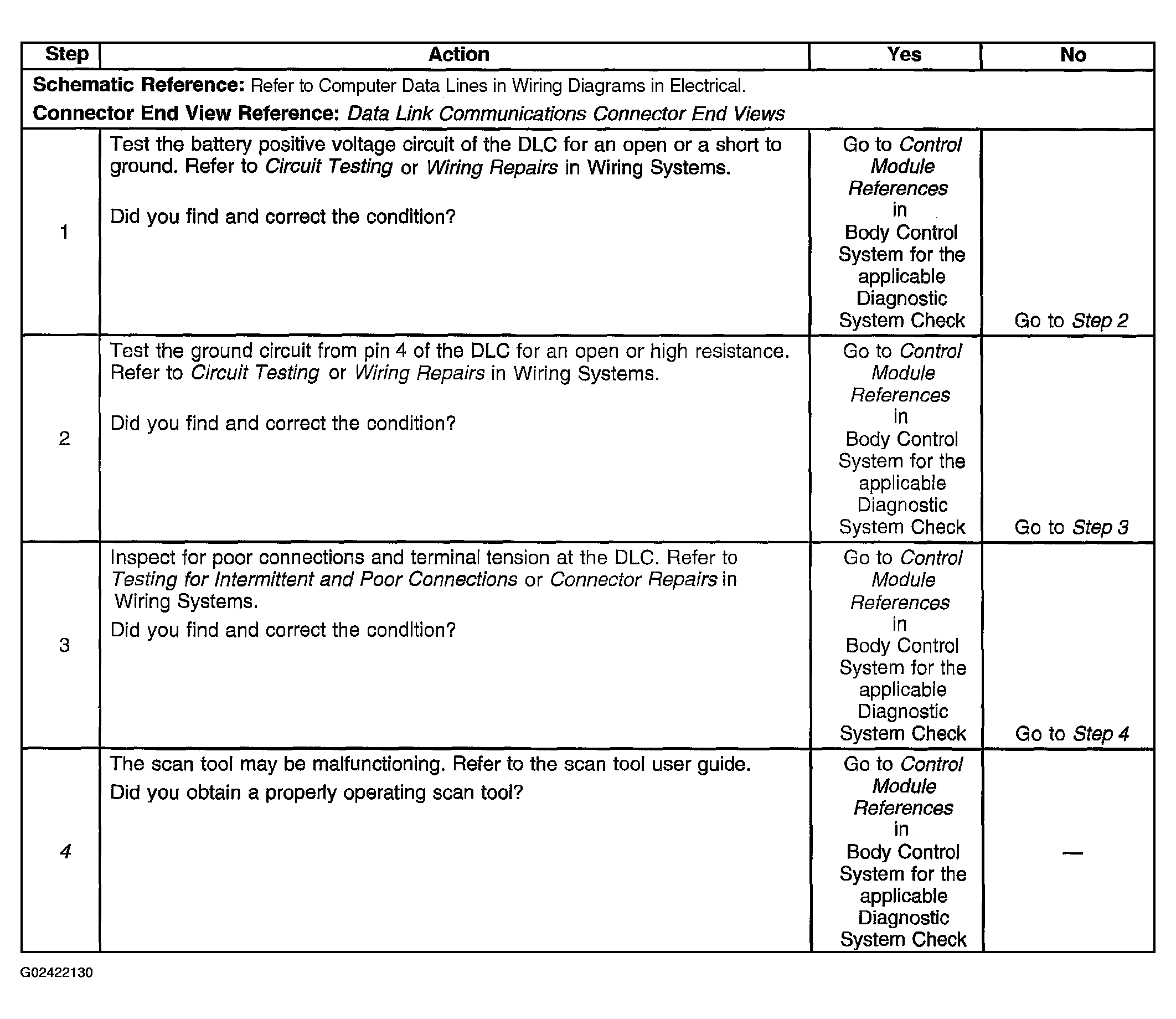

Fig 1: Scan Tool Does Not Power Up

Courtesy of GENERAL MOTORS CORP.
