Entertainment Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

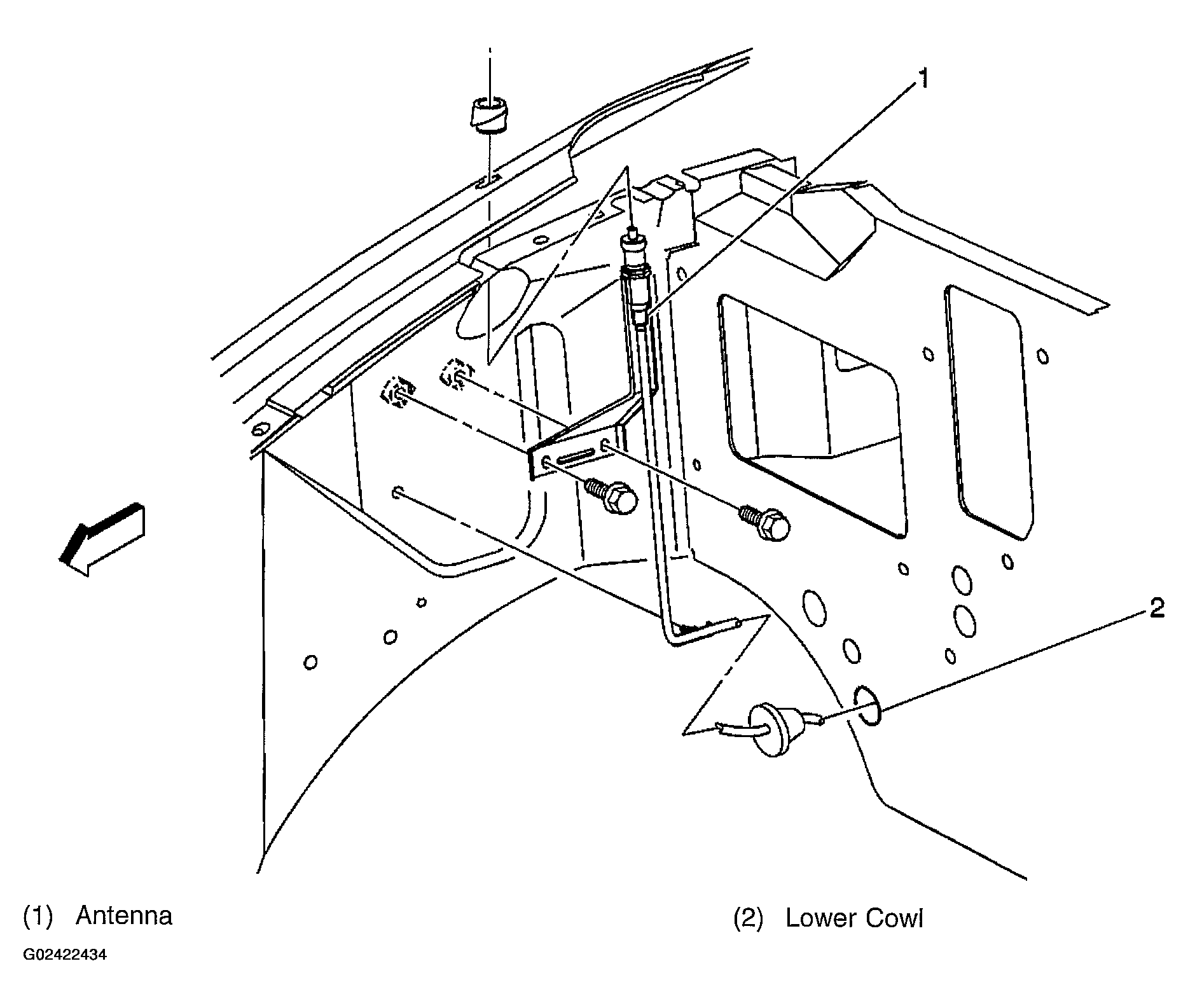

Fig 1: Locating Antenna (RR Of Engine Compartment)

G02422434

Courtesy of GENERAL MOTORS CORP.

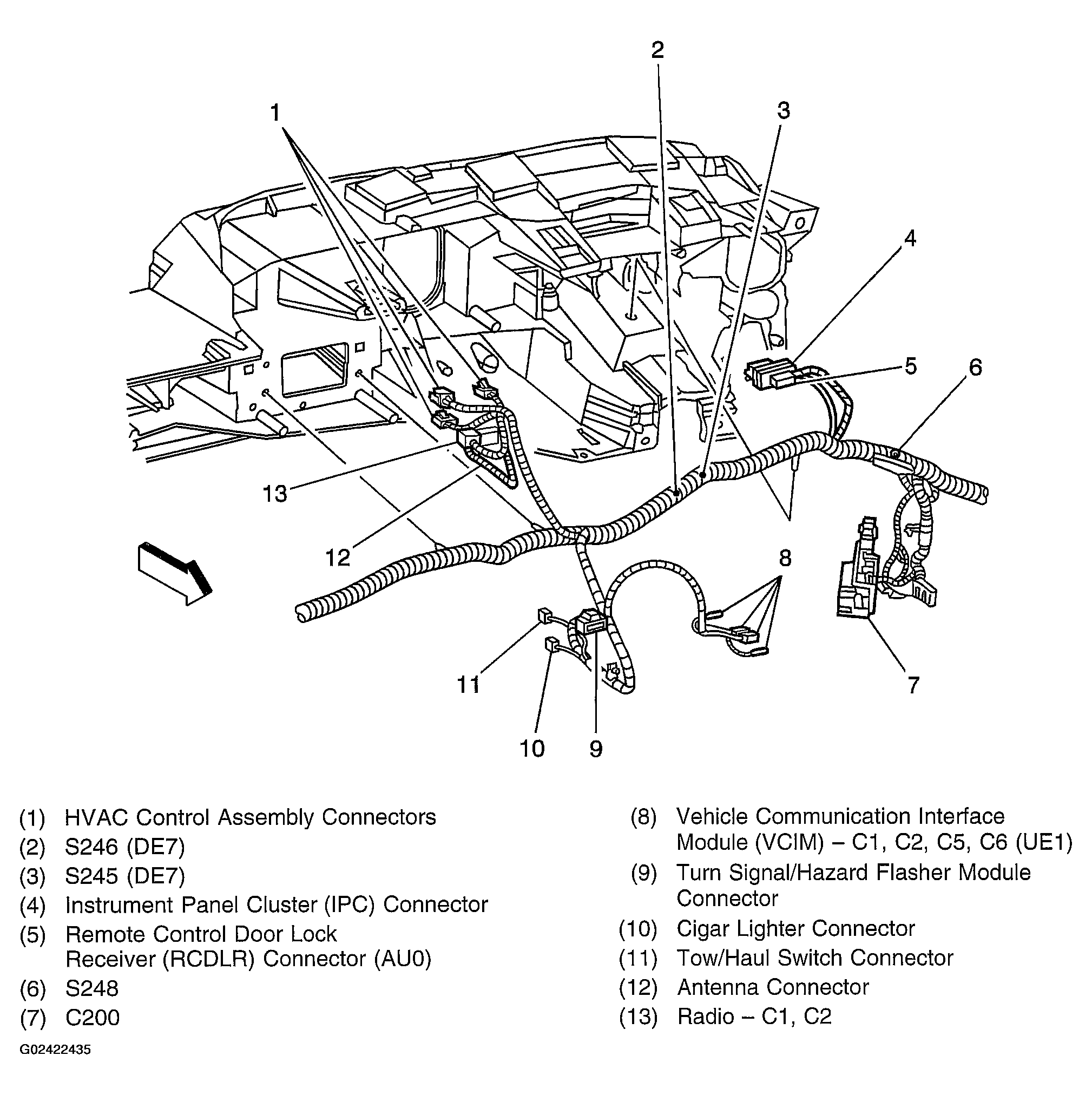

Fig 2: I/P Harness Routing - Center Of I/P

G02422435

Courtesy of GENERAL MOTORS CORP.

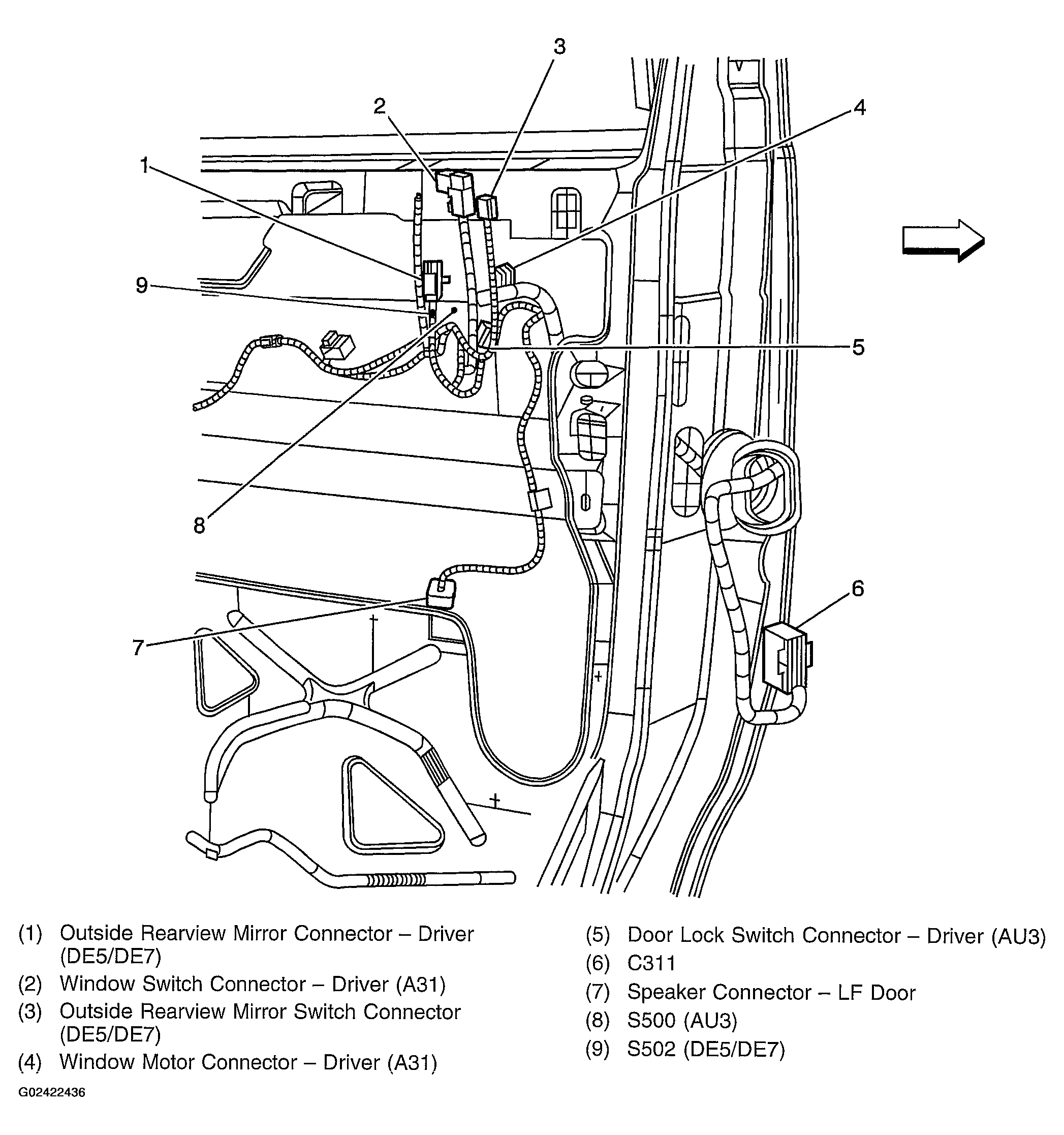

Fig 3: Driver Door Harness Routing

G02422436

Courtesy of GENERAL MOTORS CORP.

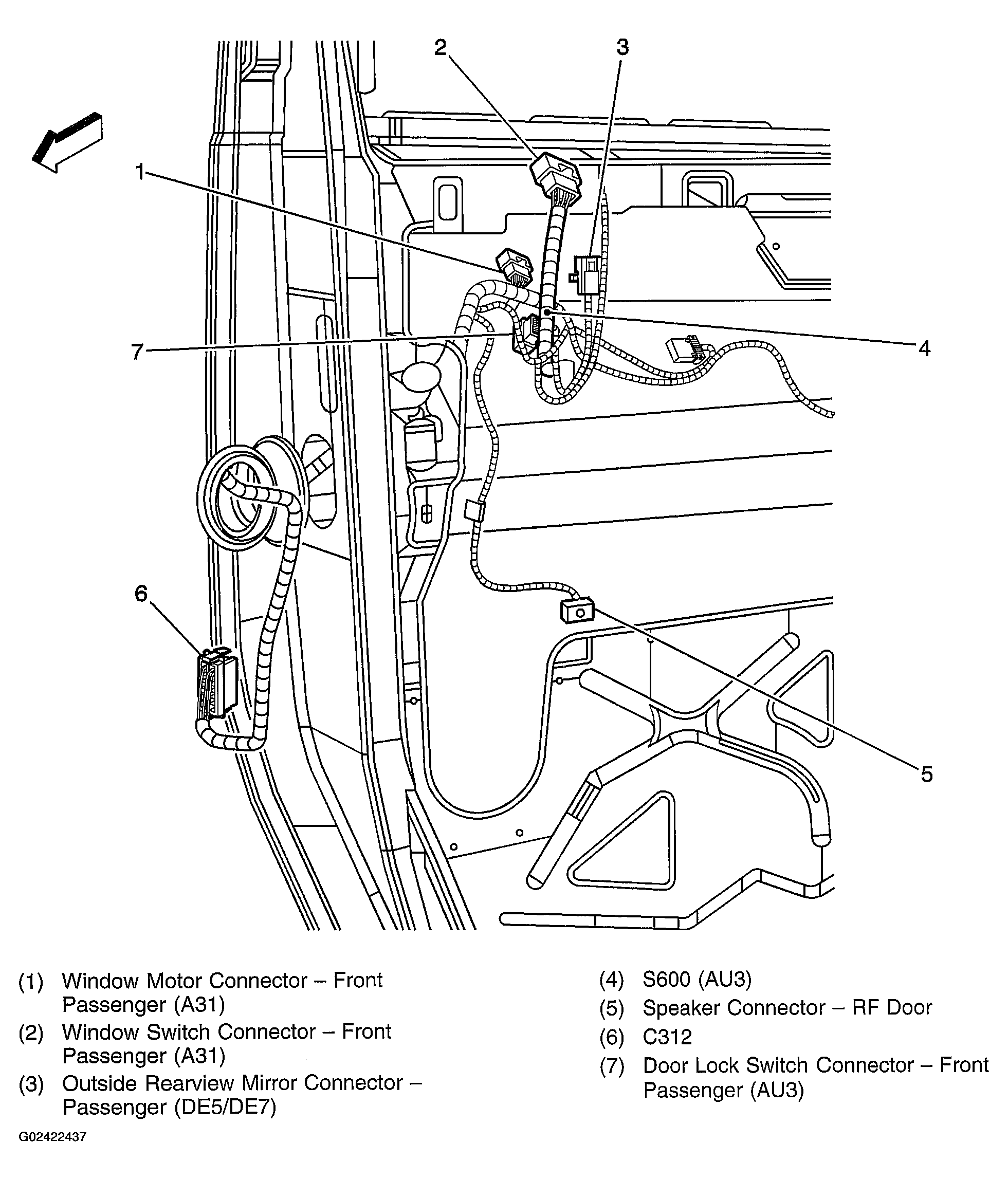

Fig 4: Passenger Door Harness Routing

G02422437

Courtesy of GENERAL MOTORS CORP.

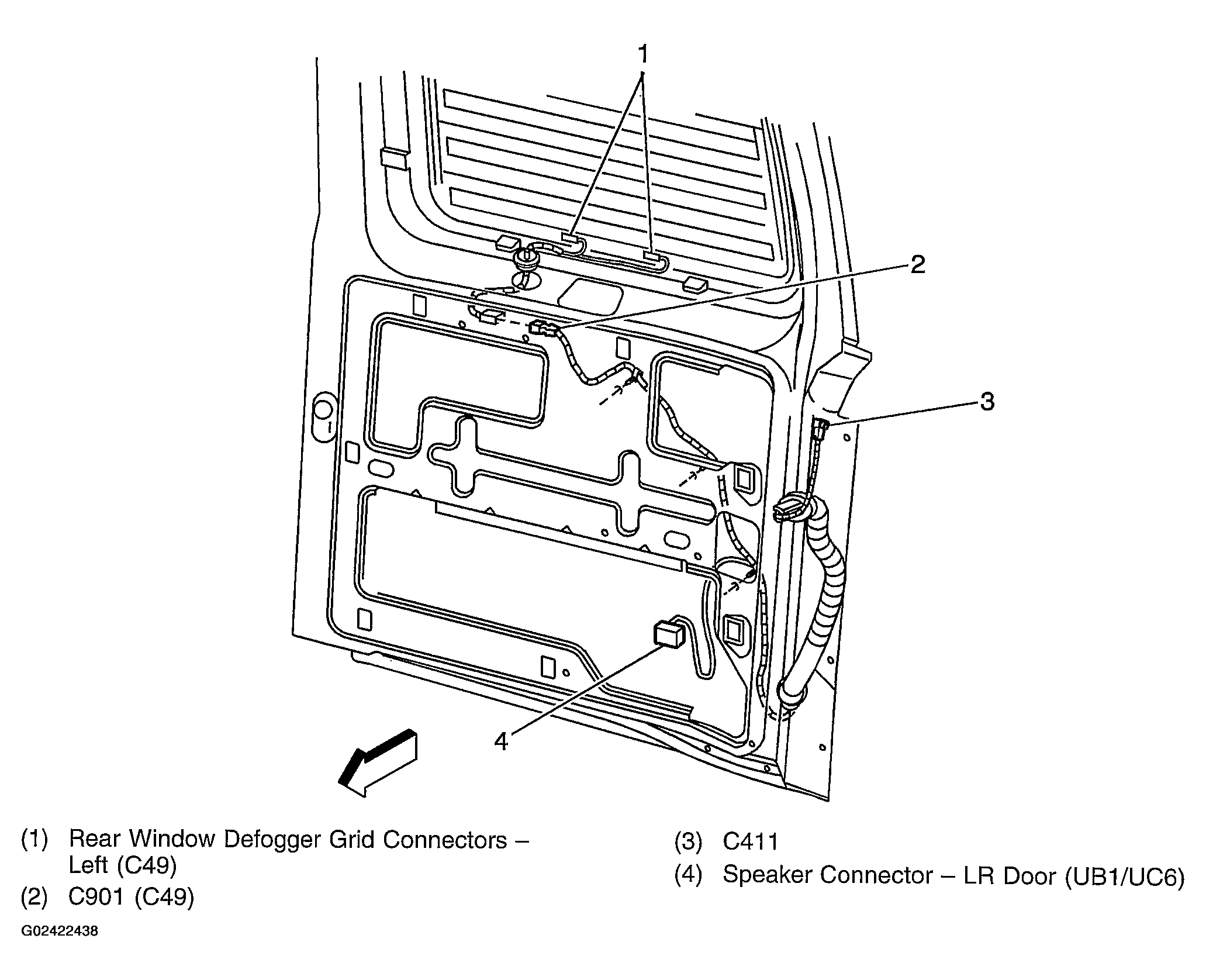

Fig 5: Left Rear Cargo Door Harness Routing (Passenger/Cargo)

G02422438

Courtesy of GENERAL MOTORS CORP.

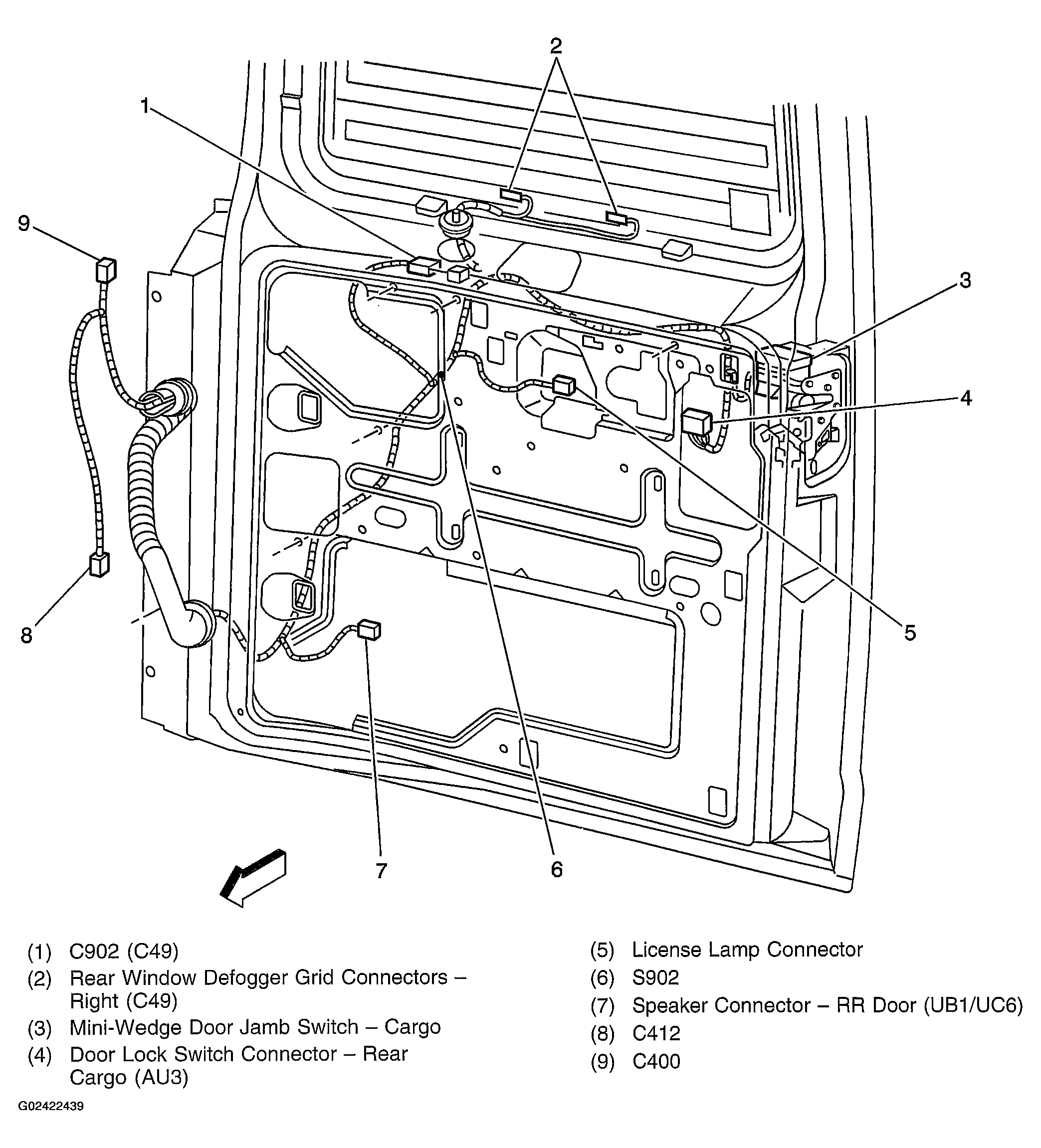

Fig 6: Right Rear Cargo Door Harness Routing (Passenger/Cargo)

G02422439

Courtesy of GENERAL MOTORS CORP.

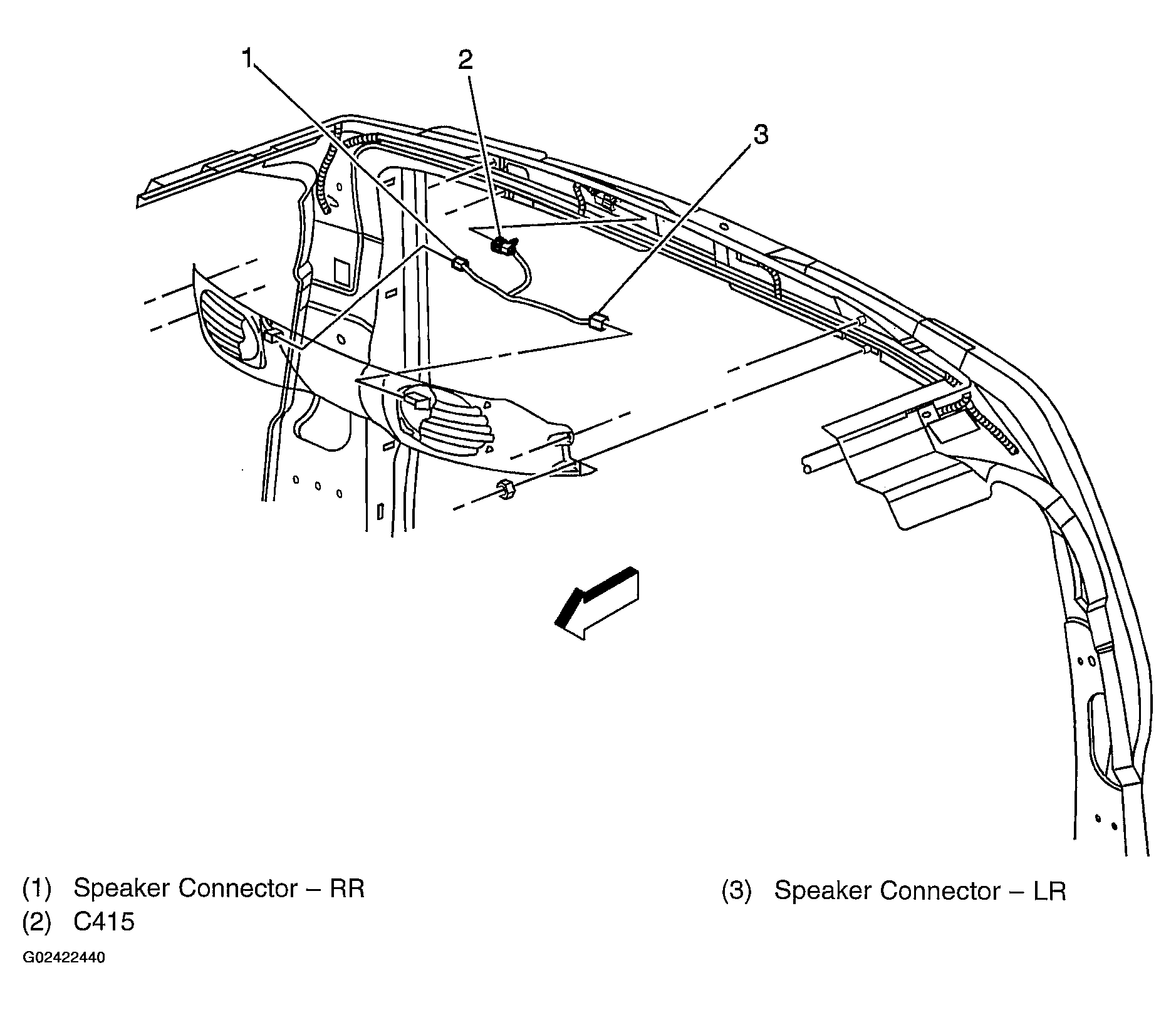

Fig 7: Upper Rear Speakers Harness Routing (Passenger/Cargo)

G02422440

Courtesy of GENERAL MOTORS CORP.
