Entertainment Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

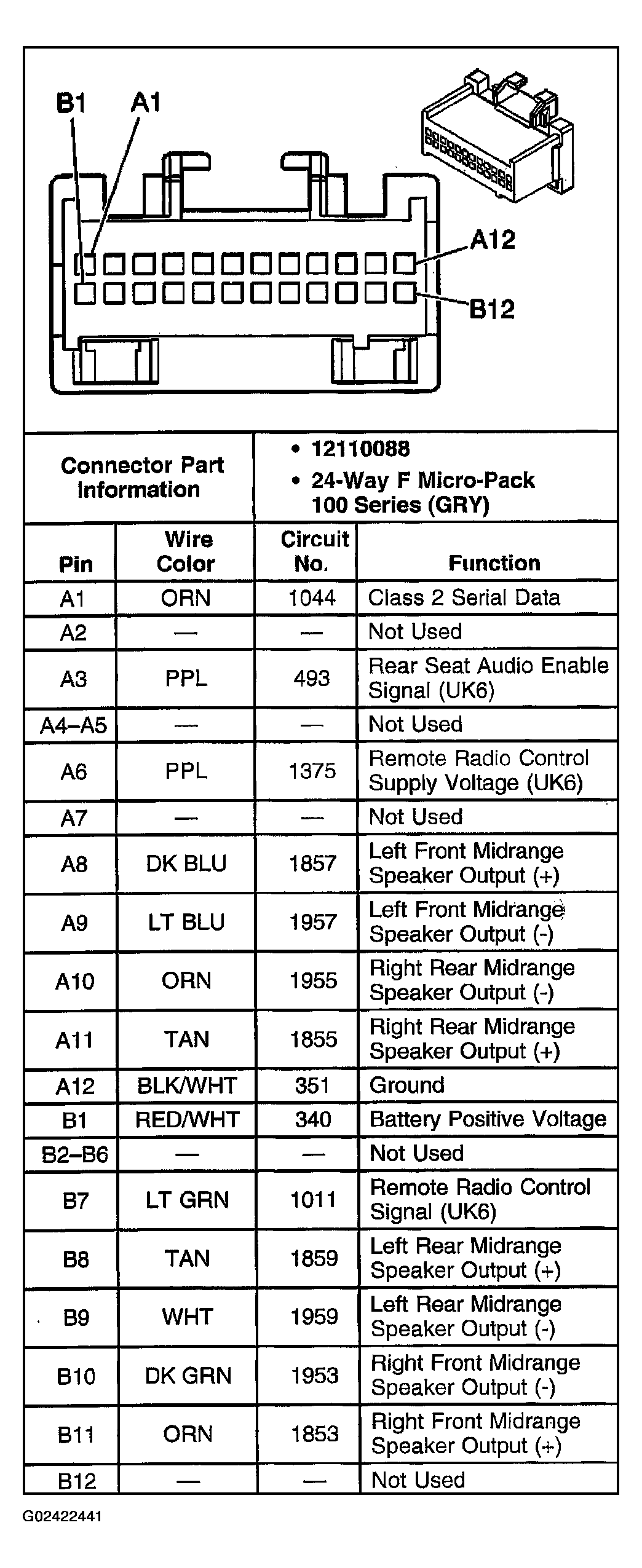

Fig 1: Radio Connector End View - C1

G02422441

Courtesy of GENERAL MOTORS CORP.

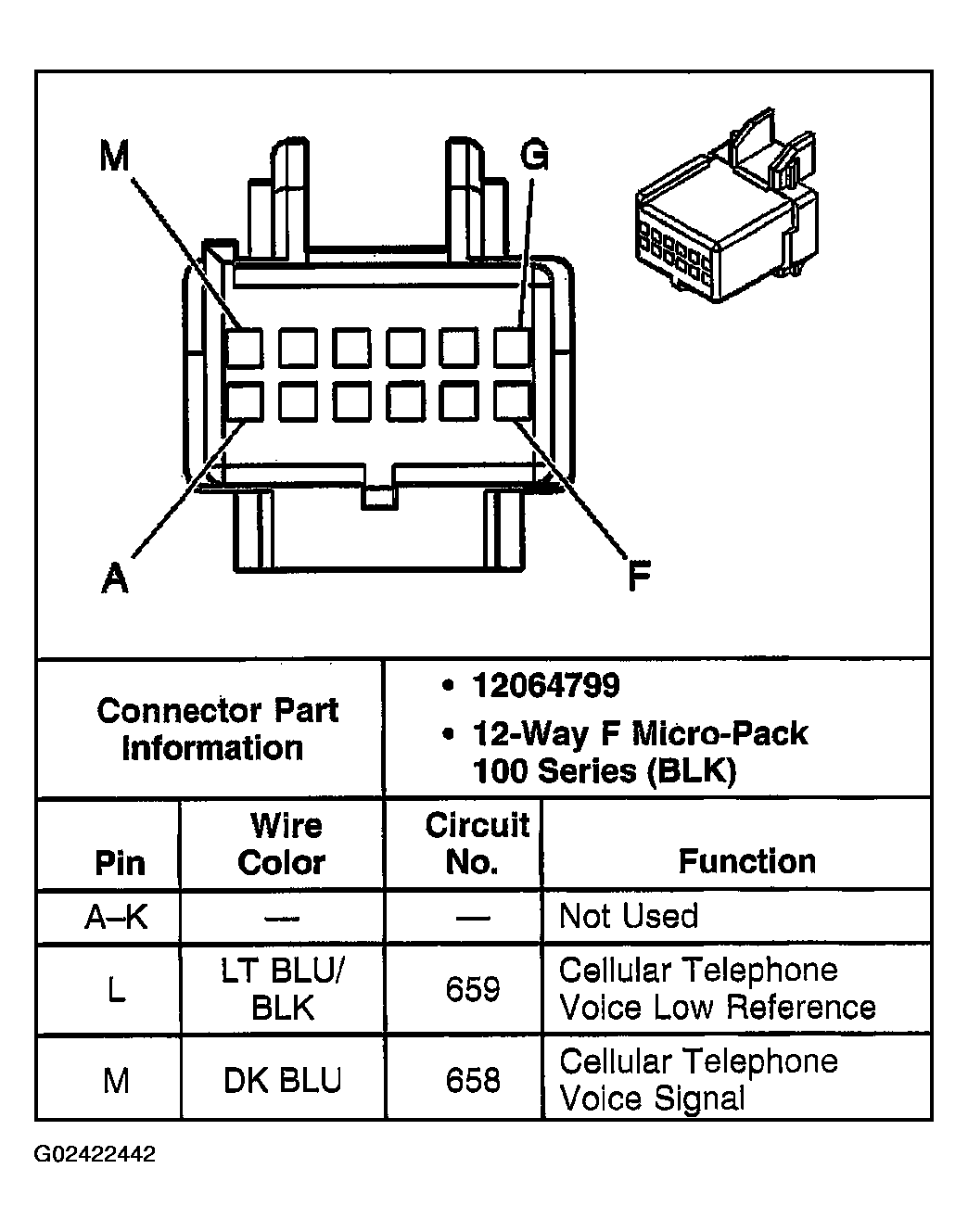

Fig 2: Radio Connector End View - C2 (UE1 RPO Code)

G02422442

Courtesy of GENERAL MOTORS CORP.

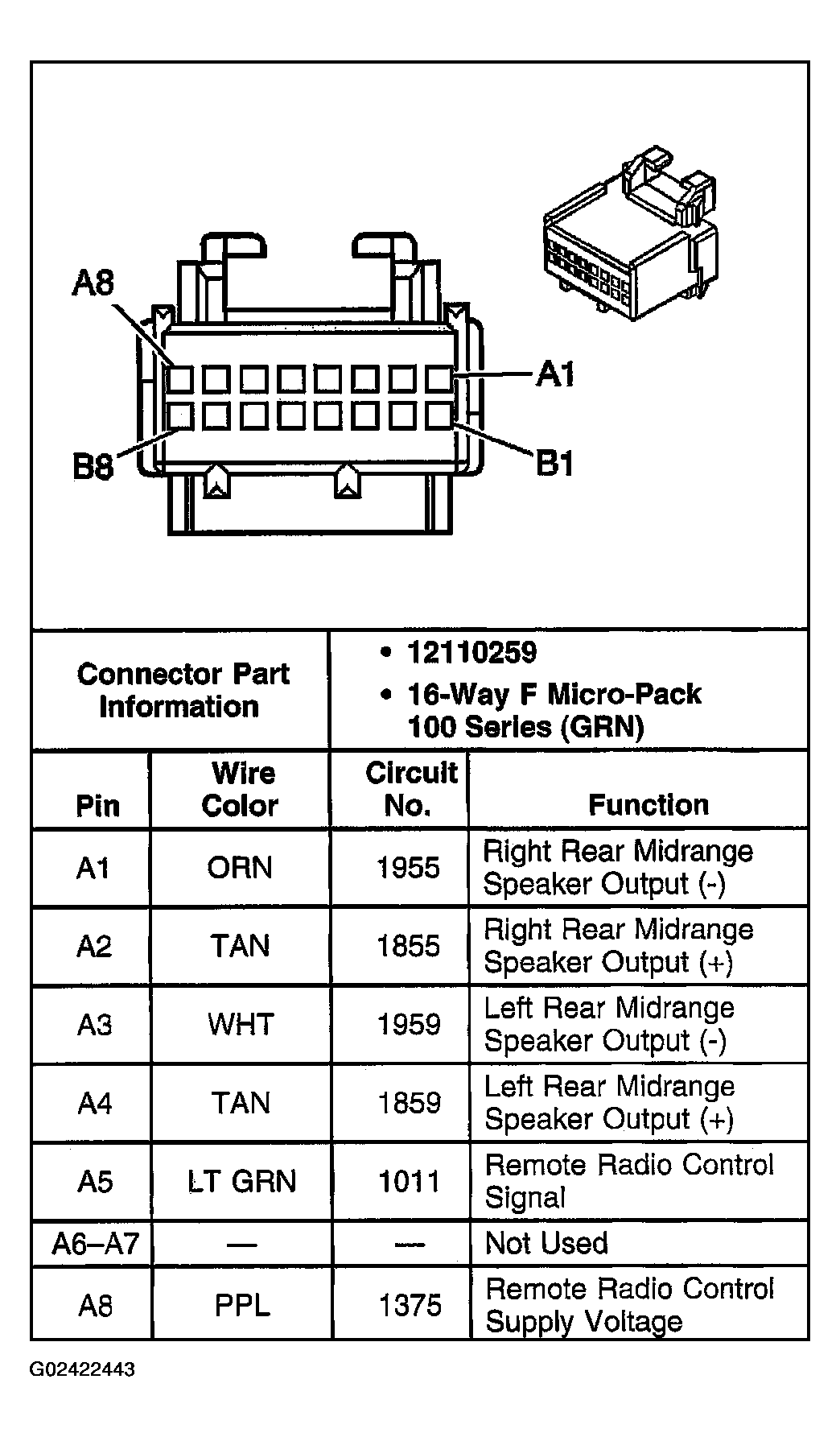

Fig 3: Rear Seat Audio (RSA) Control (UK6) Connector End View (1 Of 2)

G02422443

Courtesy of GENERAL MOTORS CORP.

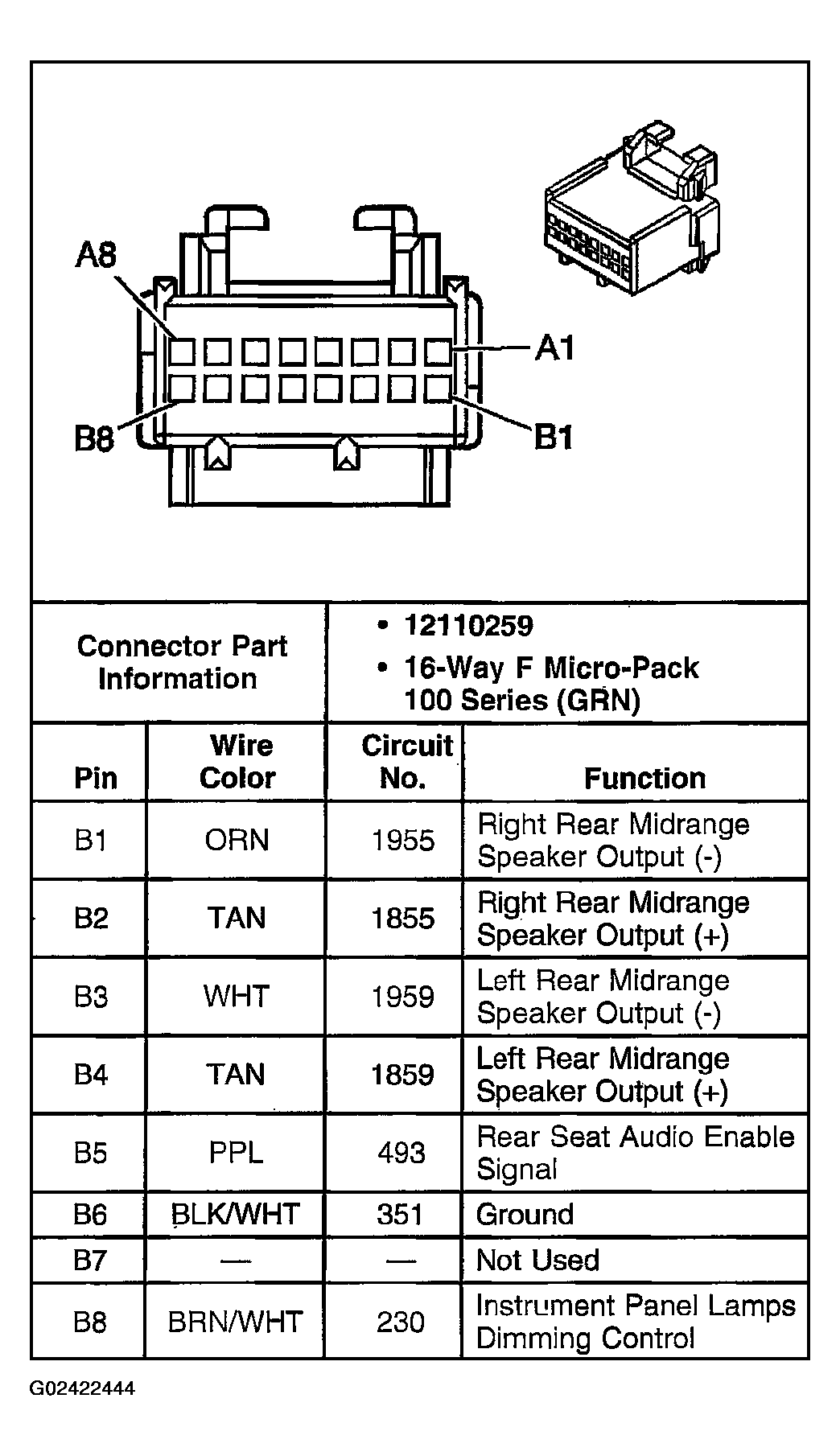

Fig 4: Rear Seat Audio (RSA) Control (UK6 RPO Code) Connector End View (2 Of 2)

G02422444

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speaker Connector End View - LF Door

G02422445

Courtesy of GENERAL MOTORS CORP.

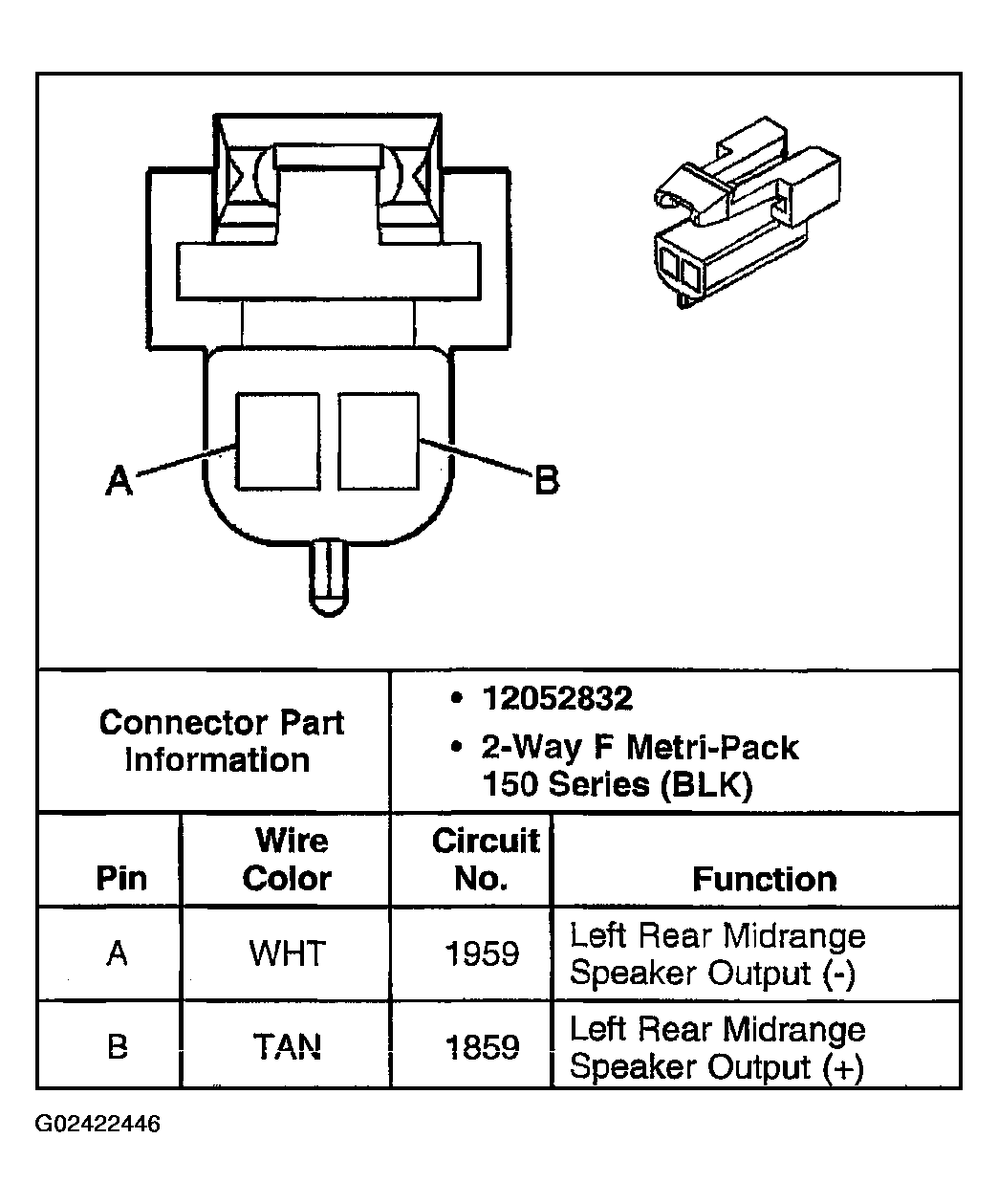

Fig 6: Speaker Connector End View - LR Door (UB1/UC6 RPO Code)

G02422446

Courtesy of GENERAL MOTORS CORP.

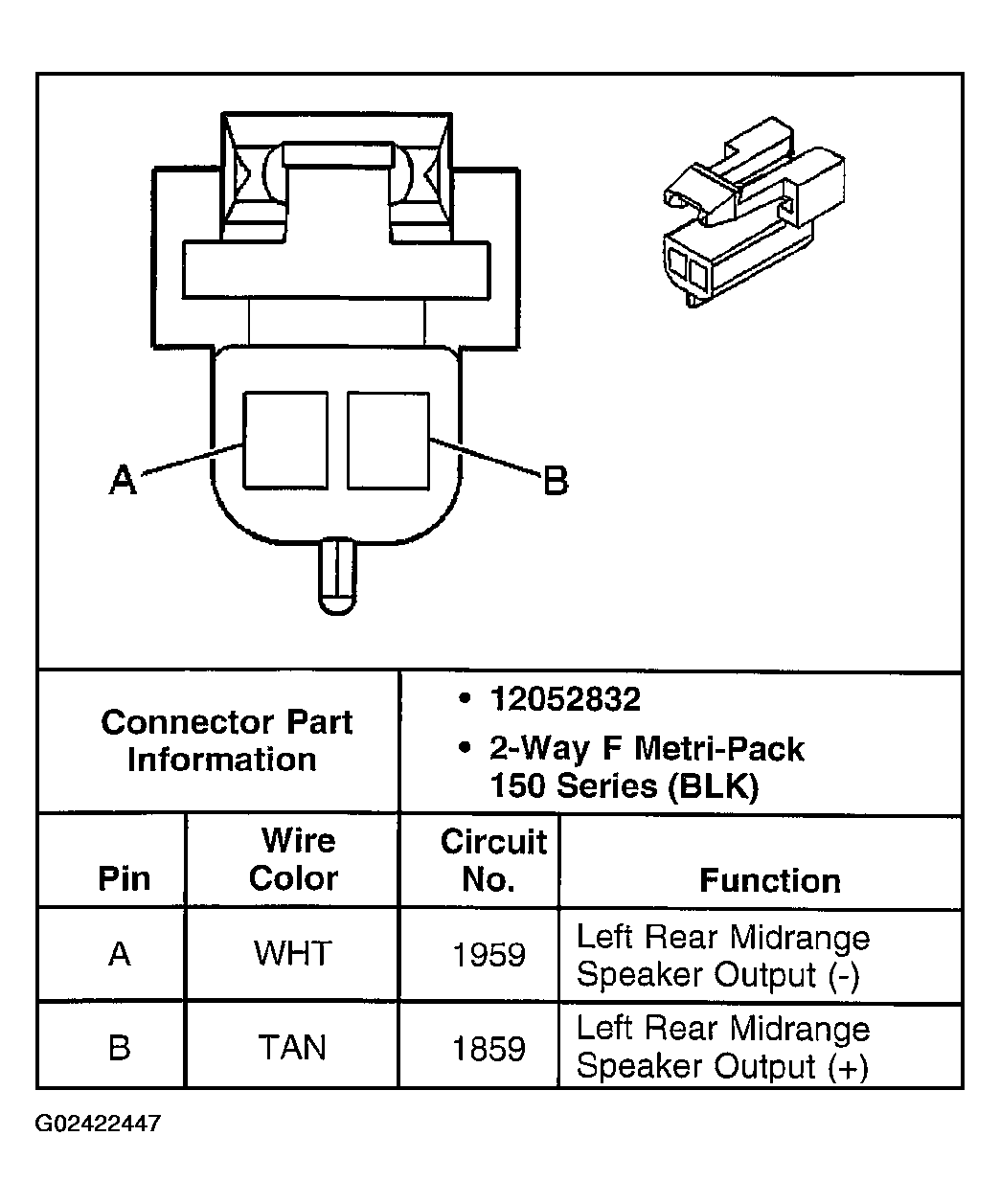

Fig 7: Speaker Connector End View - LR

G02422447

Courtesy of GENERAL MOTORS CORP.

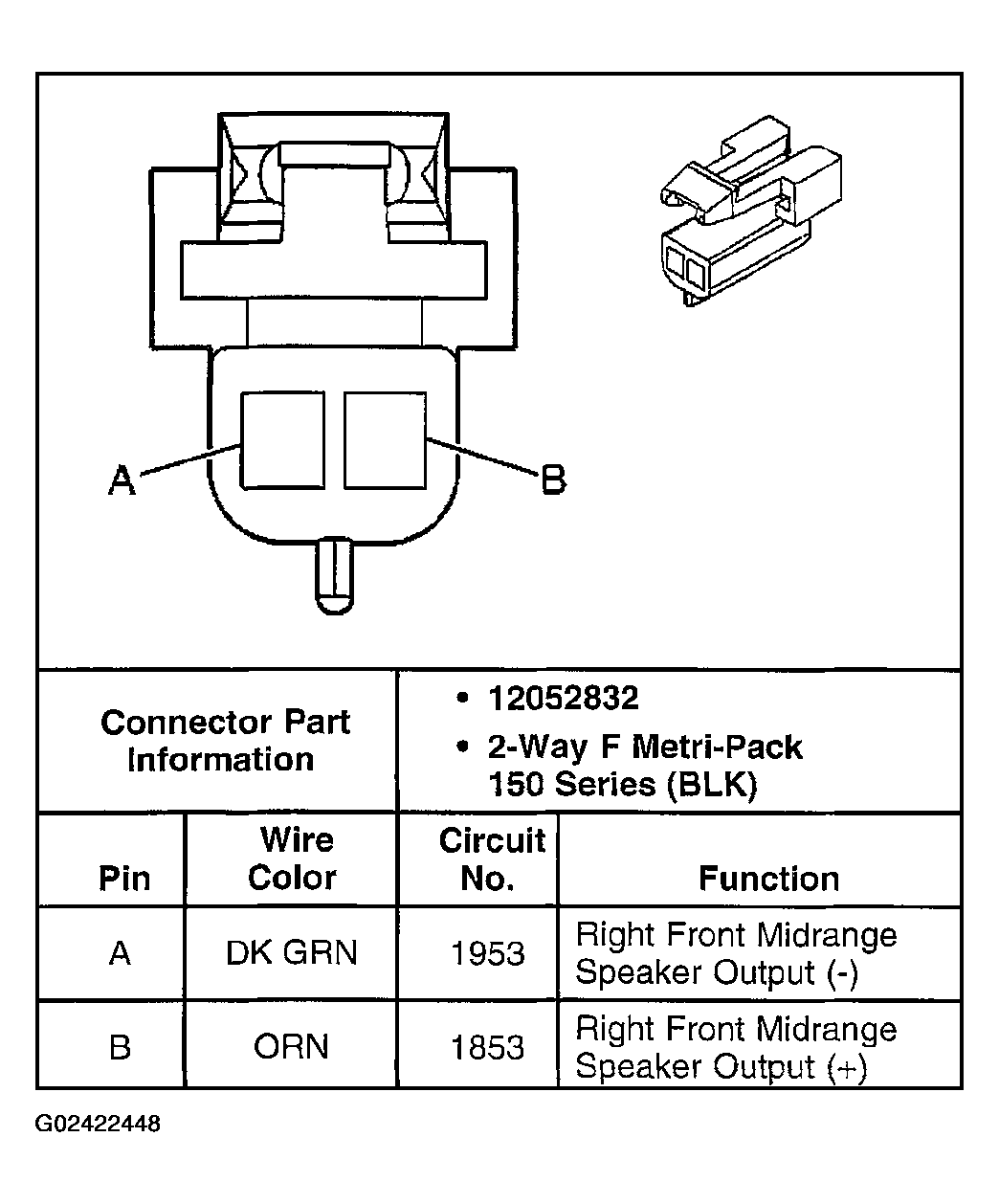

Fig 8: Speaker Connector End View - RF Door

G02422448

Courtesy of GENERAL MOTORS CORP.

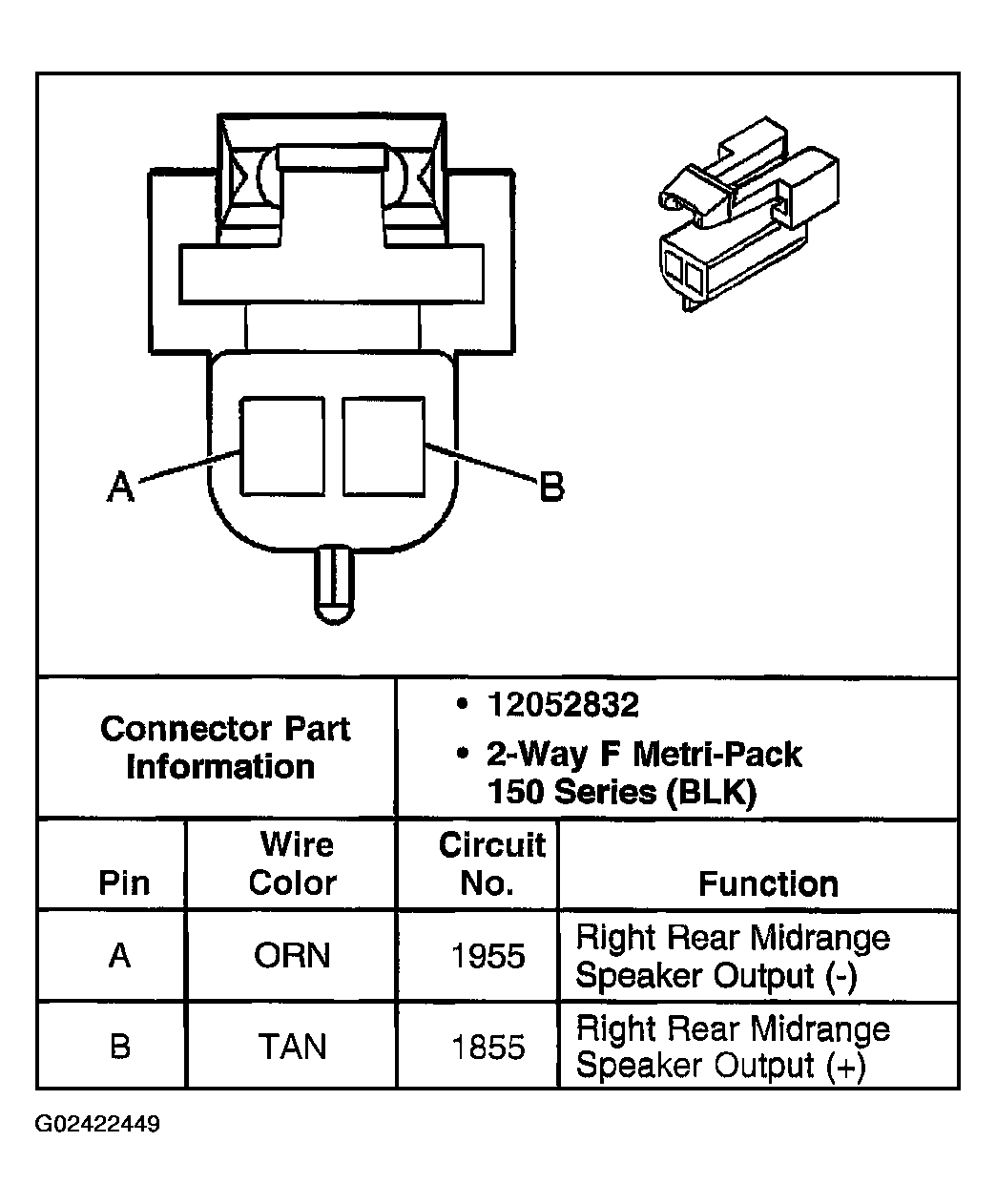

Fig 9: Speaker Connector End View - RR Door (UB1/UC6 RPO Code)

G02422449

Courtesy of GENERAL MOTORS CORP.

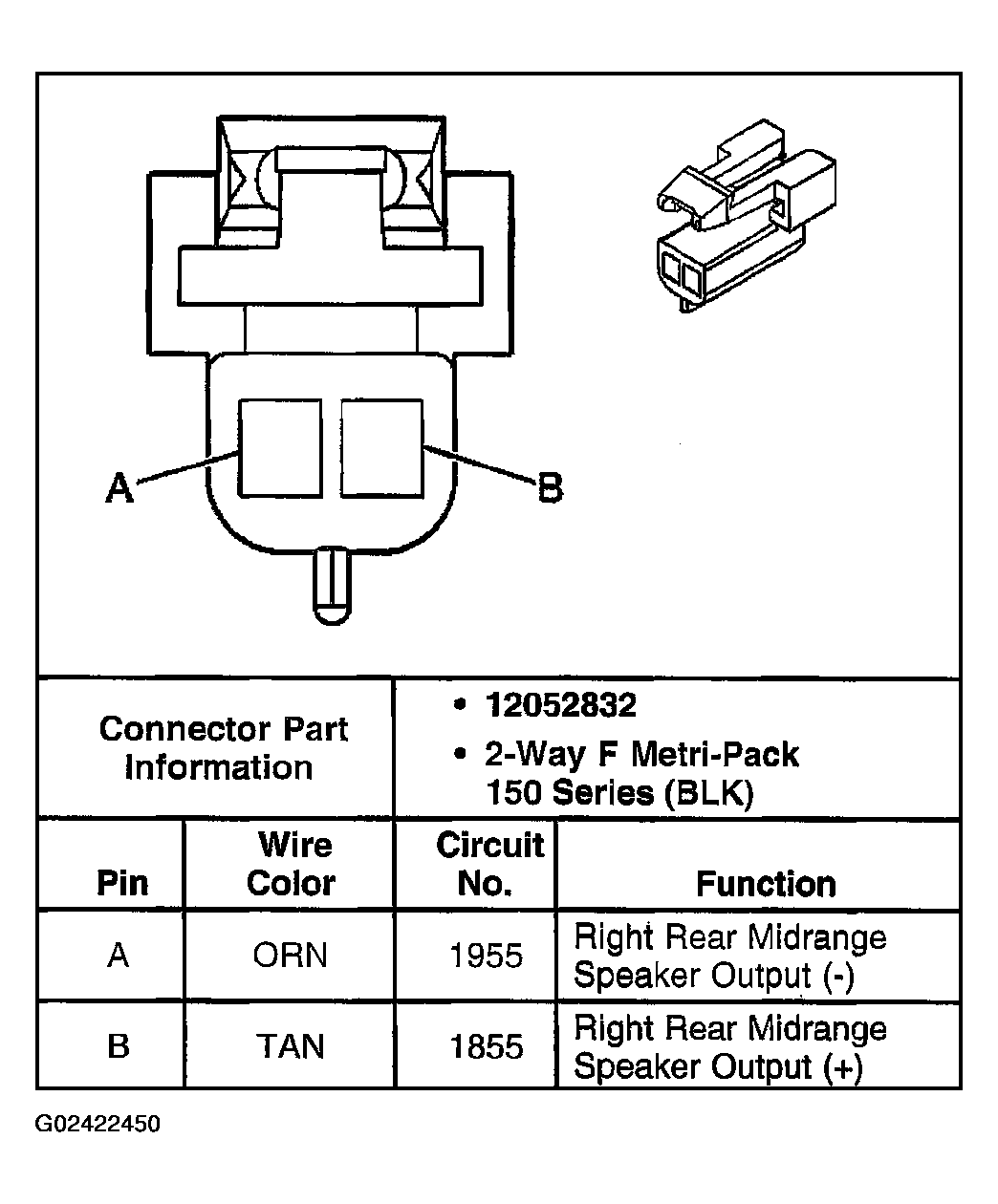

Fig 10: Speaker Connector End View - RR

G02422450

Courtesy of GENERAL MOTORS CORP.
