Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender extension (3) to the body.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2) in order to retain the front fender extension (3) to the body.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

  3. Install the bolt in order to retain the front fender extension to the rocker panel.

    Tighten

    Tighten the bolt to the rocker panel to 2 N.m (18 lb in).

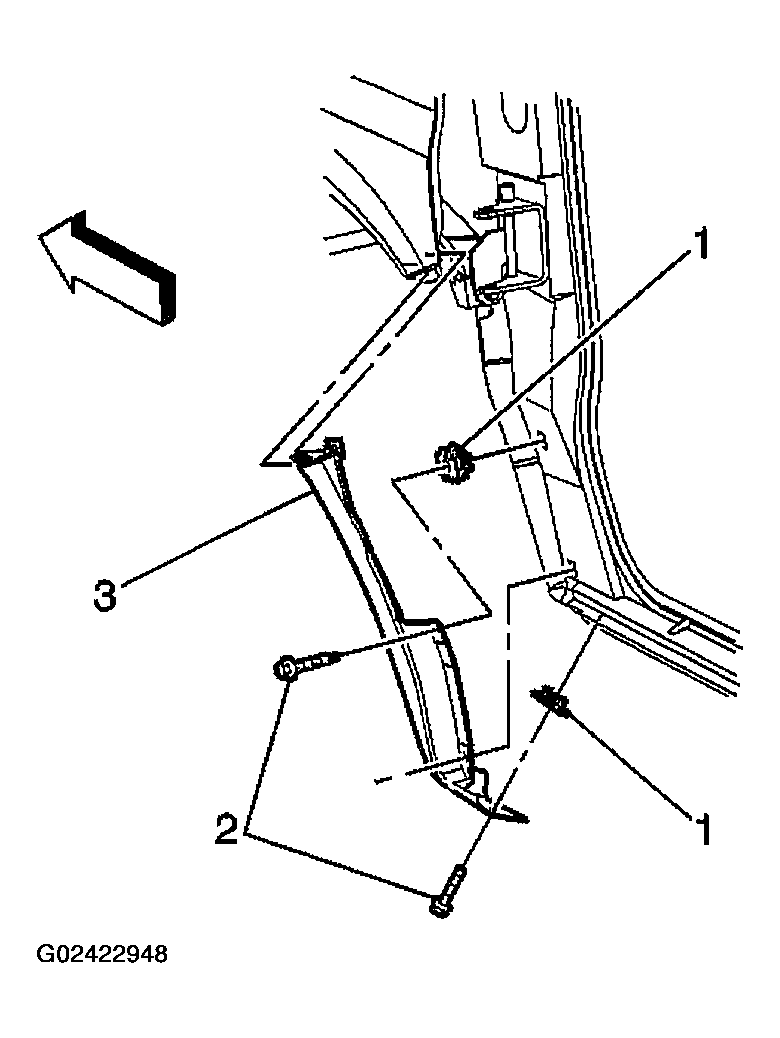

    Fig 1: Installing Front Fender Extension
    G02422948Courtesy of GENERAL MOTORS CORP.
