Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, install the hood to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the hinge pivot bolt (4) and nuts (2) to the hinge (1).

    Tighten

    Tighten the hood hinge pivot bolts and nuts to 25 N.m (18 lb ft).

  3. Install the underhood lamp and the harness to the hood. Refer to UNDERHOOD LAMP REPLACEMENT .
  4. Install air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
  5. Install the wiper arms to the vehicle. Refer to WIPER ARM REPLACEMENT .

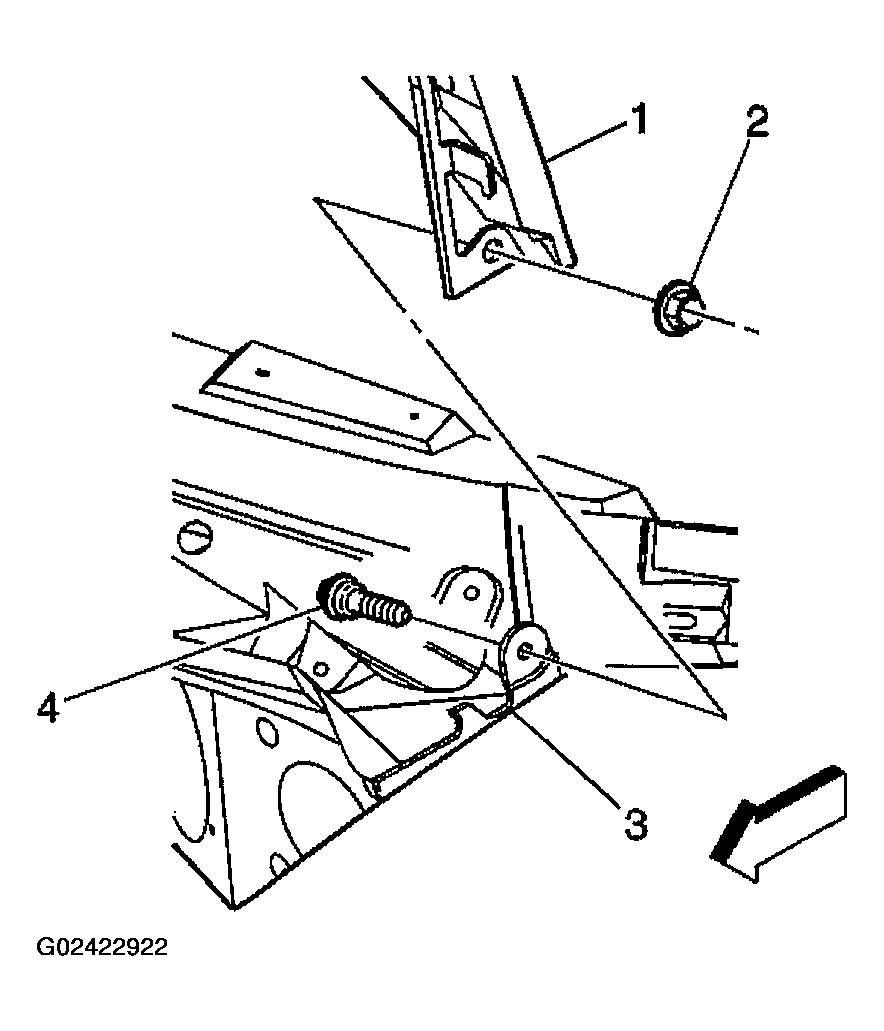

    Fig 1: Installing Hinge Pivot Bolt & Nuts To Hinge
    G02422922Courtesy of GENERAL MOTORS CORP.
