Steering Gear And Linkage Assembly: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

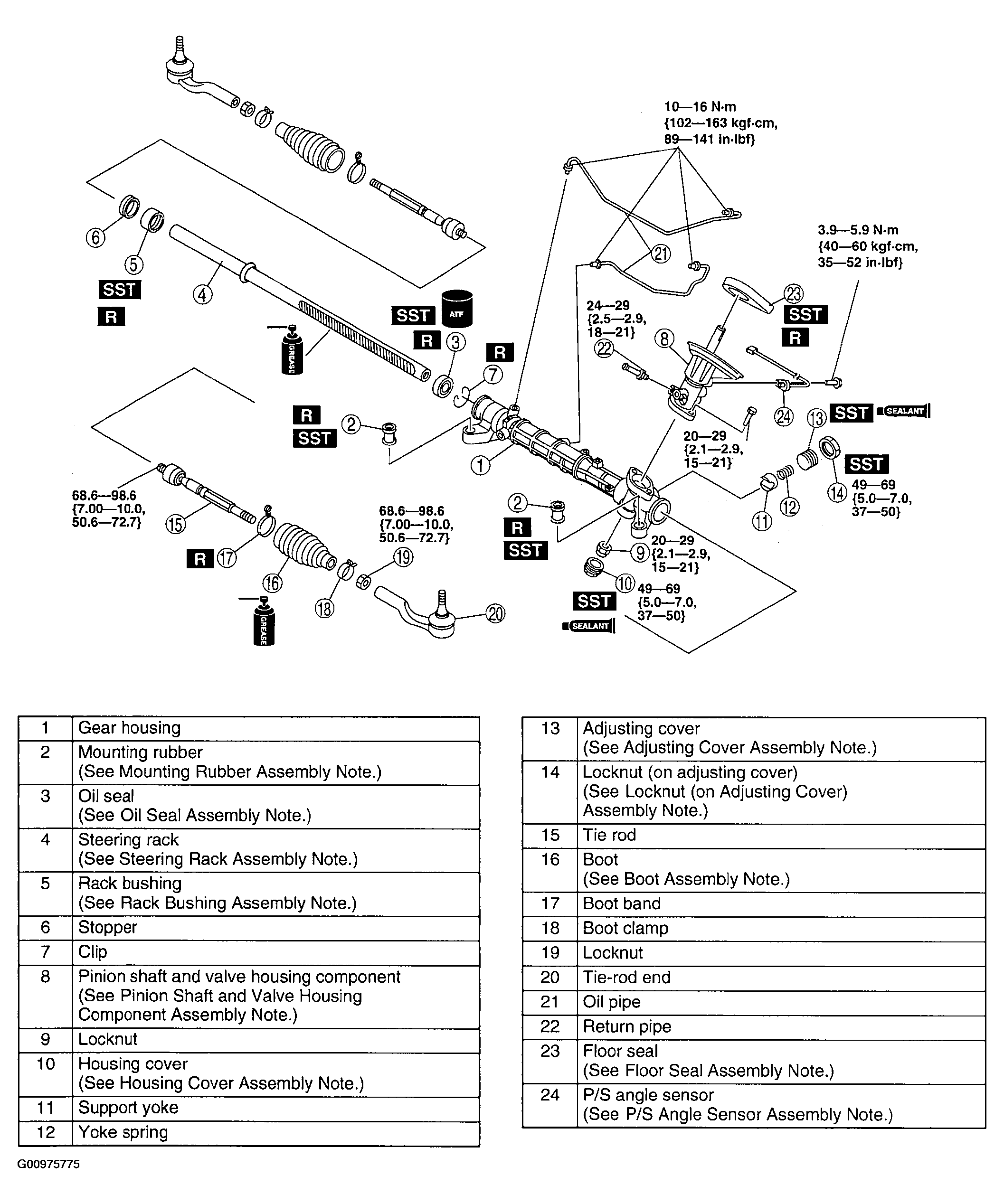

- Assemble in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
