Steering Wheel And Column Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings before handling the air bag module. See AIR BAG SAFETY PRECAUTIONS .
  1. Remove in the order indicated in the figure.
  2. Install in the reverse order of removal.

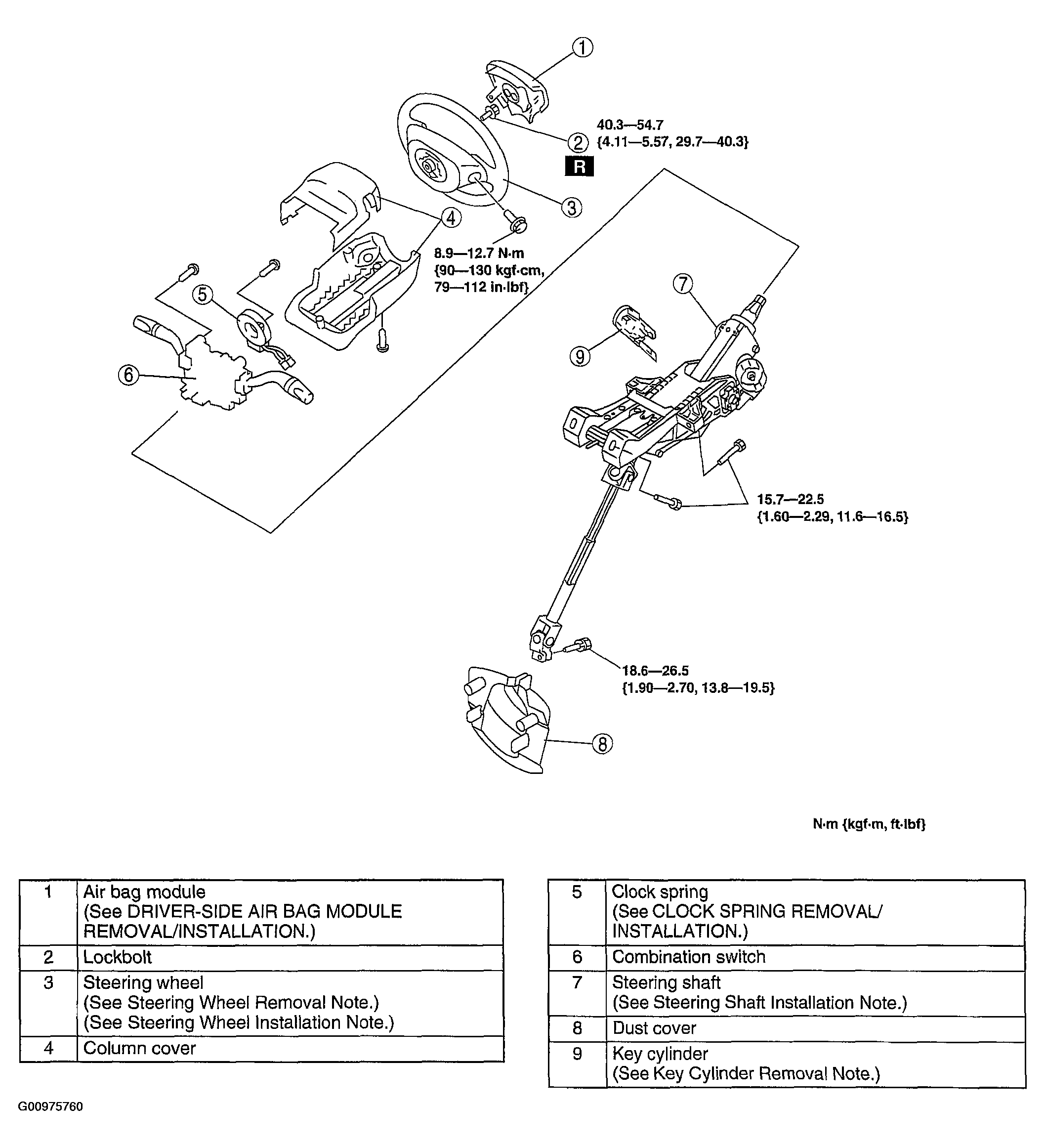

    Fig 1: Steering Wheel & Column Assembly With Torque Specifications
    G00975760Courtesy of MAZDA MOTORS CORP.
