Wheel Hub Component Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install a new wheel hub component using the SSTs.

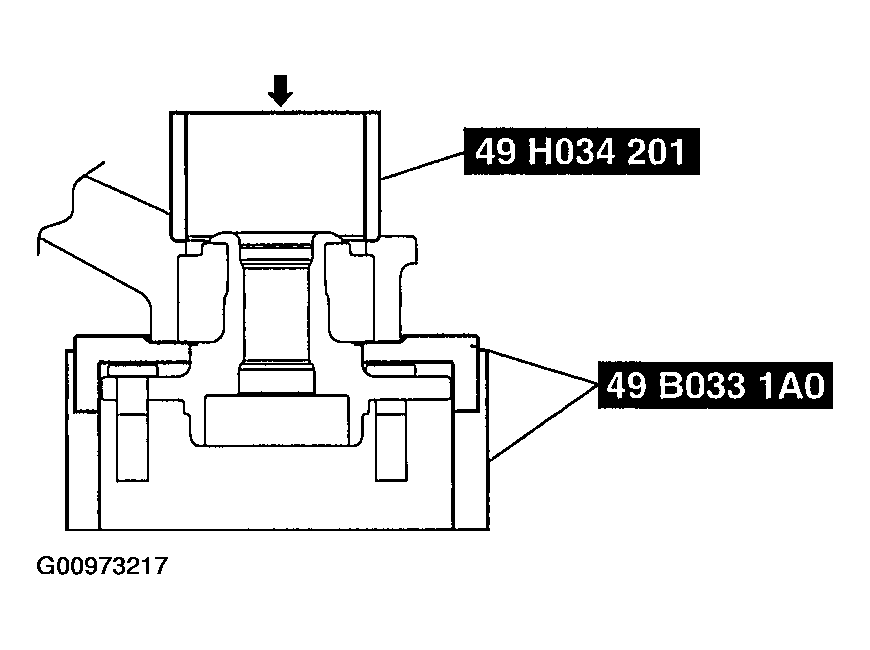

Fig 1: Installing New Wheel Hub Component Using Special Tools
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- To prevent damage to the wheel hub component, install the SST to the bearing outer race firmly.
