Front Fog Light Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the front fog light switch terminals is as indicated in the table.
- If not as indicated in the table, replace the light switch.

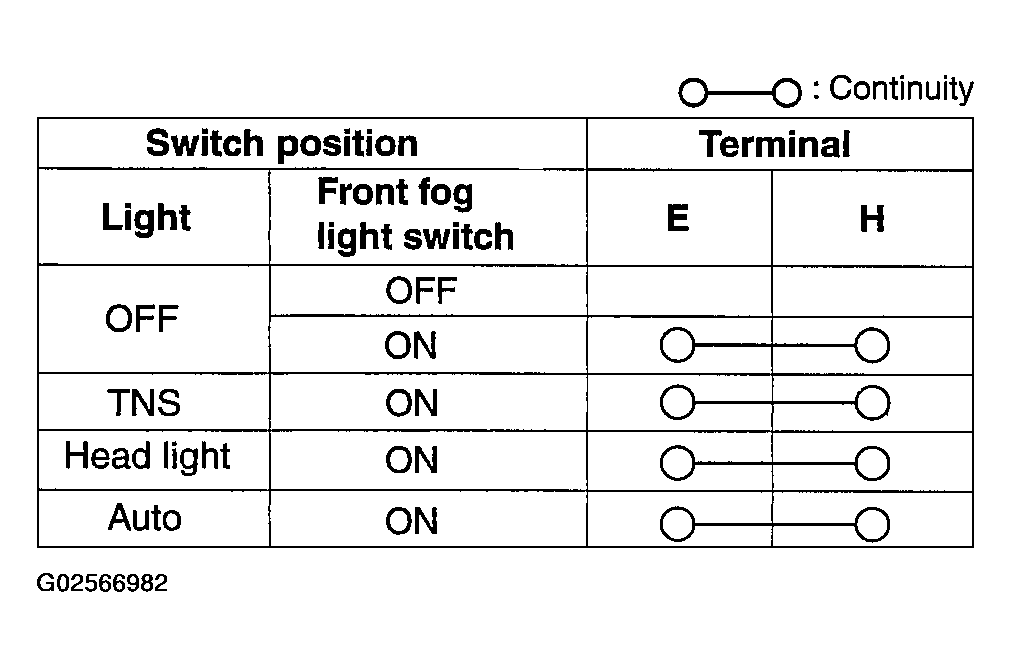

  Fig 1: Front Fog Light Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

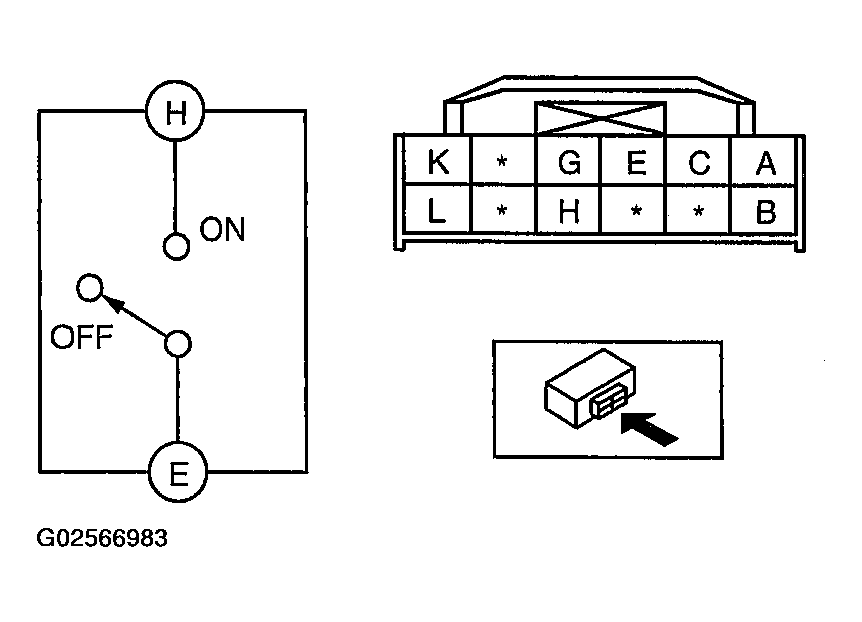

  Fig 2: Identifying Front Fog Light Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
