Audio Unit Disassembly/Assembly
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

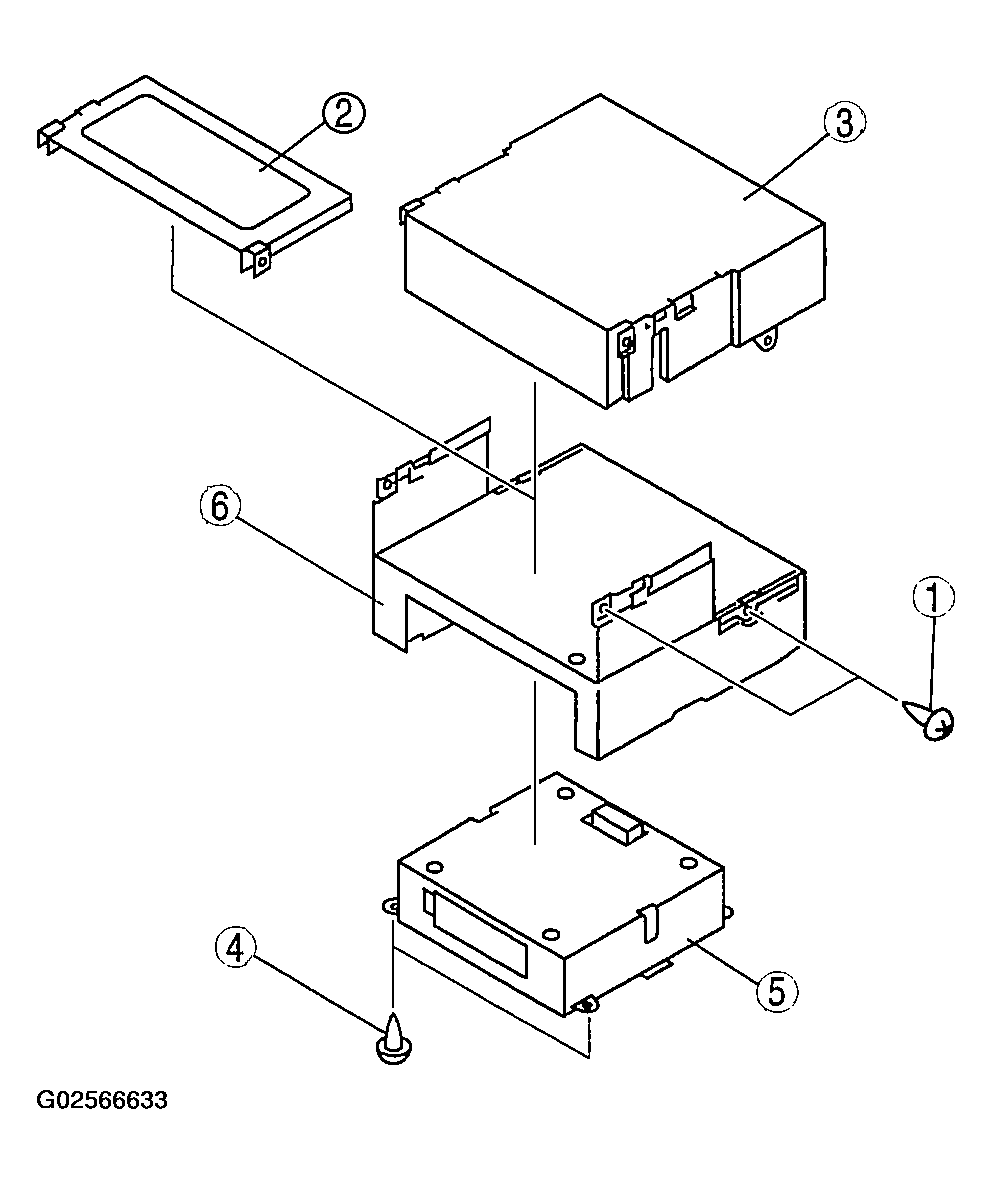

DISASSEMBLING ORDER OF AUDIO UNIT
| 1 |
Screw |
| 2 |
Cover (Vehicles without the upper module) |
| 3 |
Upper module |
| 4 |
Screw |
| 5 |
Lower module |
| 6 |
Base unit |
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP.
