Car-Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
4. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

REMOVAL ORDER OF CAR NAVIGATION UNIT

1	Nut
2	Connector
3	Car-navigation unit

Install in the reverse order of removal.

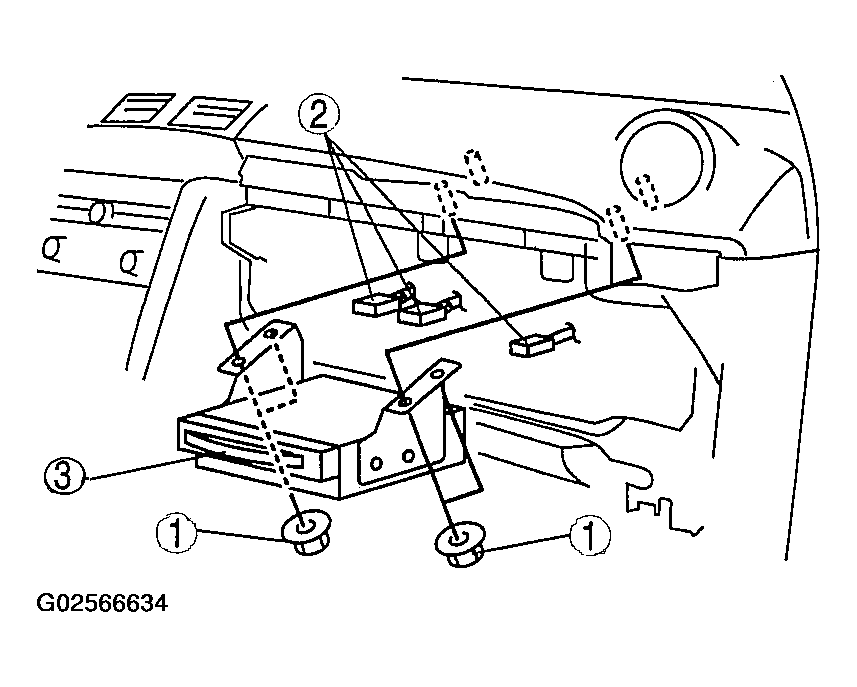

Fig 1: Removing/Installing Car-Navigation Unit
Courtesy of MAZDA MOTORS CORP.
