LCD Unit Removal Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Pull the lower LCD unit outward, detach clip A and pin B from the dashboard, and then remove the LCD unit.

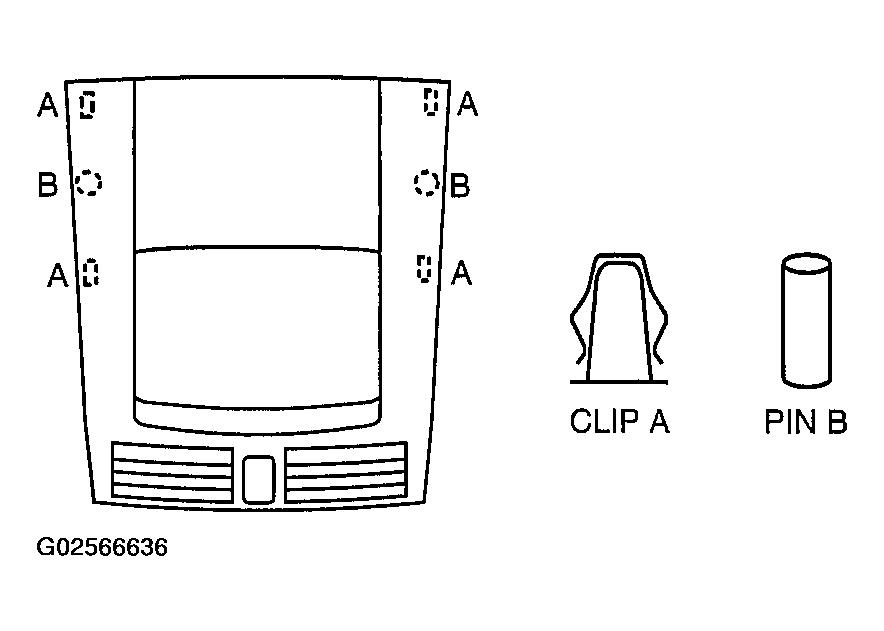

Fig 1: Locating LCD Unit Clips
Courtesy of MAZDA MOTORS CORP.
