Test Description
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

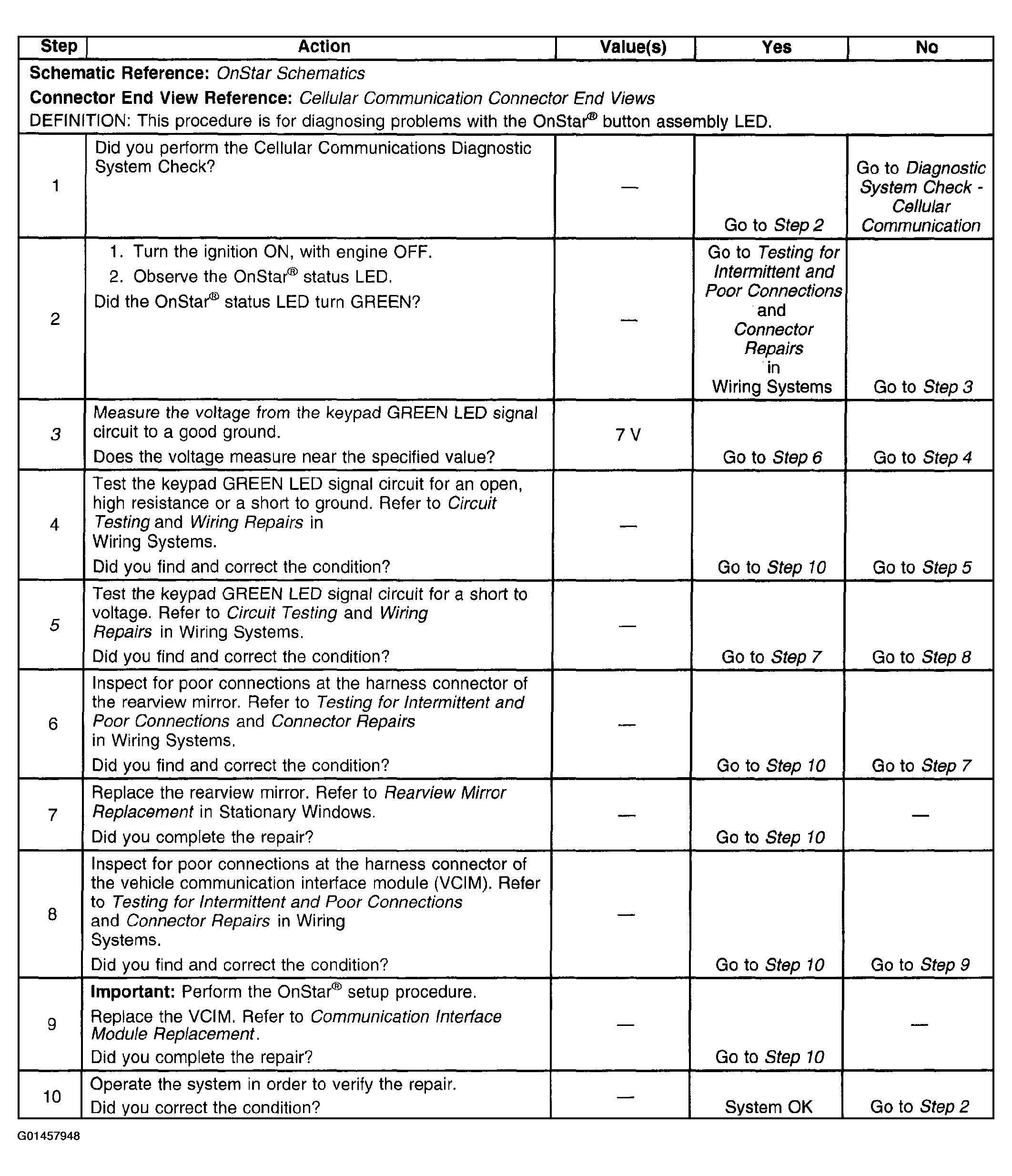

The numbers below refer to the step numbers on the diagnostic table.
- 3. Determines if the OnStar® status LED has the necessary GREEN LED signal circuit voltage.
- 5. If the GREEN LED signal is shorted to voltage then the OnStar® 3-button assembly has been damaged and the OnStar® 3-button assembly must be replaced.
