Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the SGCM radiator outlet hose (1) to the vehicle.
Install the SGCM radiator outlet hose (1) to the SGCM (3).
Position the SGCM radiator outlet hose clamp (2) to the SGCM (3).

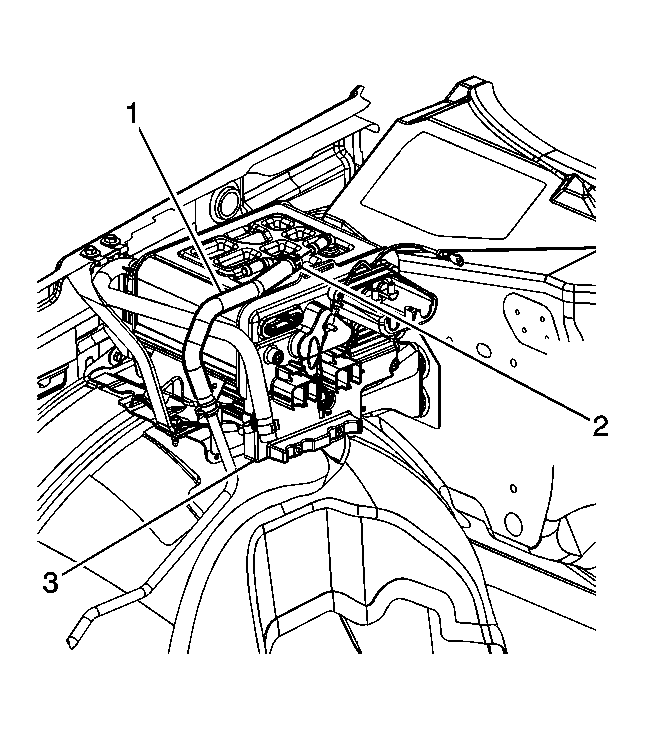

Fig 1: View OF SGCM, Radiator Outlet Hose & Clamp

Courtesy of GENERAL MOTORS CORP.

Install the SGCM radiator outlet hose to the clip.
Install the SGCM radiator outlet hose to the clip (3).

Fig 2: View Of Coolant Pump Inlet Hose, Clamp & Pump

Courtesy of GENERAL MOTORS CORP.

Install the SGCM radiator outlet hose (5) to the clip (4).
Install the SGCM radiator outlet hose (5) to the SGCM radiator (2). Refer to Coolant Pipe Quick Connect Fitting - Starter/Generator Control Module .

Fig 3: View Of SGCM Radiator Outlet Hose & SGCM Radiator

Courtesy of GENERAL MOTORS CORP.

NOTE: The procedure below must be followed. Improper coolant level could result in a low or high coolant level condition, causing starter/generator control module damage.

Fill the SGCM cooling system. Refer to Draining and Filling Cooling System (with HP2) or Draining and Filling Cooling System (without HP2) .
