Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control release switch to the switch bracket.
Fully seat the switch to the bracket. Audible clicks will be heard while pushing the switch.

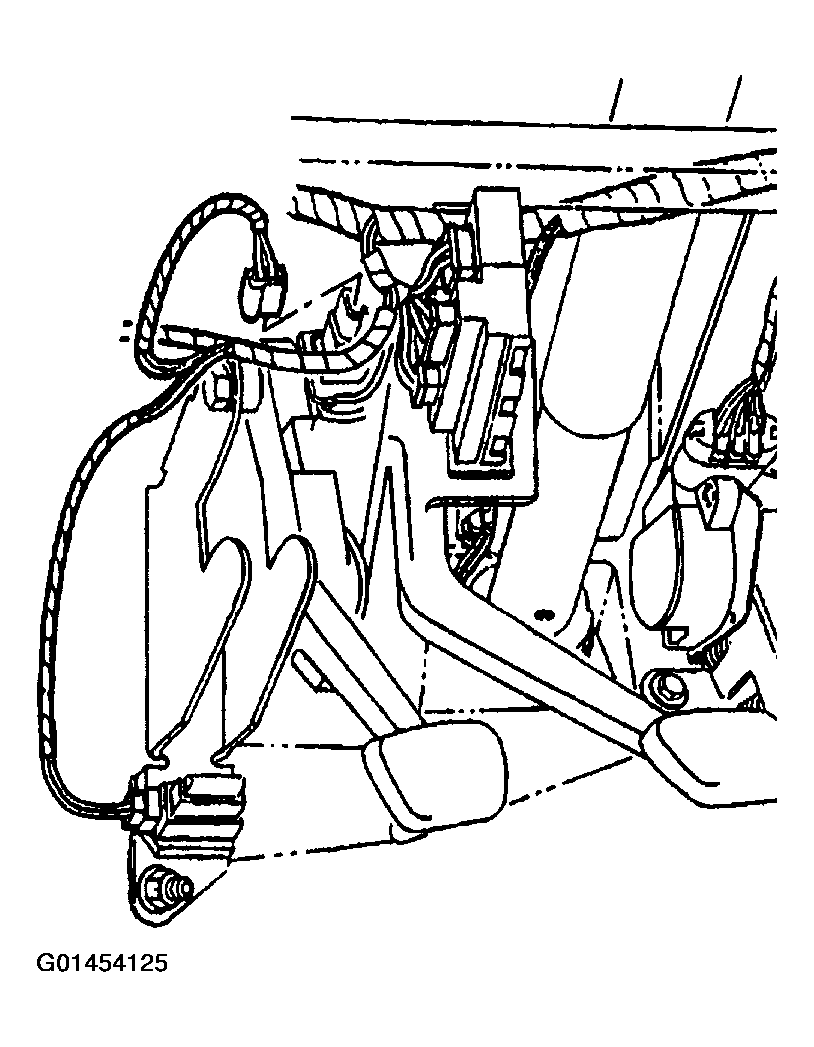

Fig 1: Cruise Control Release Switch
Courtesy of GENERAL MOTORS CORP.
Connect the cruise control release switch electrical connector.

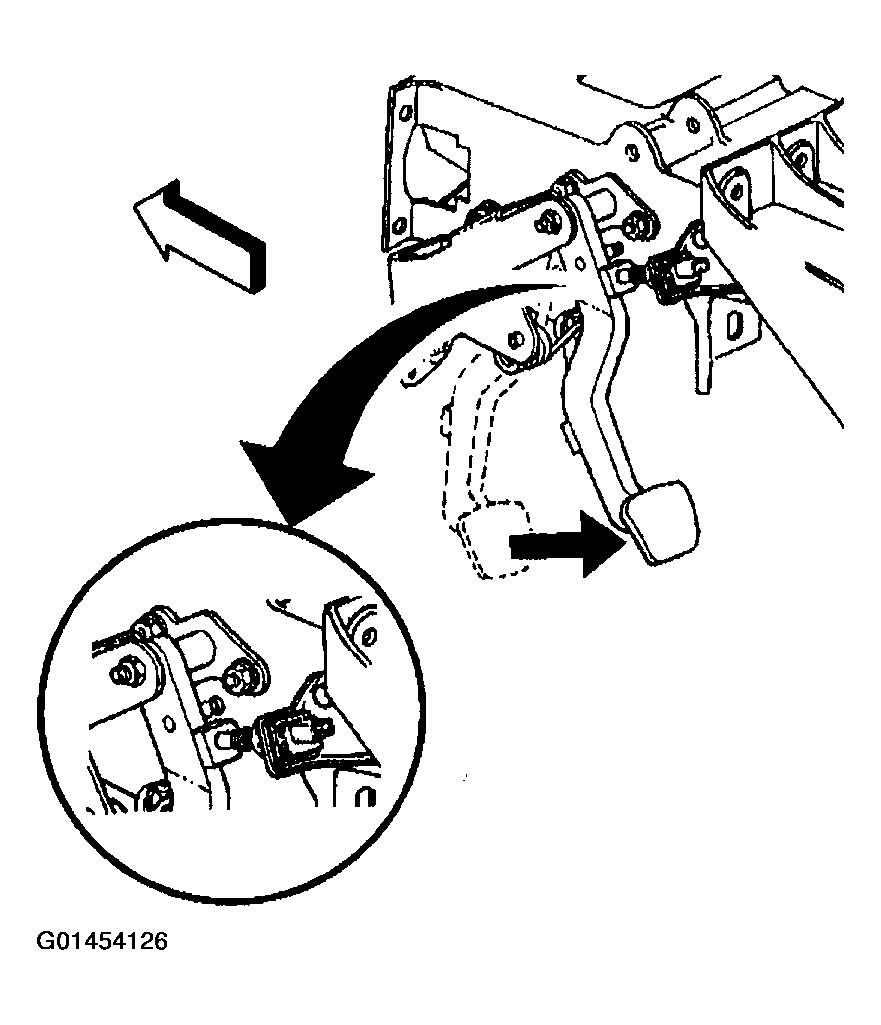

Fig 2: Connecting Cruise Control Release Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Adjust the cruise control release switch.
Grasp the clutch pedal and pull fully rearward against the pedal stop. Audible clicks may be heard as the switch moves into the adjusted position.
Install the left I/P lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gauges and Console.

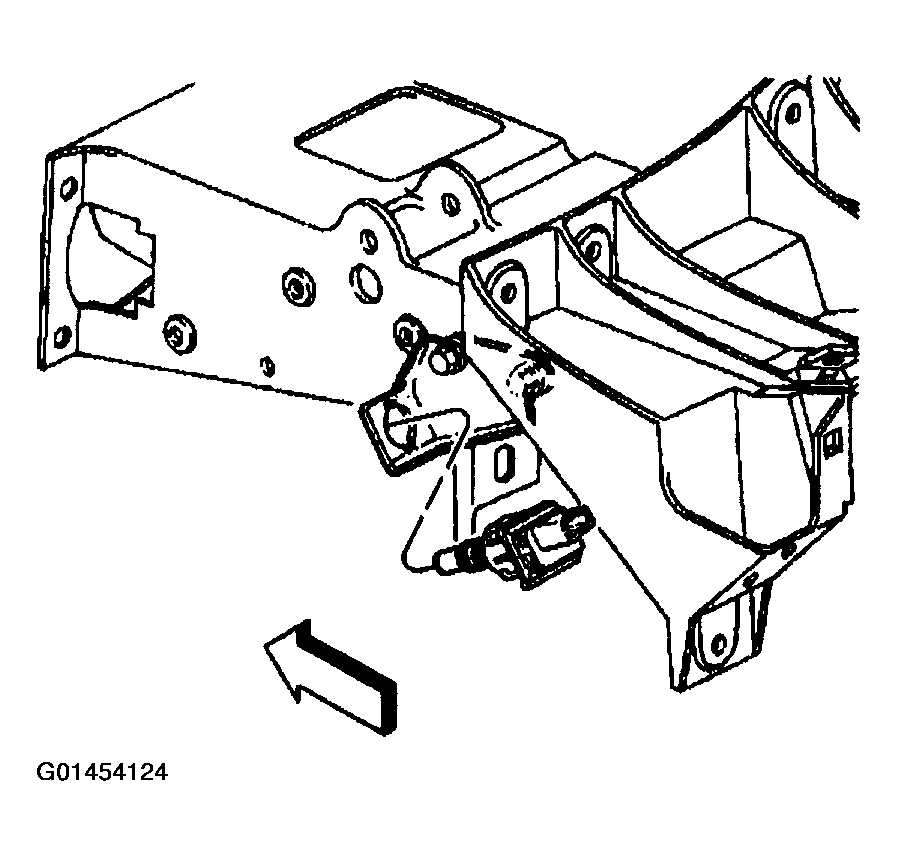

Fig 3: Adjusting Cruise Control Release Switch
Courtesy of GENERAL MOTORS CORP.
