Stationary Windows Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Inside Rearview Mirror-DDO

Courtesy of GENERAL MOTORS CORP.

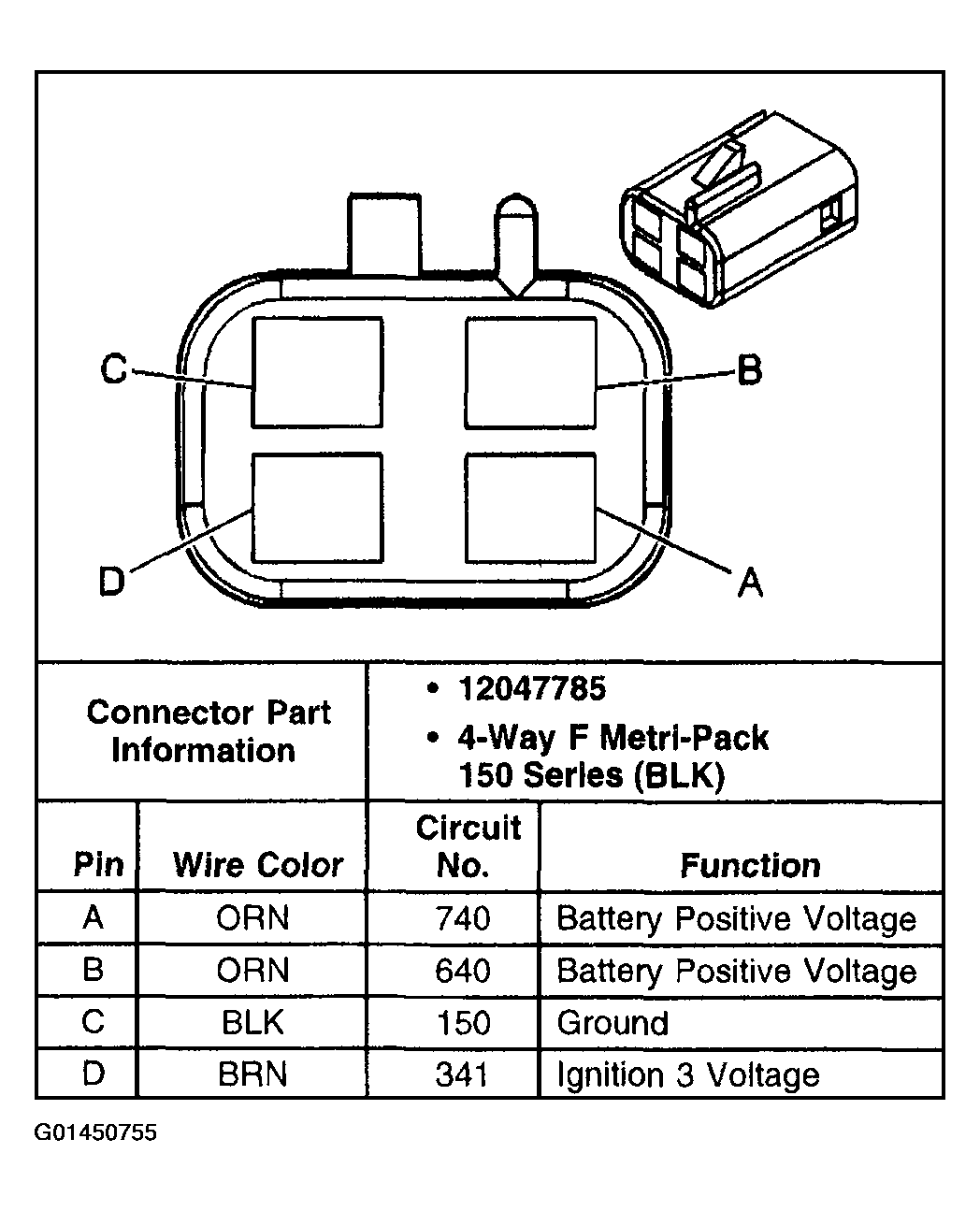

Fig 2: Identifying Inside Rearview Mirror-W/O DDO

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Rear Defogger Grid Connector (C1)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Rear Defogger Grid Connector (C2)

Courtesy of GENERAL MOTORS CORP.
