Inline Harness Connector End Views: C202

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

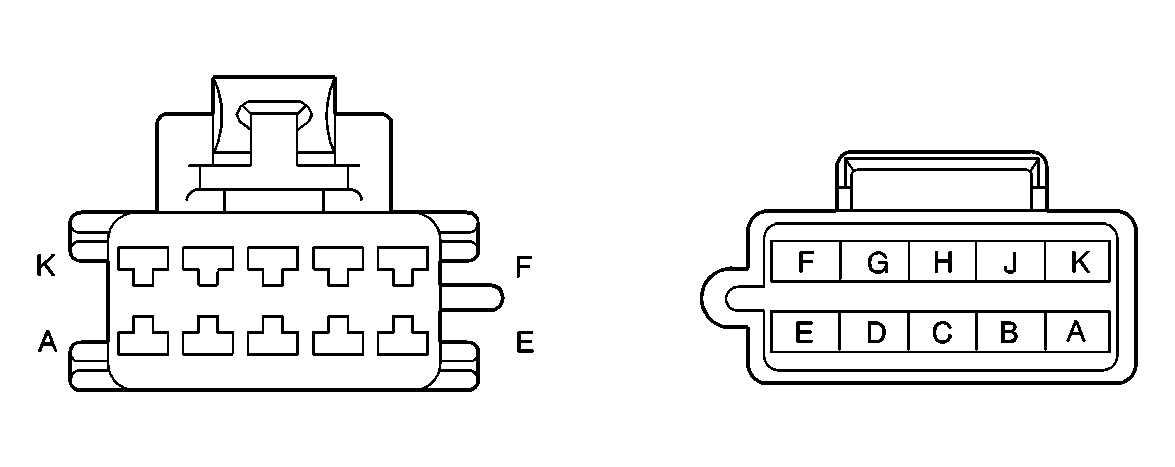

C202 Instrument Panel Harness To Terminal Identification RH Door Harness

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064871 10-Way F Metri-Pack 150 Series (BLU)		Connector Part Information		12064872 10-Way M Metri-Pack 150 Series (BLU)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	LT GRN	200	Right Front Speaker Output (+)	A	LT GRN	200	Right Front Speaker Output (+)
B	DK GRN	117	Right Front Speaker Output (-)	B	DK GRN	117	Right Front Speaker Output (-)
C	BLK/WHT	351	Ground	C	BLK/WHT	351	Ground
D	ORN	360	Speaker Supply Voltage	D	ORN	360	Speaker Supply Voltage
E	BLK/WHT	351	Ground	E	BLK/WHT	351	Ground
F-G	-	-	Not Used	F-G	-	-	Not Used
H	ORN/BLK	1726	Audio Signal-RH Subwoofer	H	YEL	1726	Audio Signal-RH Subwoofer
J	LT GRN	512	Right Front Low Level Audio Signal (+)	J	LT GRN	512	Right Front Low Level Audio Signal (+)
K	Bare	514	Ground	K	Bare	514	Ground
