Inline Harness Connector End Views: C410

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

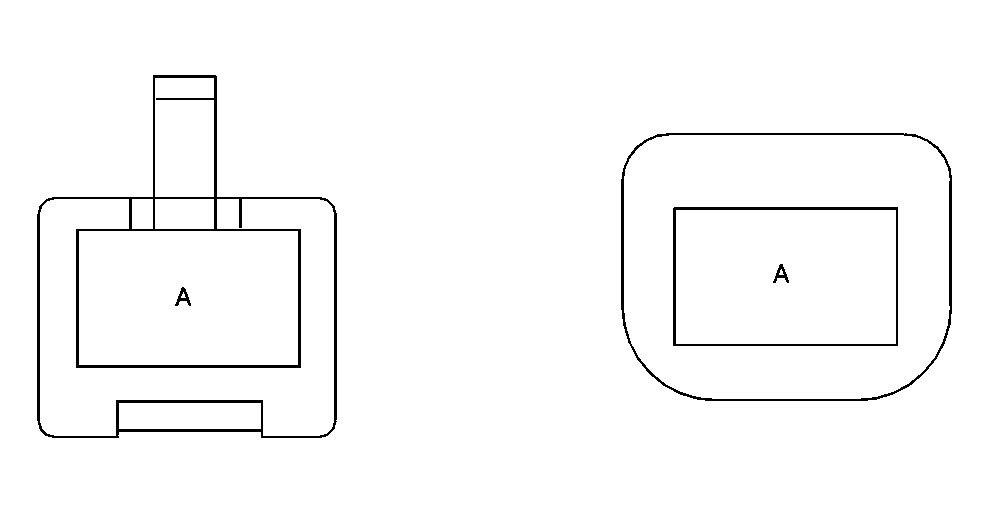

C410 Front Body Harness Terminal Identification To Rear Window Defogger

GM38204Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 02977253
  • 1-Way F 56 Series (BLK)
 Connector Part Information
  • 02984528
  • 1-Way M 56 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 293 Rear Defog Element Supply Voltage A BLK 293 Rear Defog Element Supply Voltage
