Ignition Switch C2
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

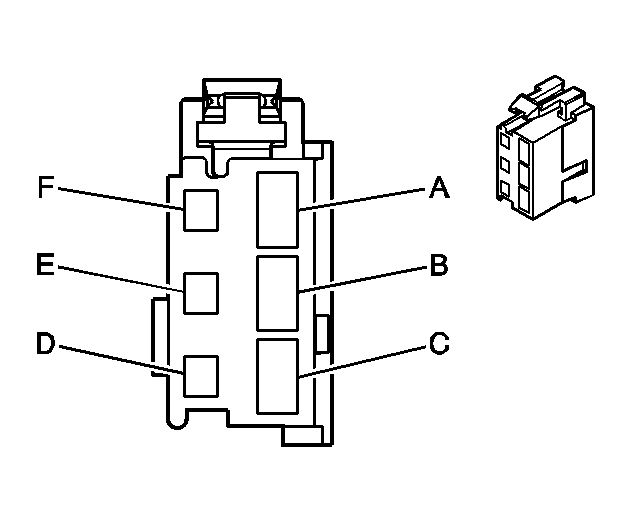

Ignition Switch Terminal Identification C2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | RED | 1542 | Battery Positive Voltage |
| B | PNK | 3 | Ignition 1 Voltage |
| C | BRN | 4 | Accessory Voltage |
| D | TAN | 159 | Key Out Ignition Switch Signal |
| E | BLK | 150 | Ground |
| F | - | - | Not Used |
