Engine Controls Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

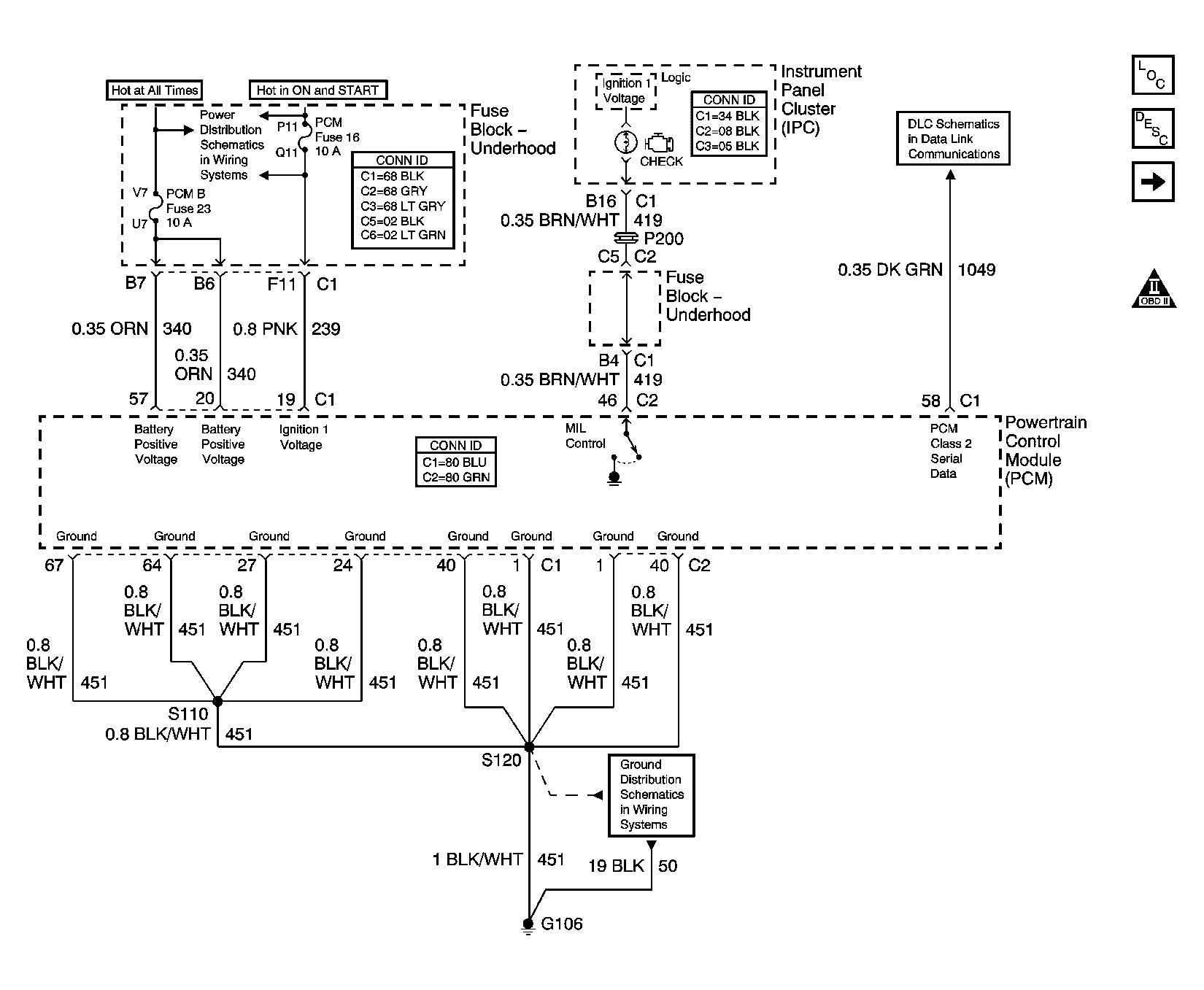

Fig 1: Module Power, Ground, Serial Data And MIL Schematics

Courtesy of GENERAL MOTORS CORP.

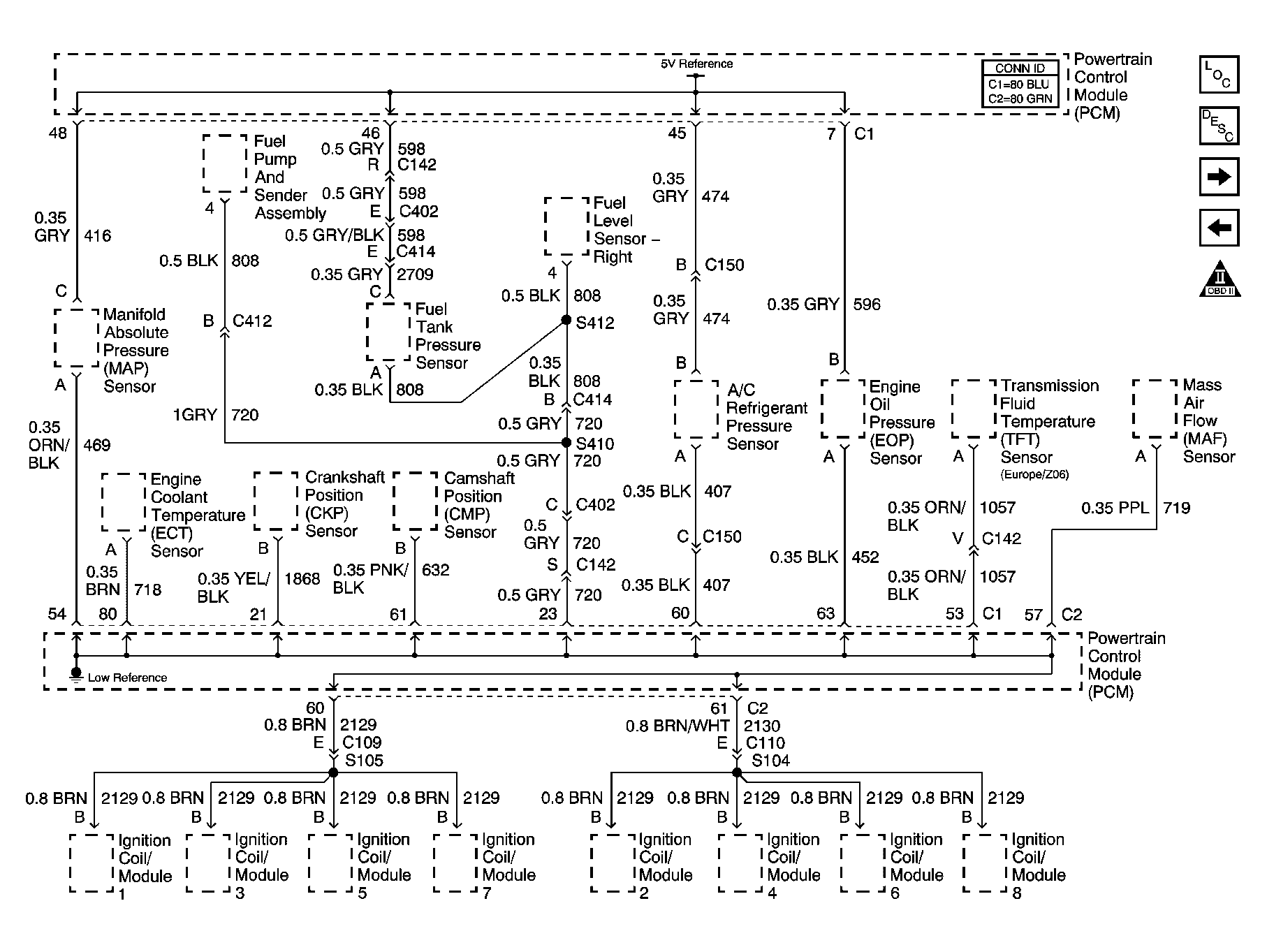

Fig 2: Engine Data Sensors Schematics - 5-Volt And Low Reference

Courtesy of GENERAL MOTORS CORP.

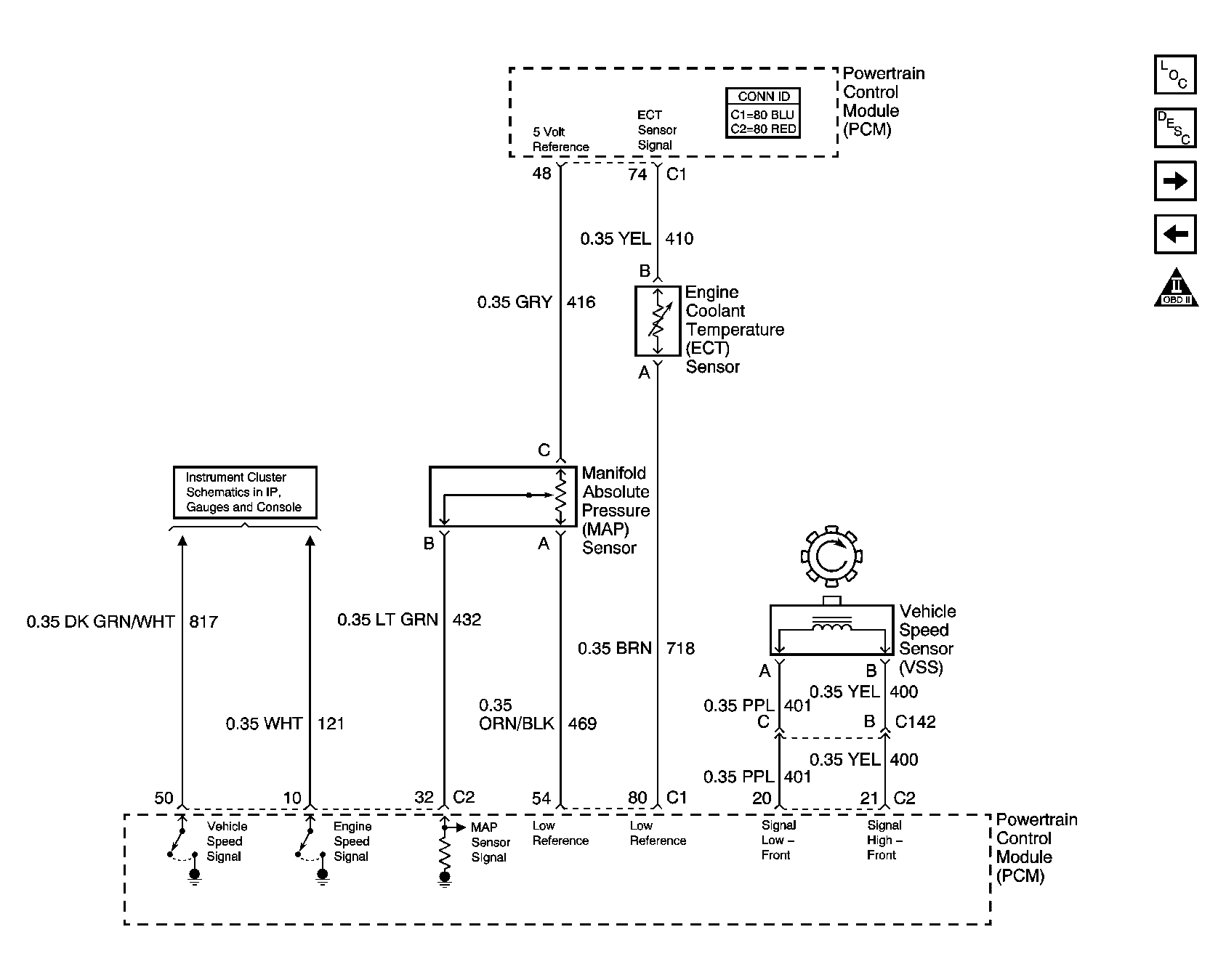

Fig 3: Engine Data Sensors Schematics - Pressure, Temperature And VSS

Courtesy of GENERAL MOTORS CORP.

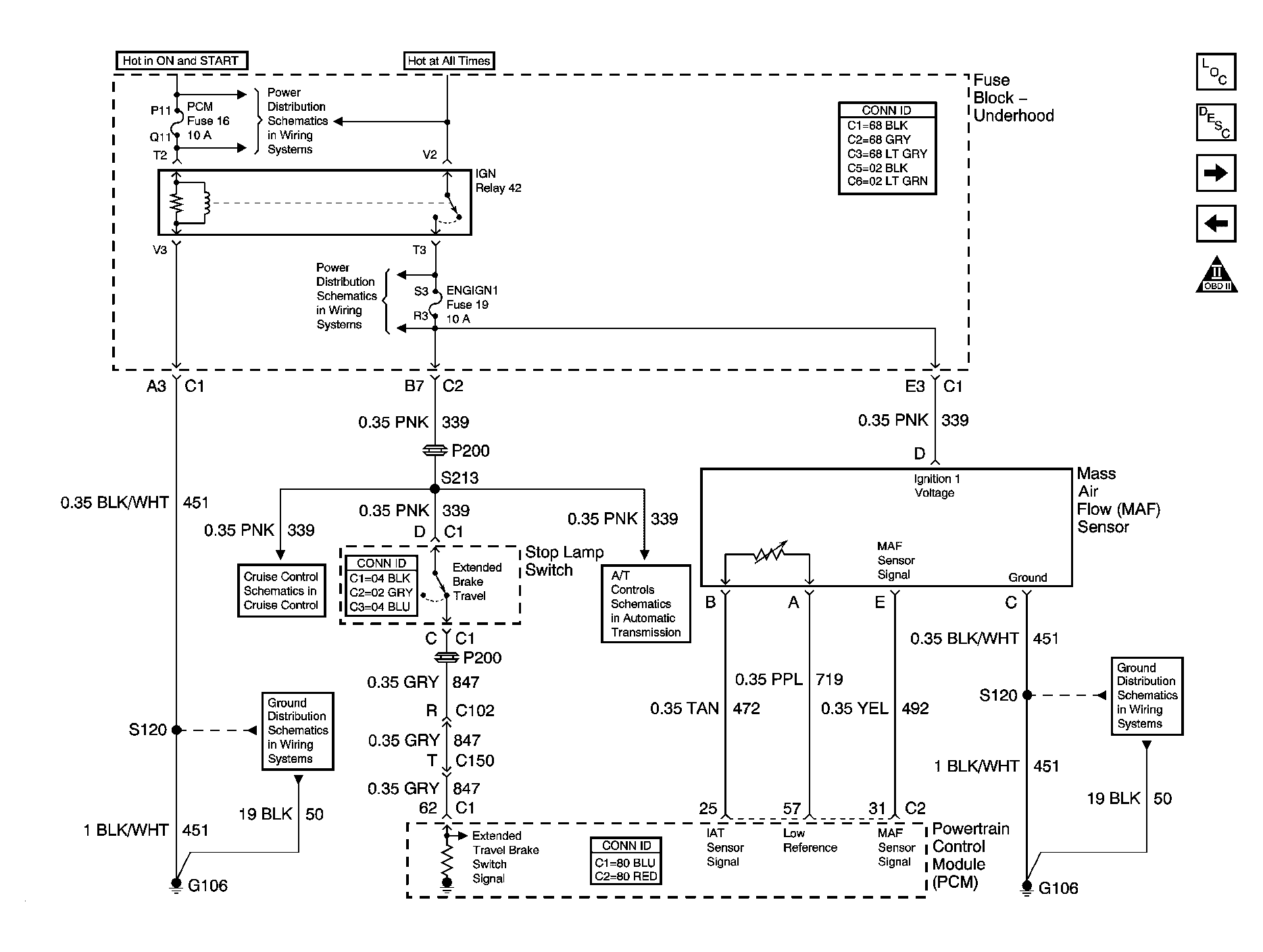

Fig 4: Engine Data Sensors Schematics - MAF And Extended Brake Travel Switch

Courtesy of GENERAL MOTORS CORP.

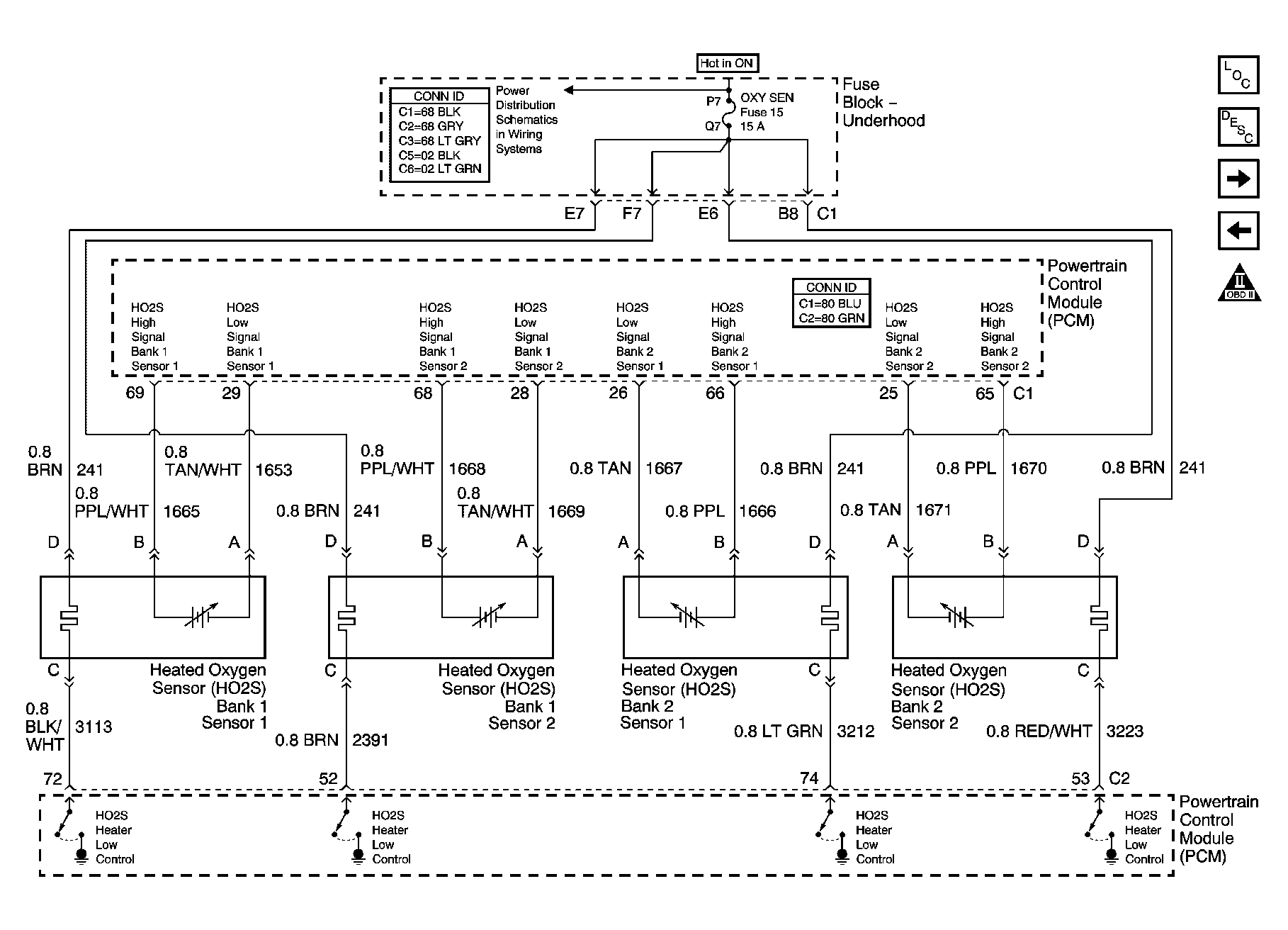

Fig 5: Engine Data Sensors Schematics - HO2S

Courtesy of GENERAL MOTORS CORP.

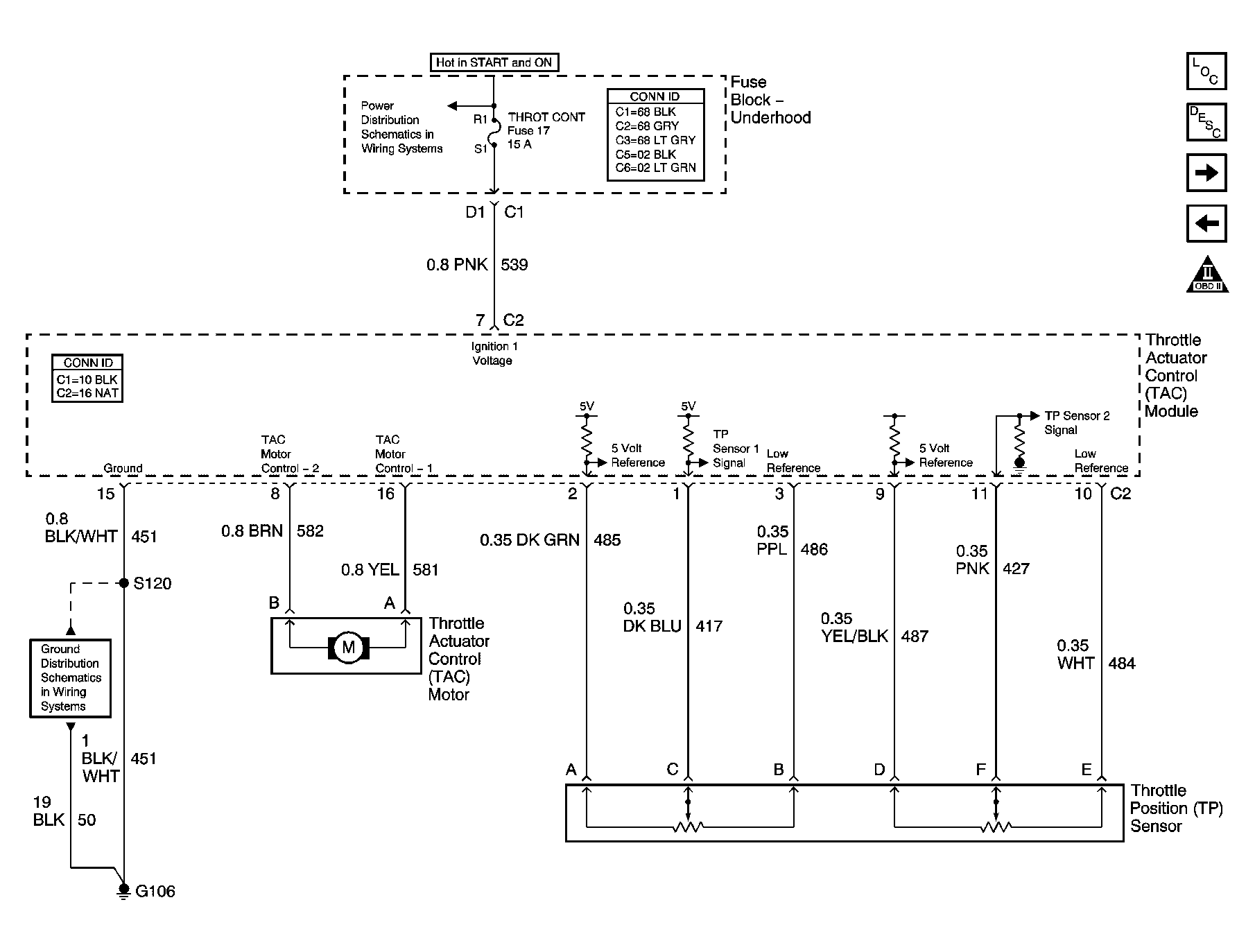

Fig 6: Power, Ground TAC Motor, Module And TP Sensor Schematics

Courtesy of GENERAL MOTORS CORP.

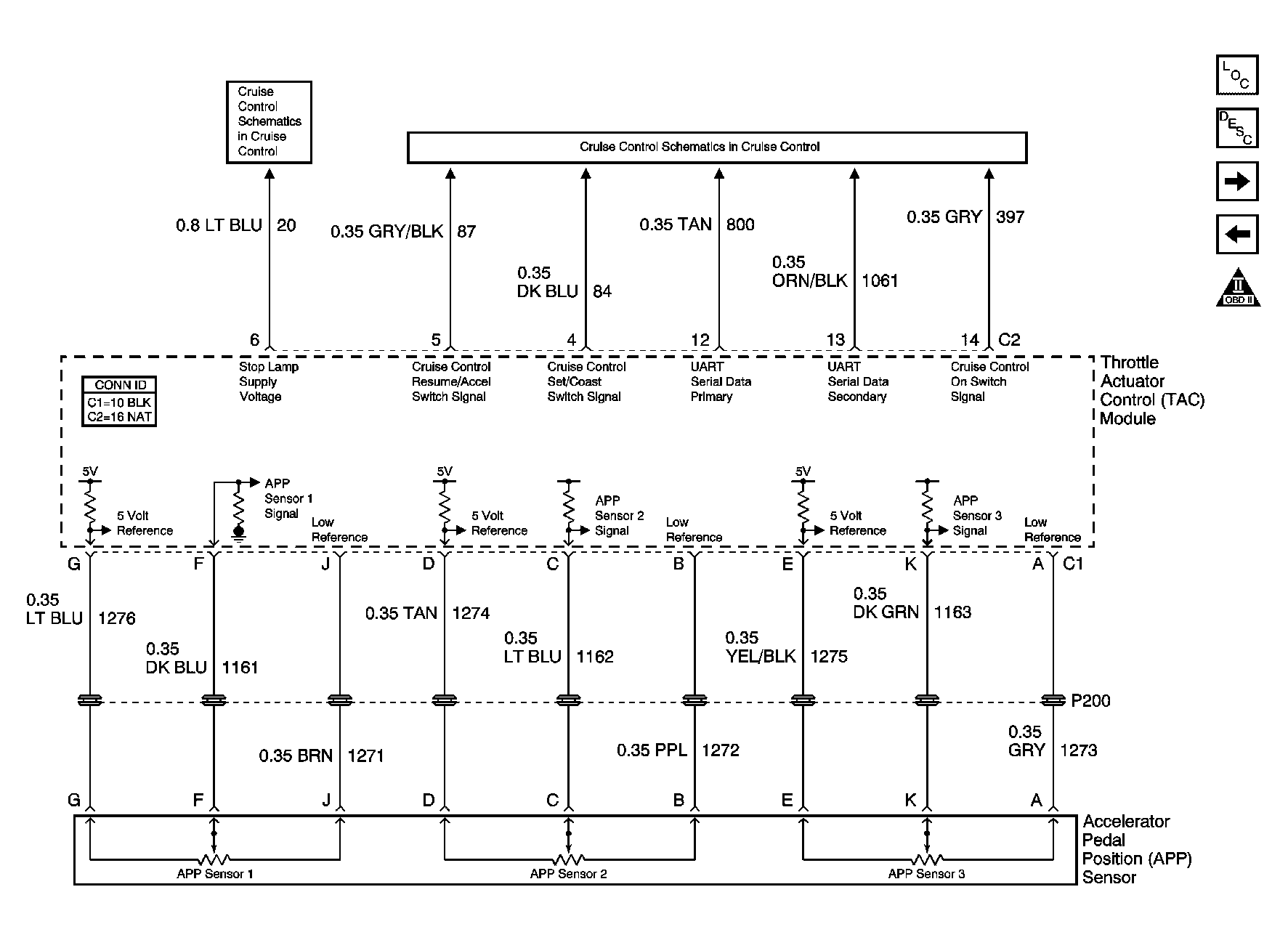

Fig 7: TAC Module APP Sensor And Cruise Reference Schematics

Courtesy of GENERAL MOTORS CORP.

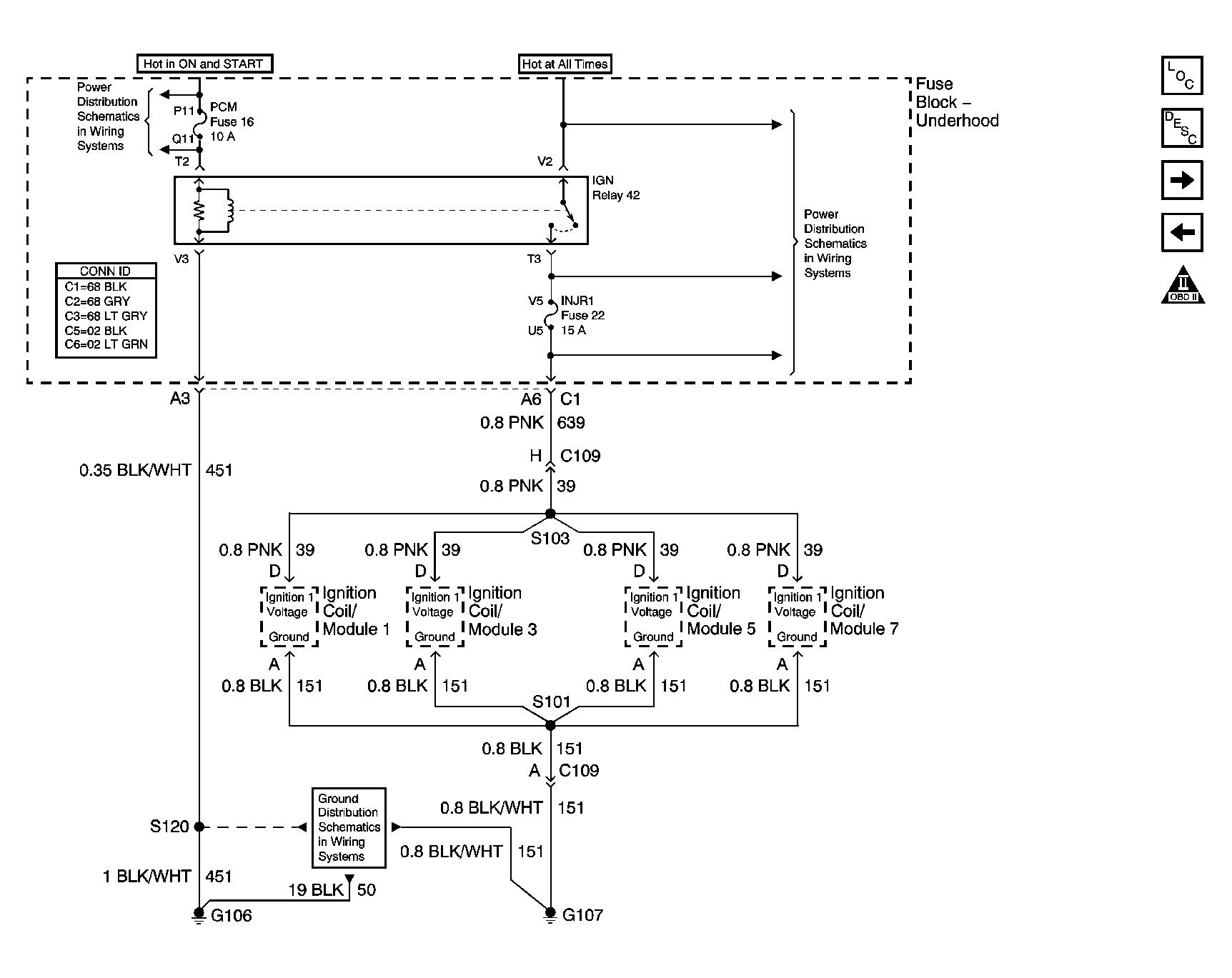

Fig 8: Ignition Controls Schematics - Ignition System 1,3,5,7

Courtesy of GENERAL MOTORS CORP.

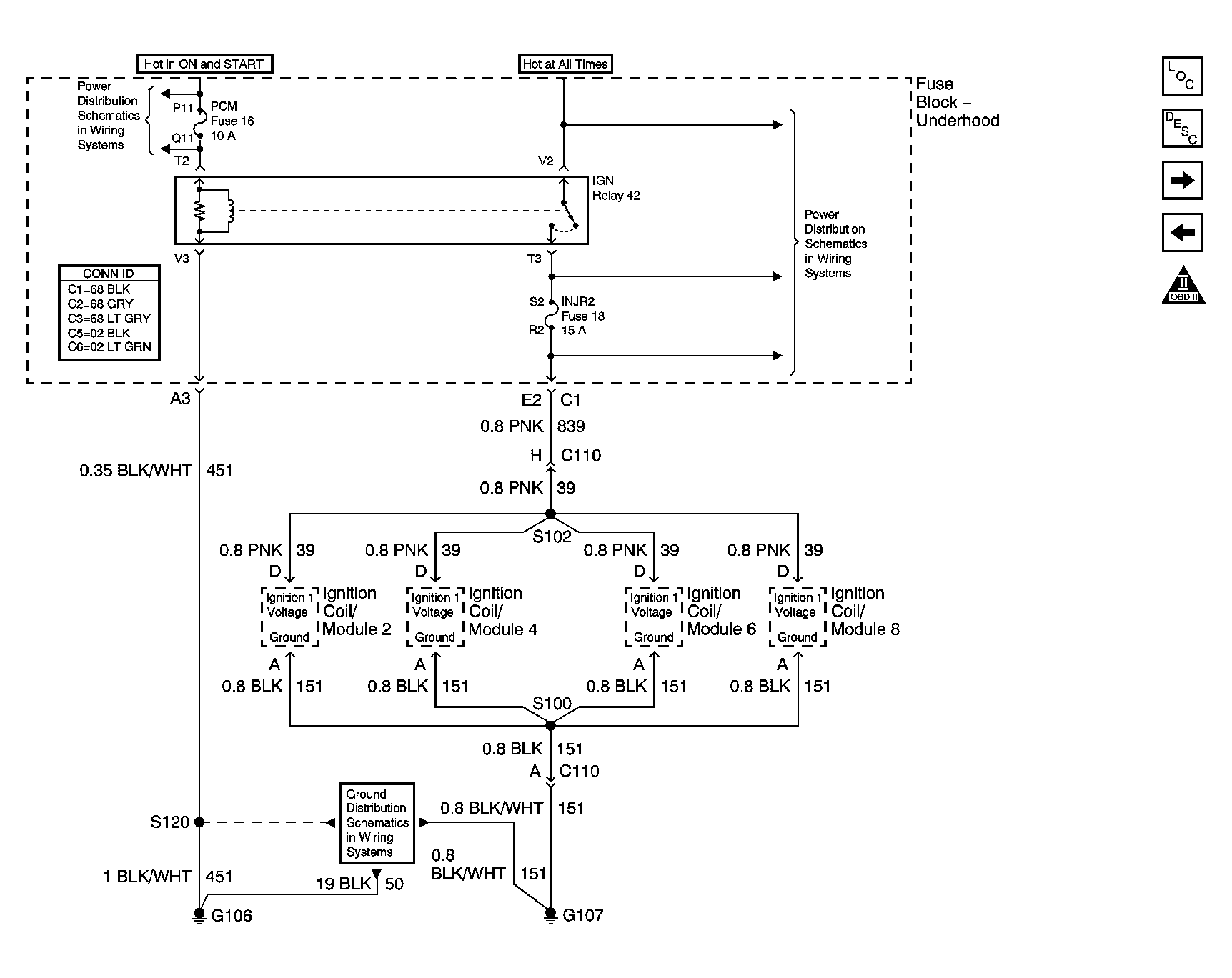

Fig 9: Ignition Controls Schematics - Ignition System 2,4,6,8

Courtesy of GENERAL MOTORS CORP.

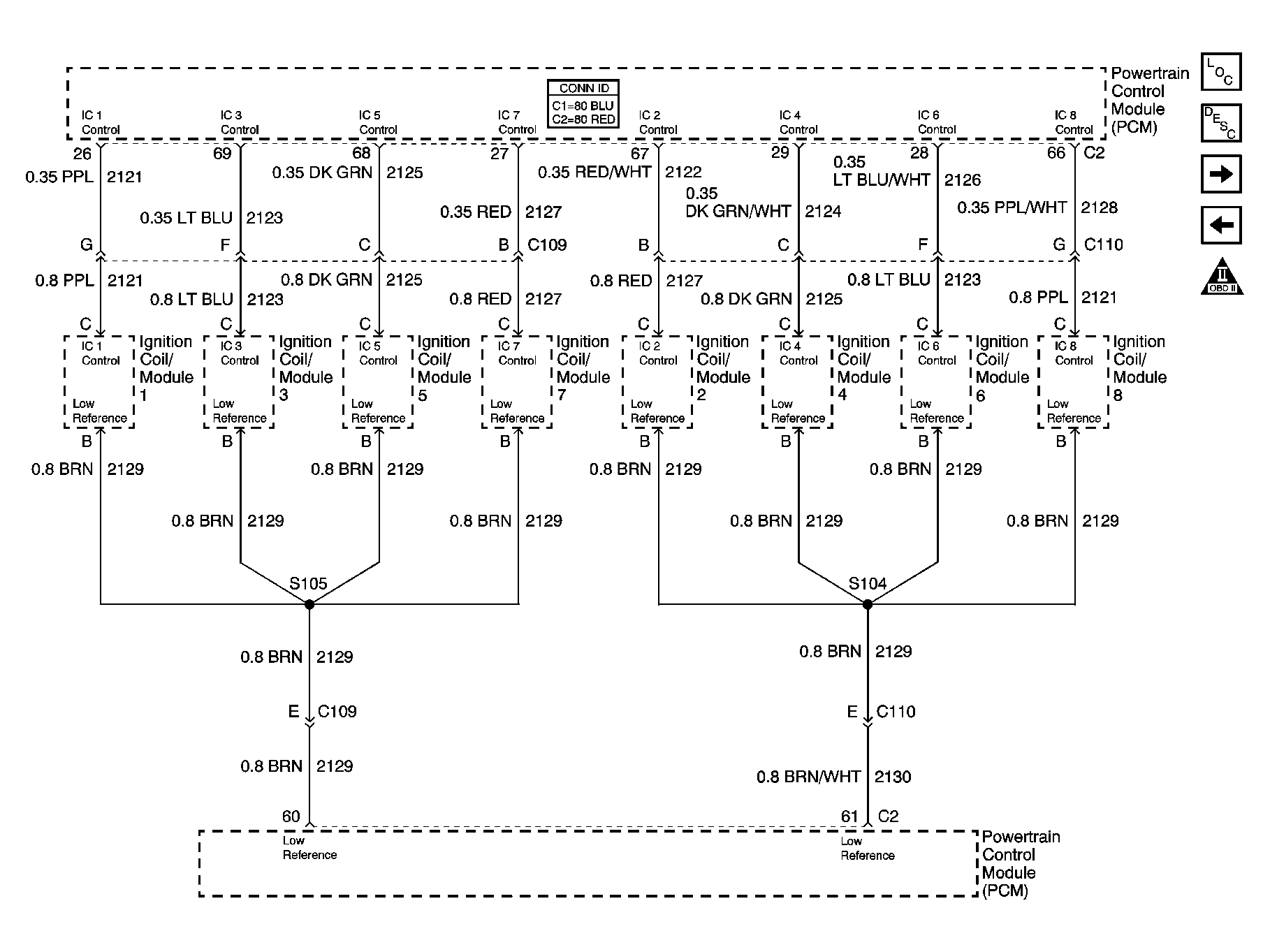

Fig 10: Ignition Controls Schematics - Ignition System Controls

Courtesy of GENERAL MOTORS CORP.

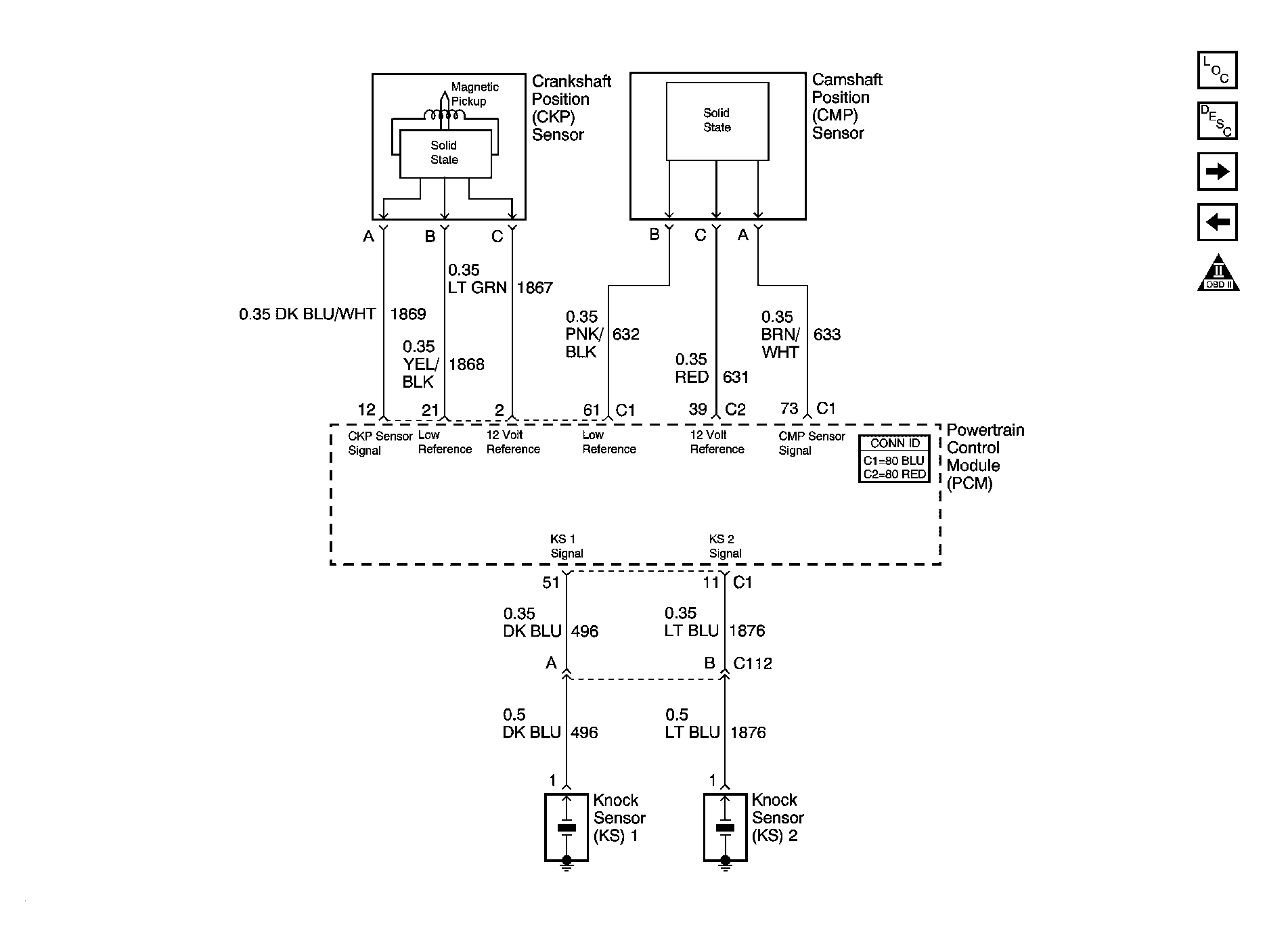

Fig 11: Ignition Controls Schematics - Sensors

Courtesy of GENERAL MOTORS CORP.

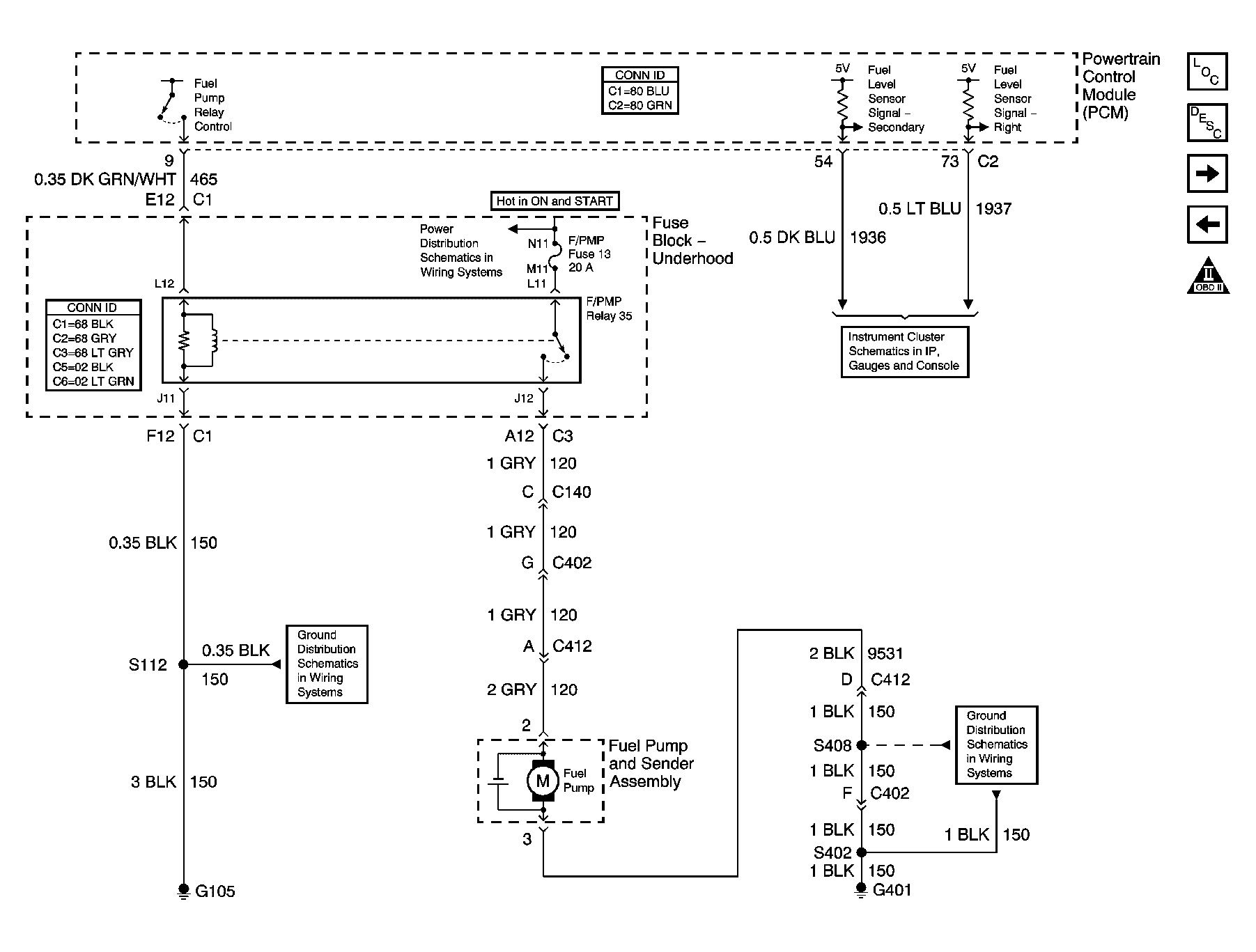

Fig 12: Fuel Controls Schematics - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuel Controls Schematics - Fuel Injectors 1,3,5,7

Courtesy of GENERAL MOTORS CORP.

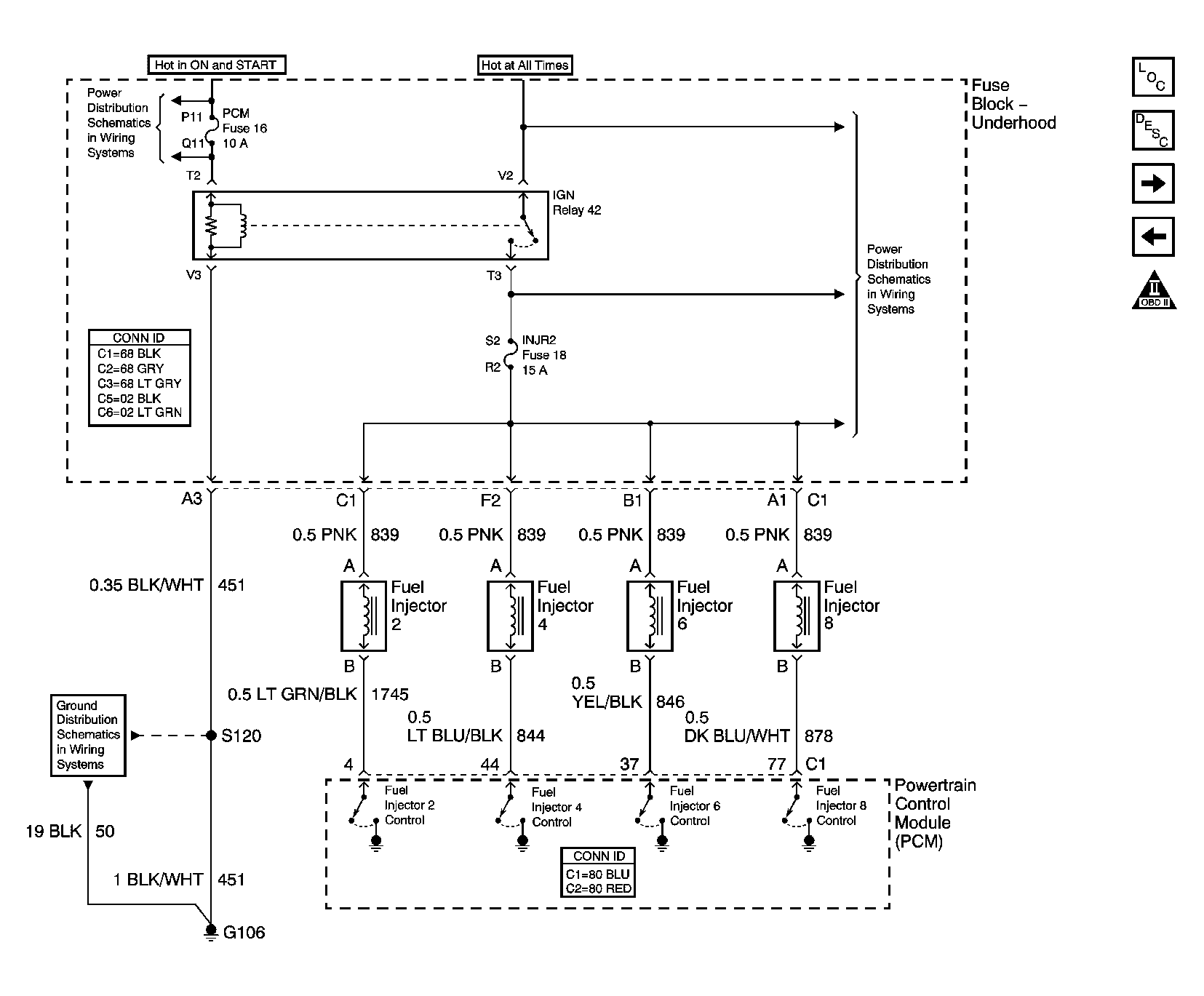

Fig 14: Fuel Controls Schematics - Fuel Injectors 2,4,6,8

Courtesy of GENERAL MOTORS CORP.

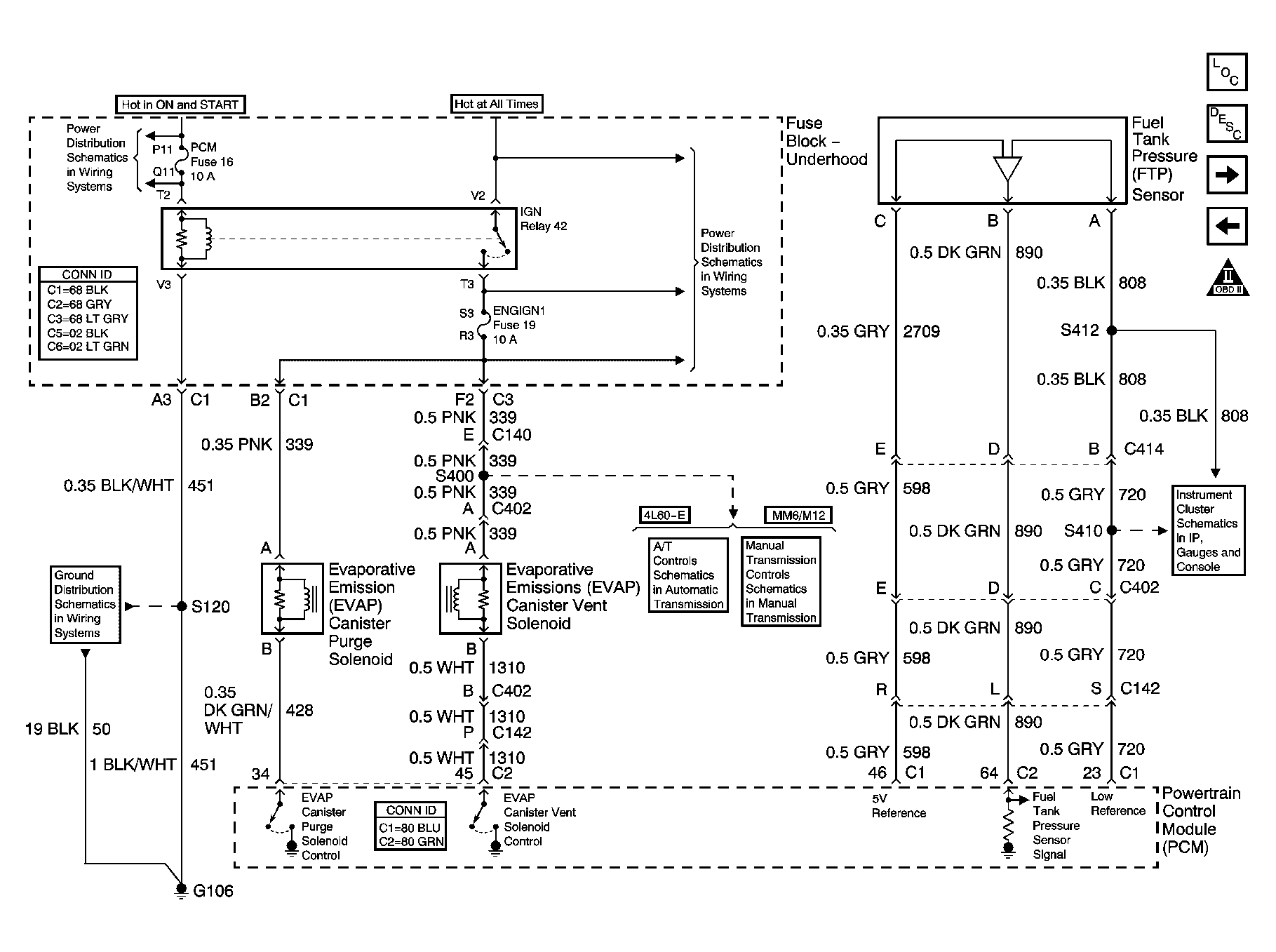

Fig 15: Fuel Controls Schematics - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 16: Device Controls Schematics

Courtesy of GENERAL MOTORS CORP.

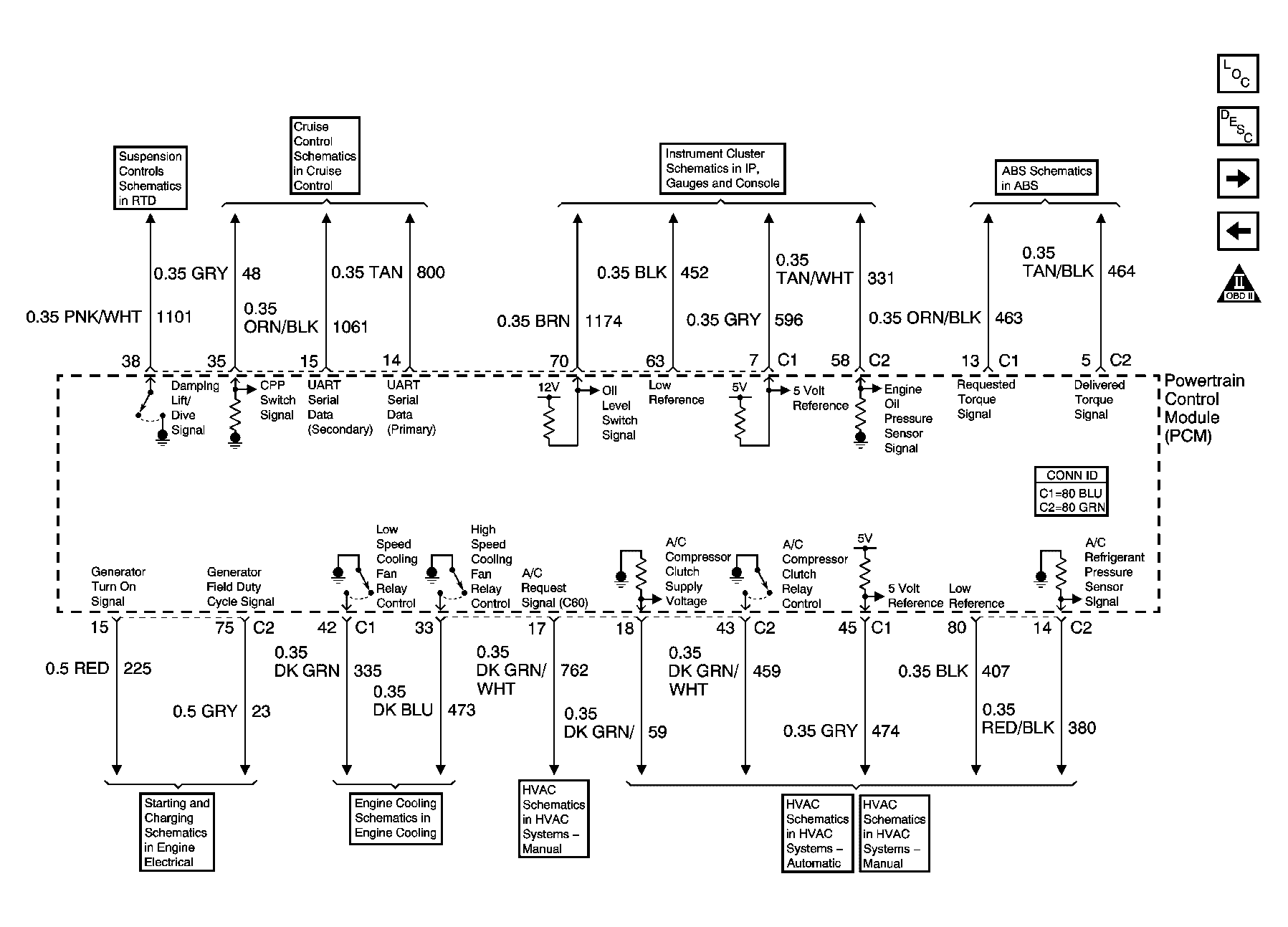

Fig 17: Controled/Monitored Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

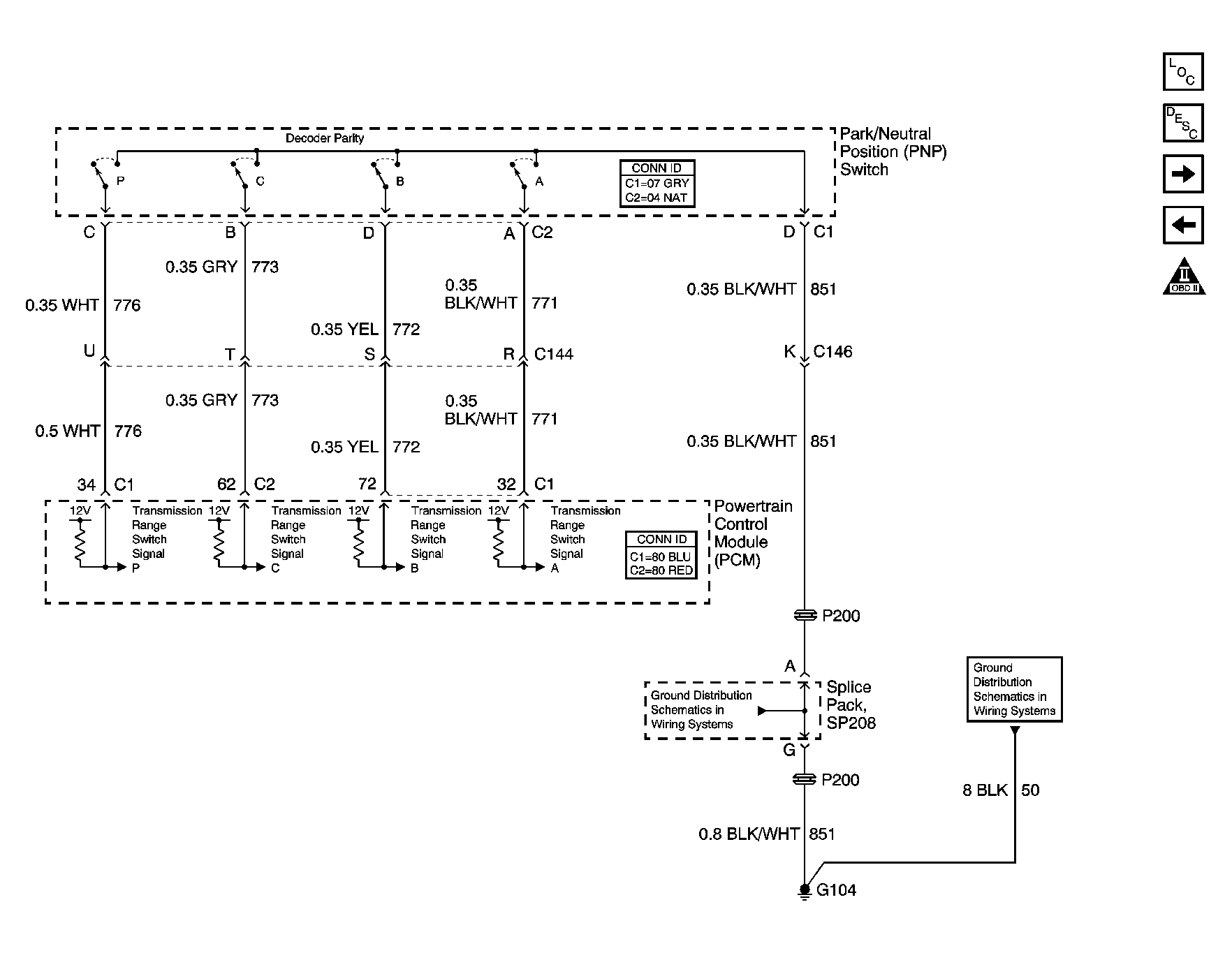

Fig 18: Transmission Controls Schematics - PNP Switch

Courtesy of GENERAL MOTORS CORP.

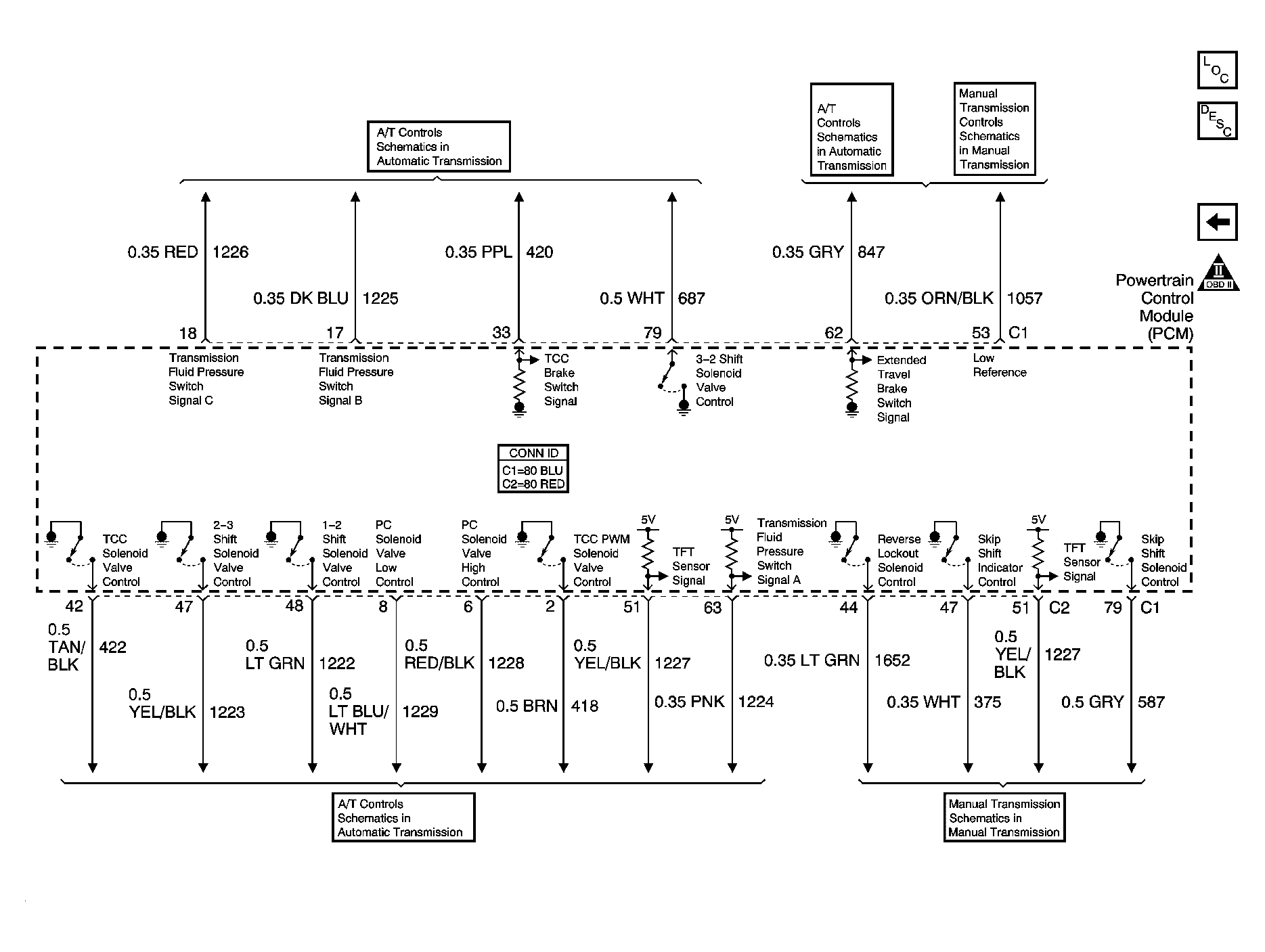

Fig 19: Transmission Controls Schematics - M/T And A/T

Courtesy of GENERAL MOTORS CORP.
