HVAC Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

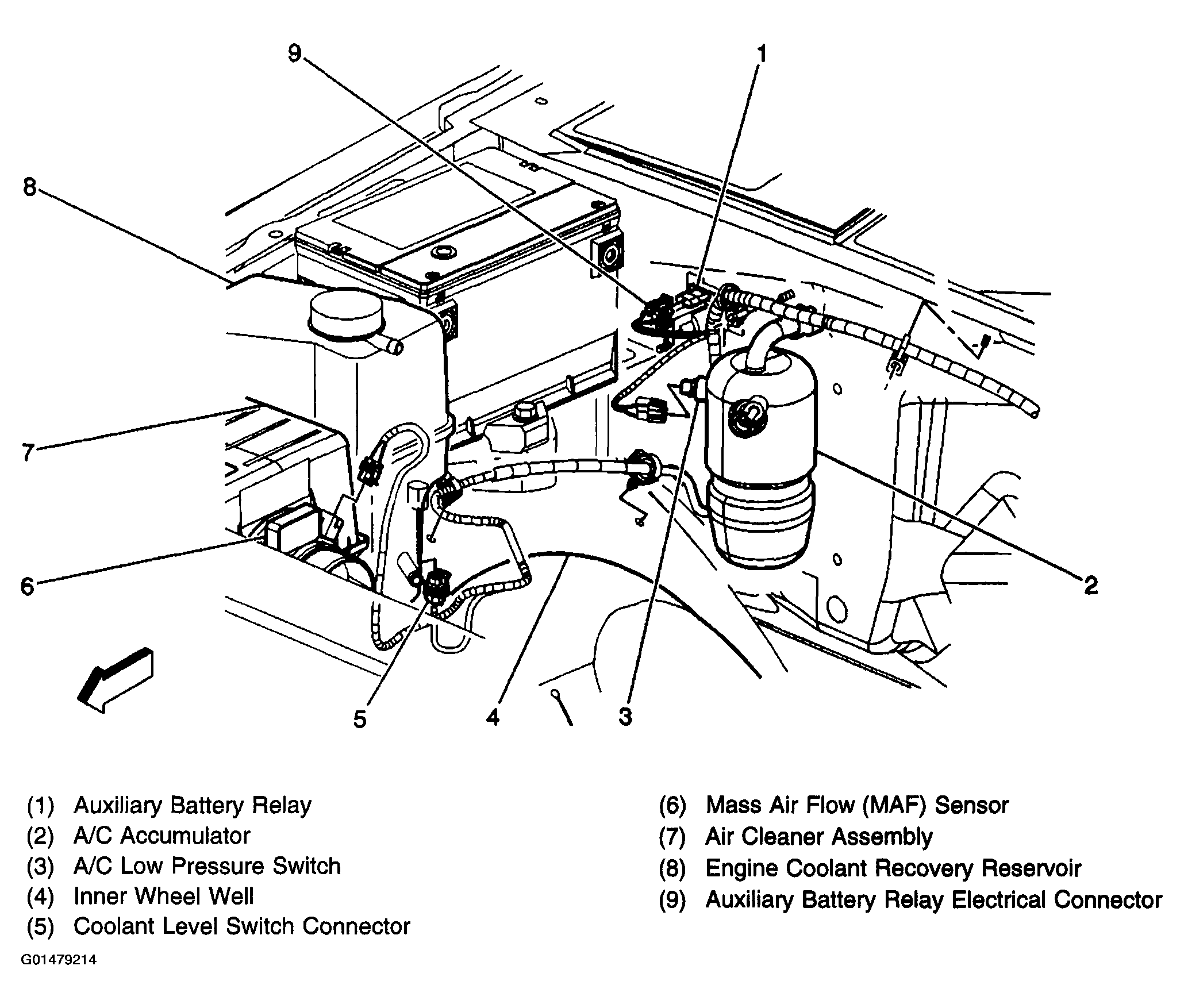

Fig 1: A/C Low Pressure Switch & A/C Accumulator

G01479214

Courtesy of GENERAL MOTORS CORP.

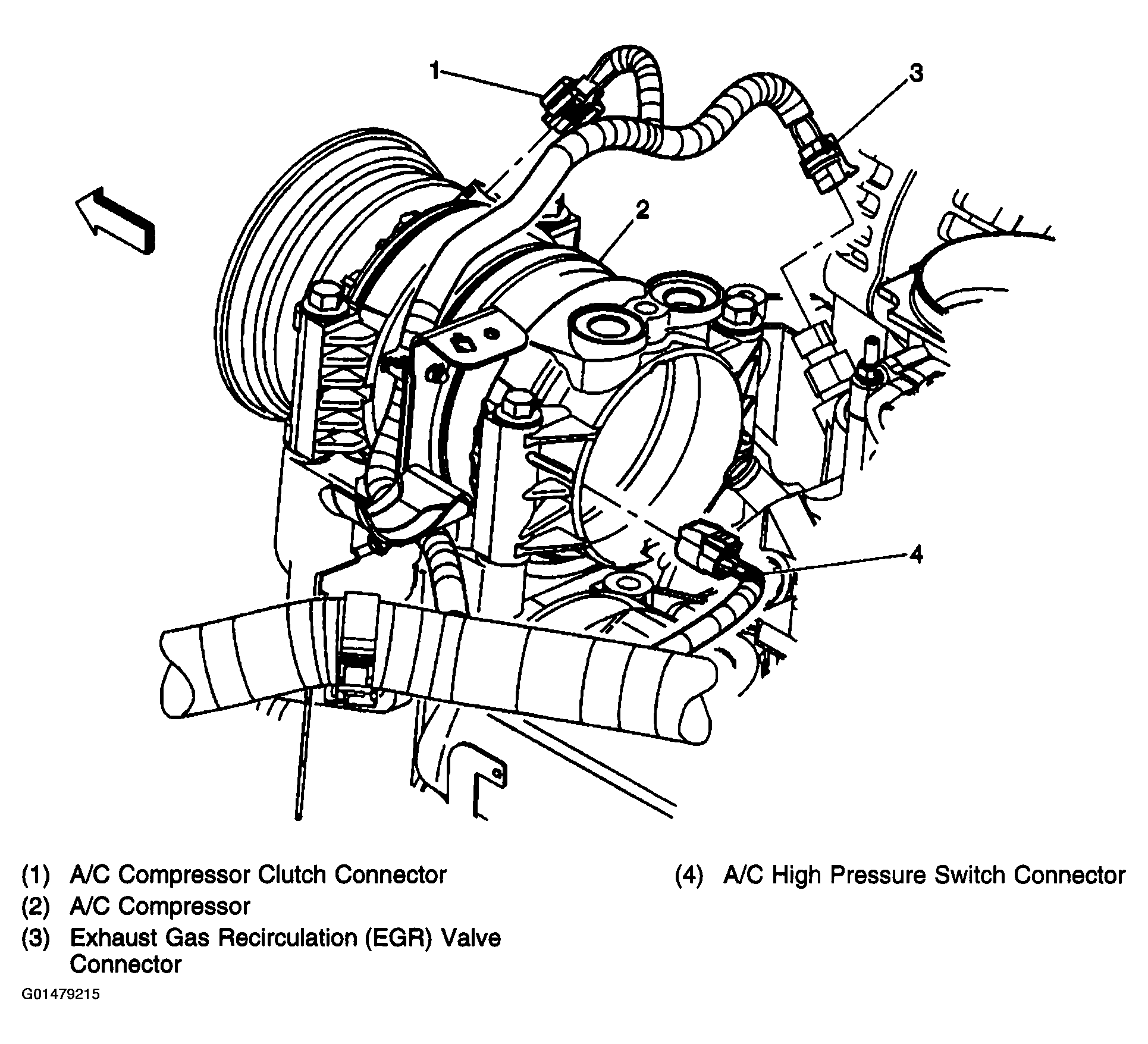

Fig 2: A/C Compressor Clutch - 4.3L

G01479215

Courtesy of GENERAL MOTORS CORP.

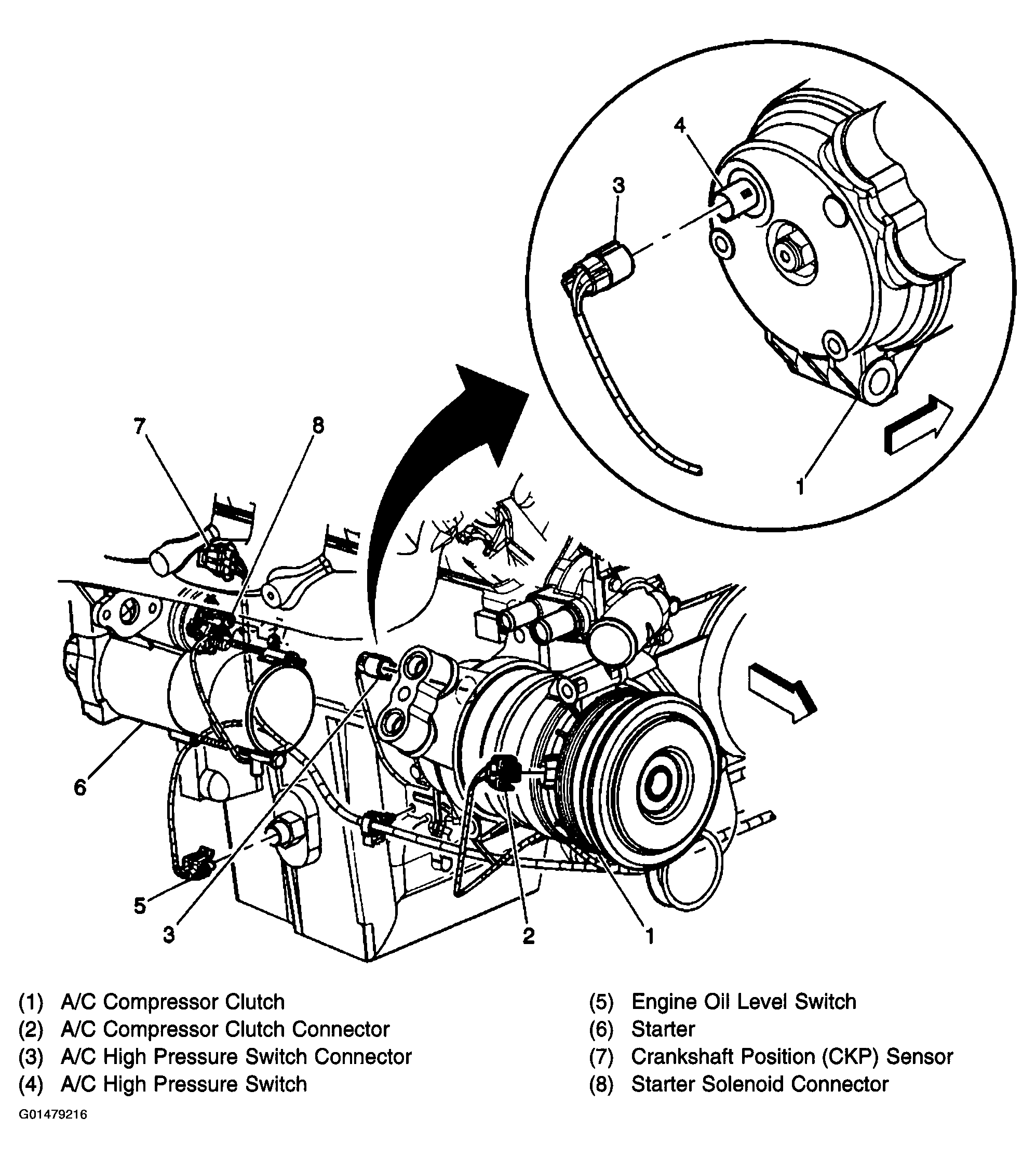

Fig 3: A/C Compressor Clutch - 4.8L, 5.3L, 6.0L

G01479216

Courtesy of GENERAL MOTORS CORP.

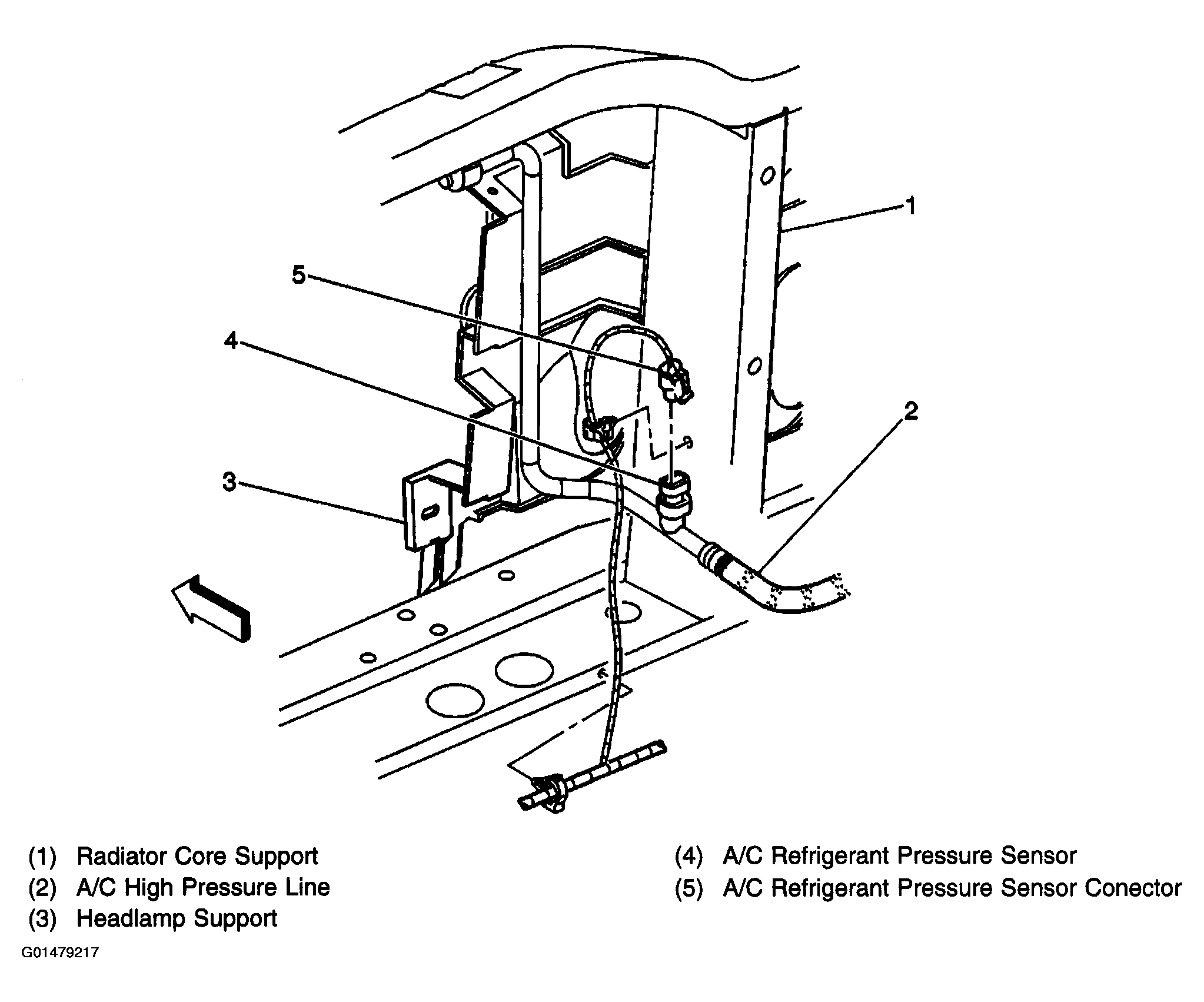

Fig 4: A/C Refrigerant Pressure Sensor

G01479217

Courtesy of GENERAL MOTORS CORP.

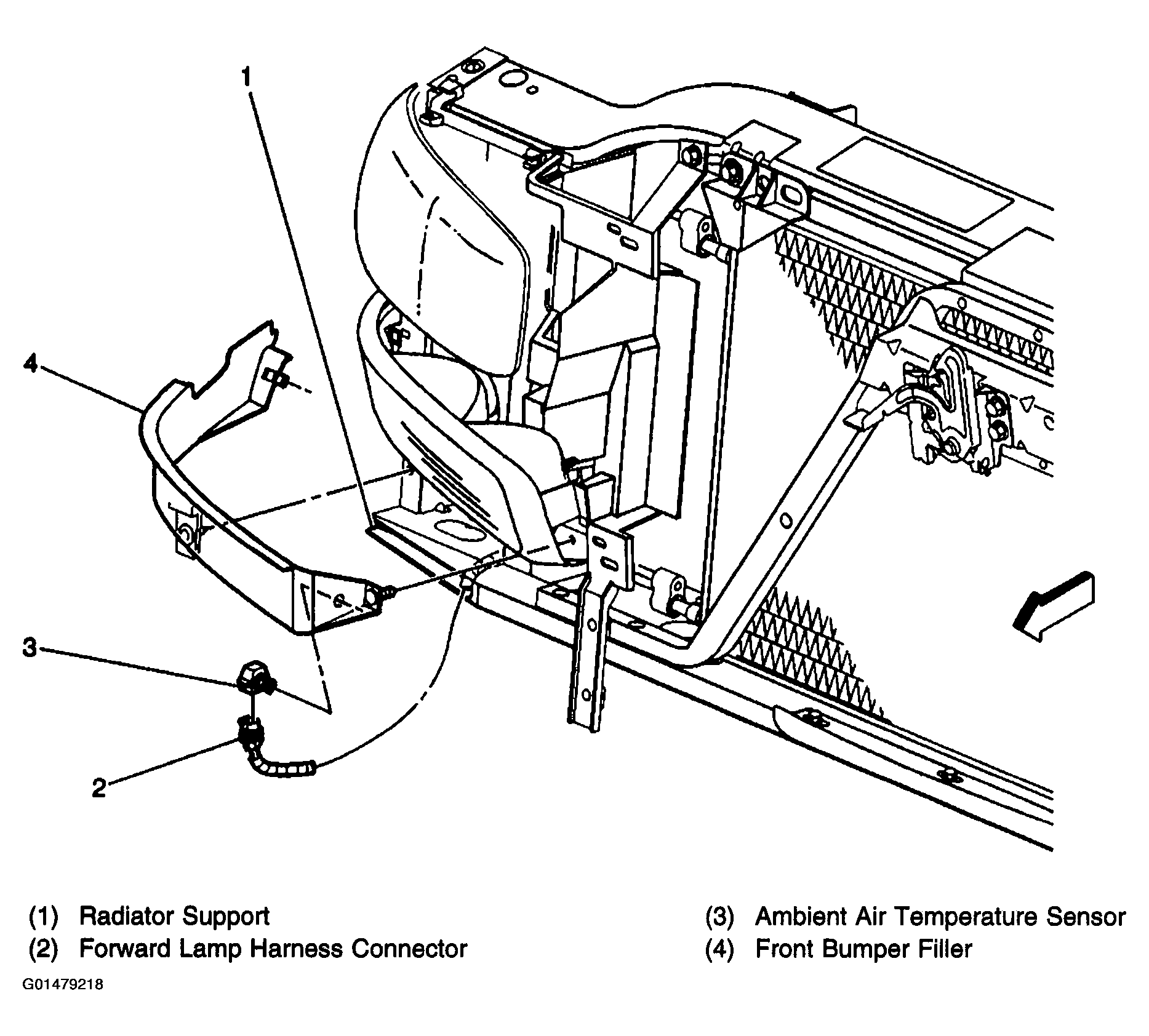

Fig 5: Ambient Air Temperature Sensor

G01479218

Courtesy of GENERAL MOTORS CORP.

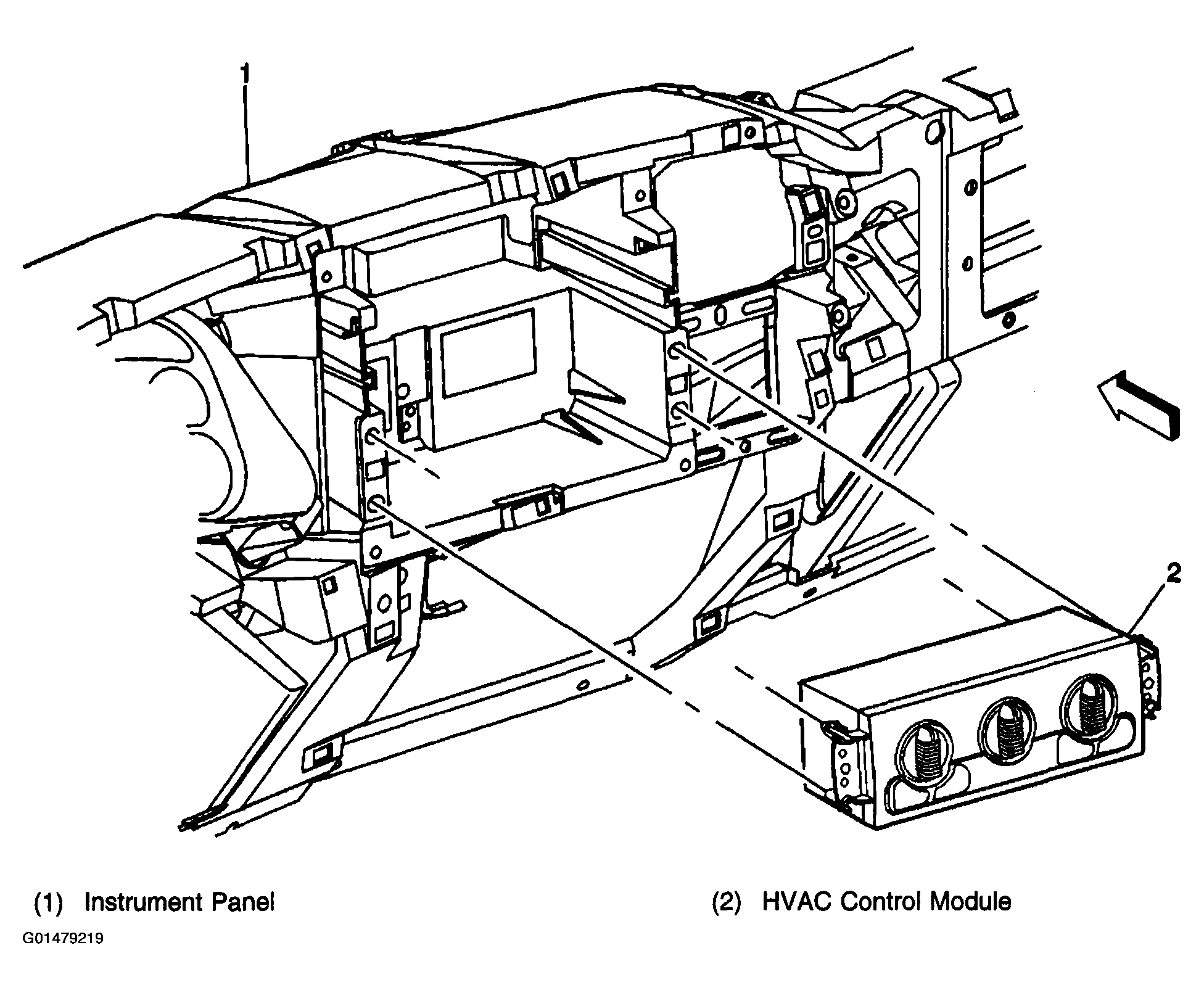

Fig 6: HVAC Control Module

G01479219

Courtesy of GENERAL MOTORS CORP.

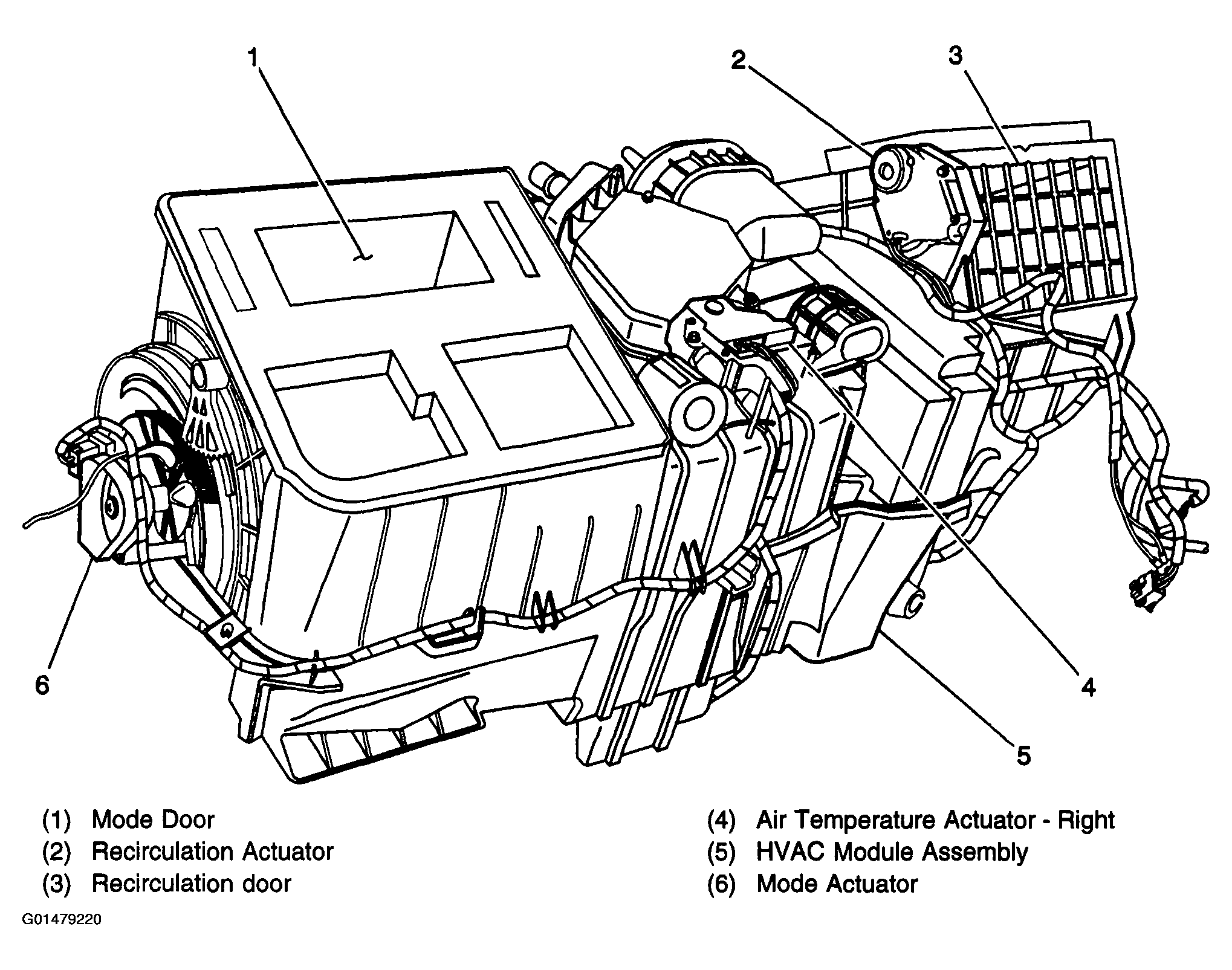

Fig 7: HVAC Module Assembly - Top

G01479220

Courtesy of GENERAL MOTORS CORP.

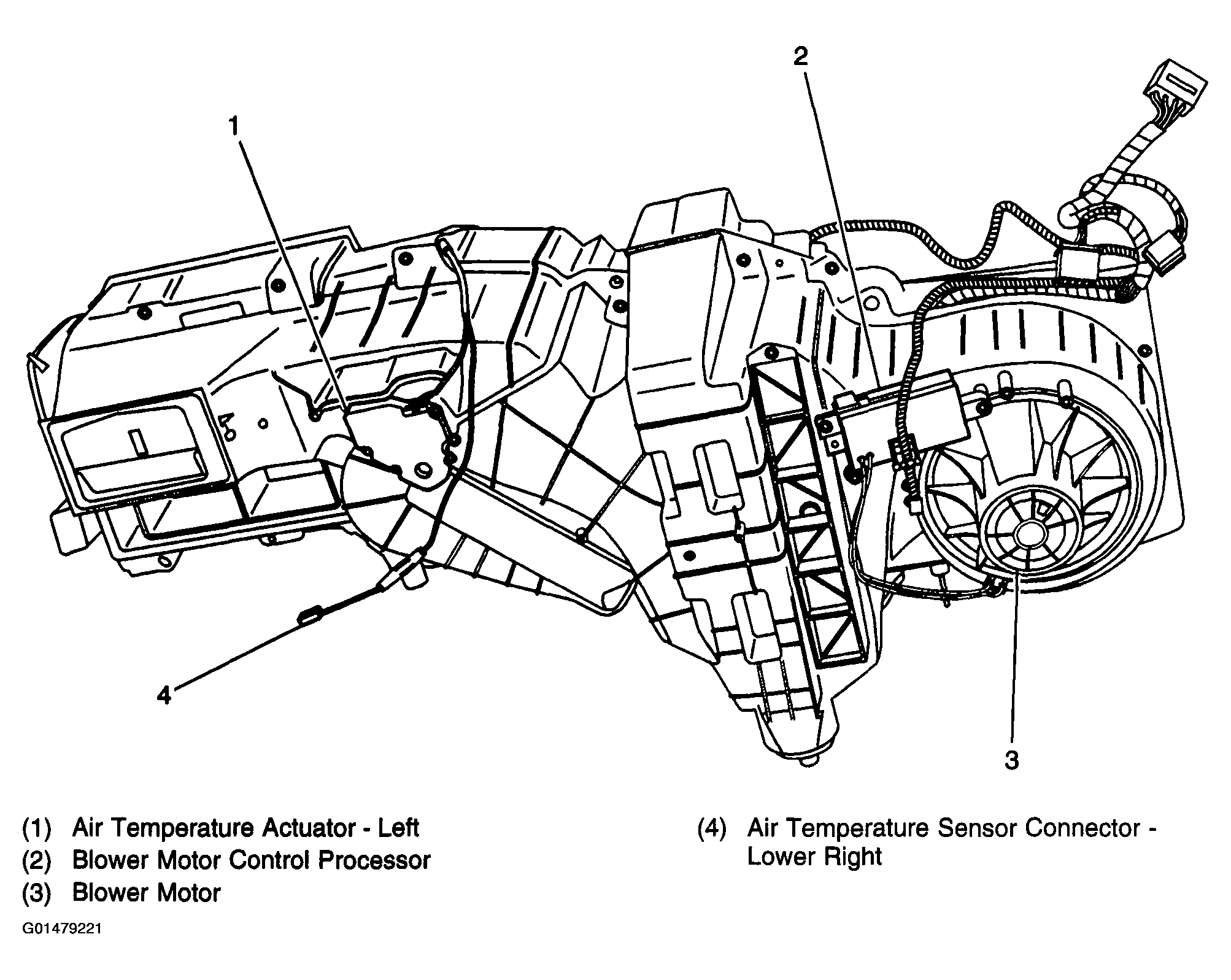

Fig 8: HVAC Module Assembly - Bottom

G01479221

Courtesy of GENERAL MOTORS CORP.
