Component Location Graphics

WARNING: This page is about a different car, the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

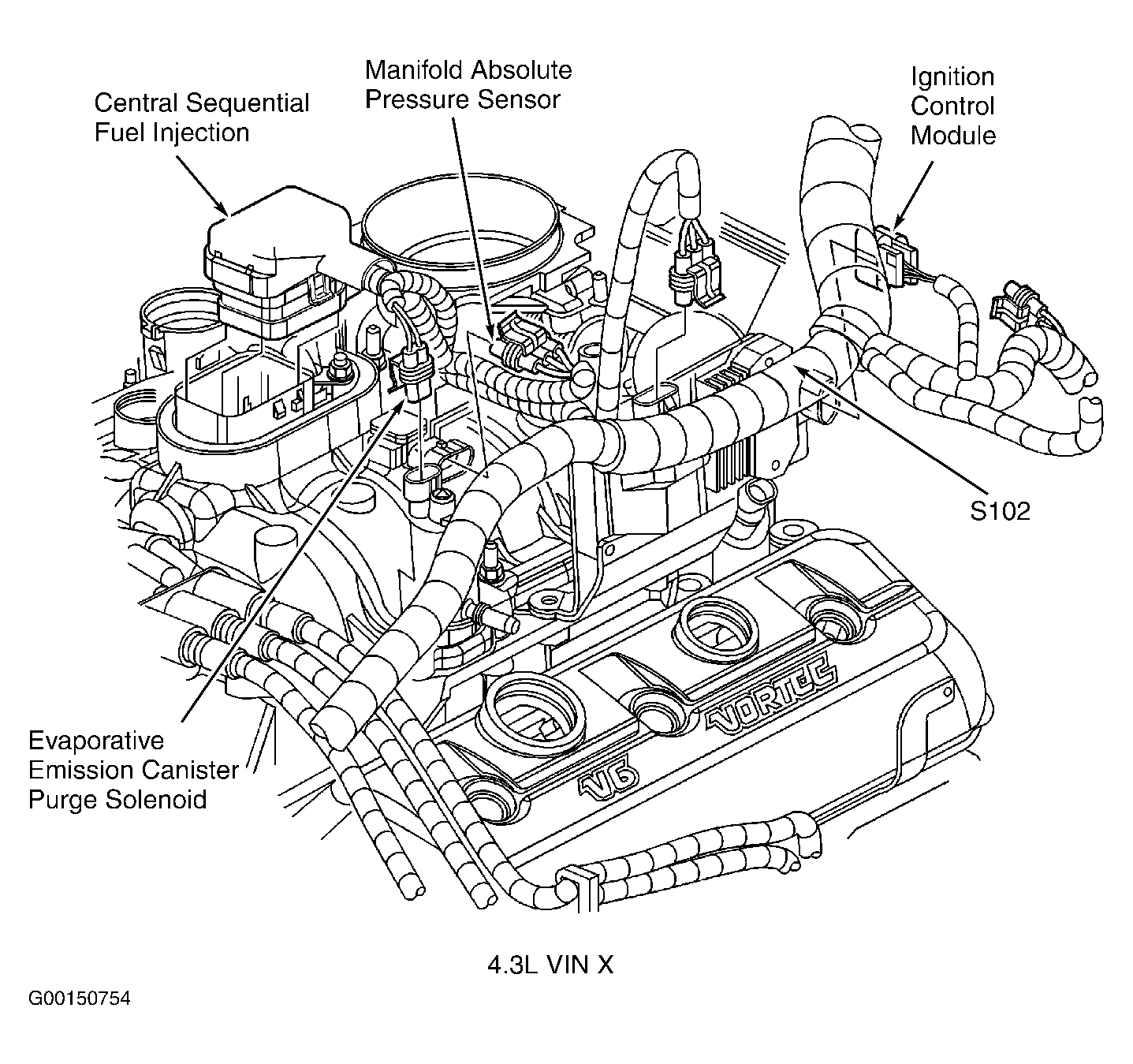

Fig 1: Top Right Side Of Engine (4.3L VIN X)

G00150754

Courtesy of GENERAL MOTORS CORP.

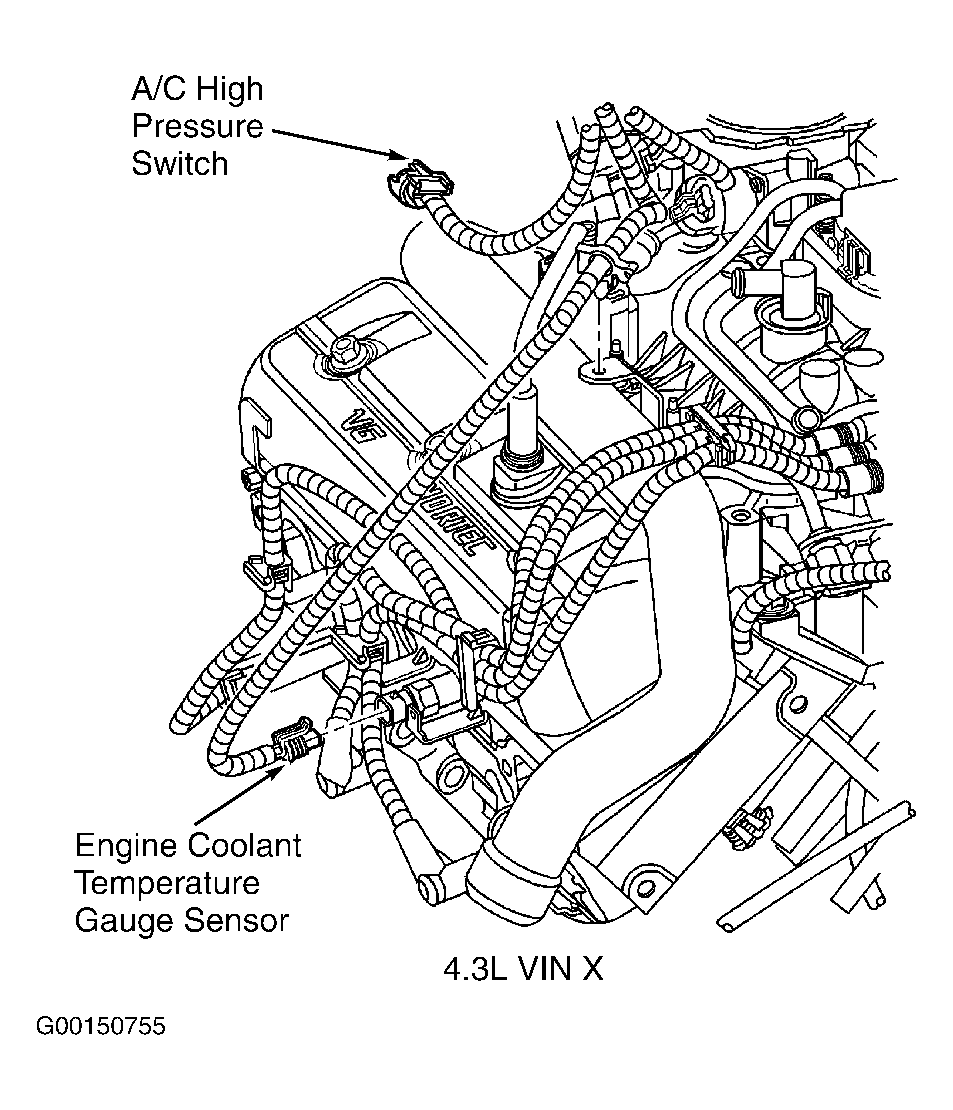

Fig 2: Left Side Of Engine (4.3L VIN X)

G00150755

Courtesy of GENERAL MOTORS CORP.

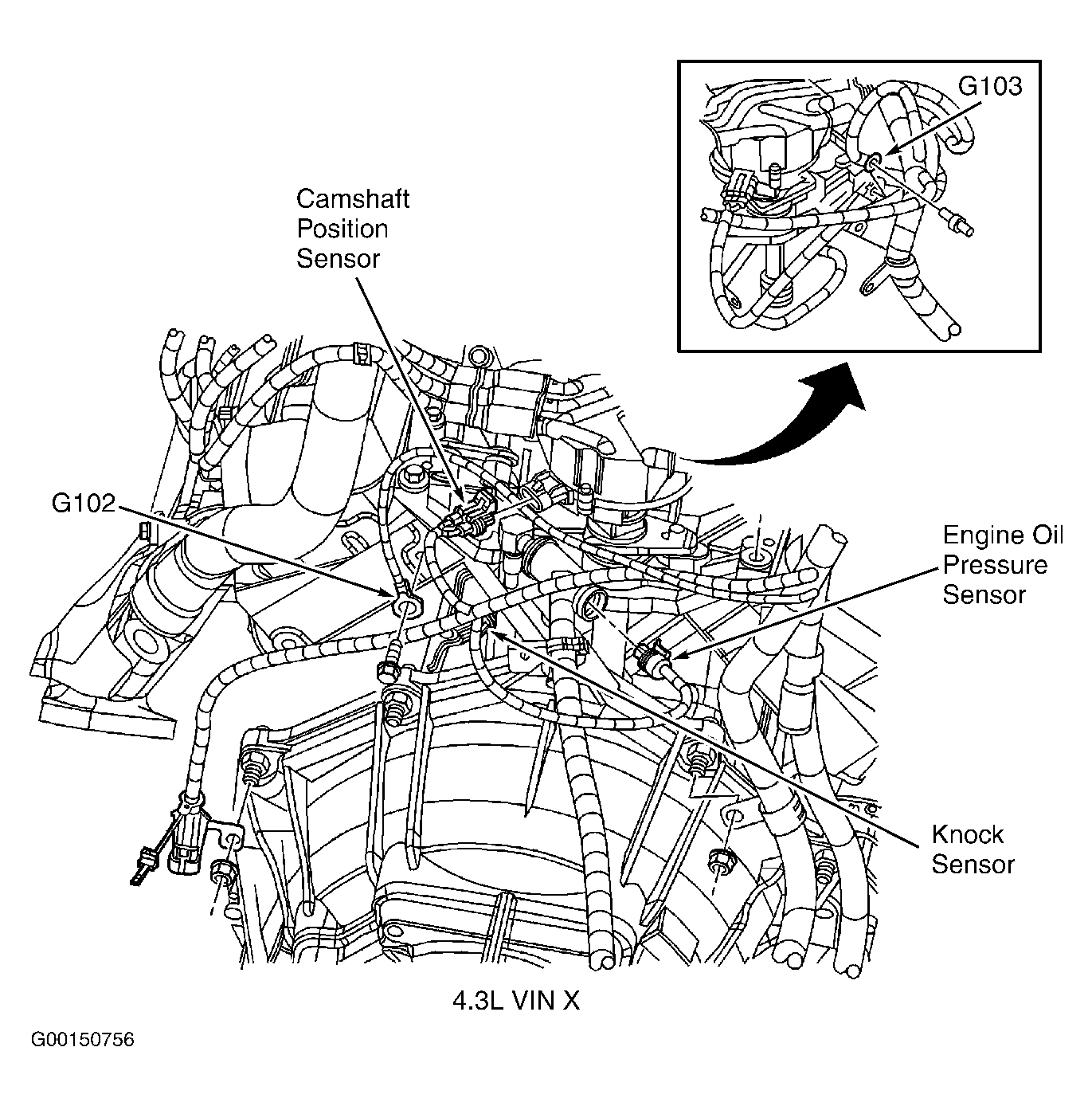

Fig 3: Rear Of Engine (4.3L VIN X)

G00150756

Courtesy of GENERAL MOTORS CORP.

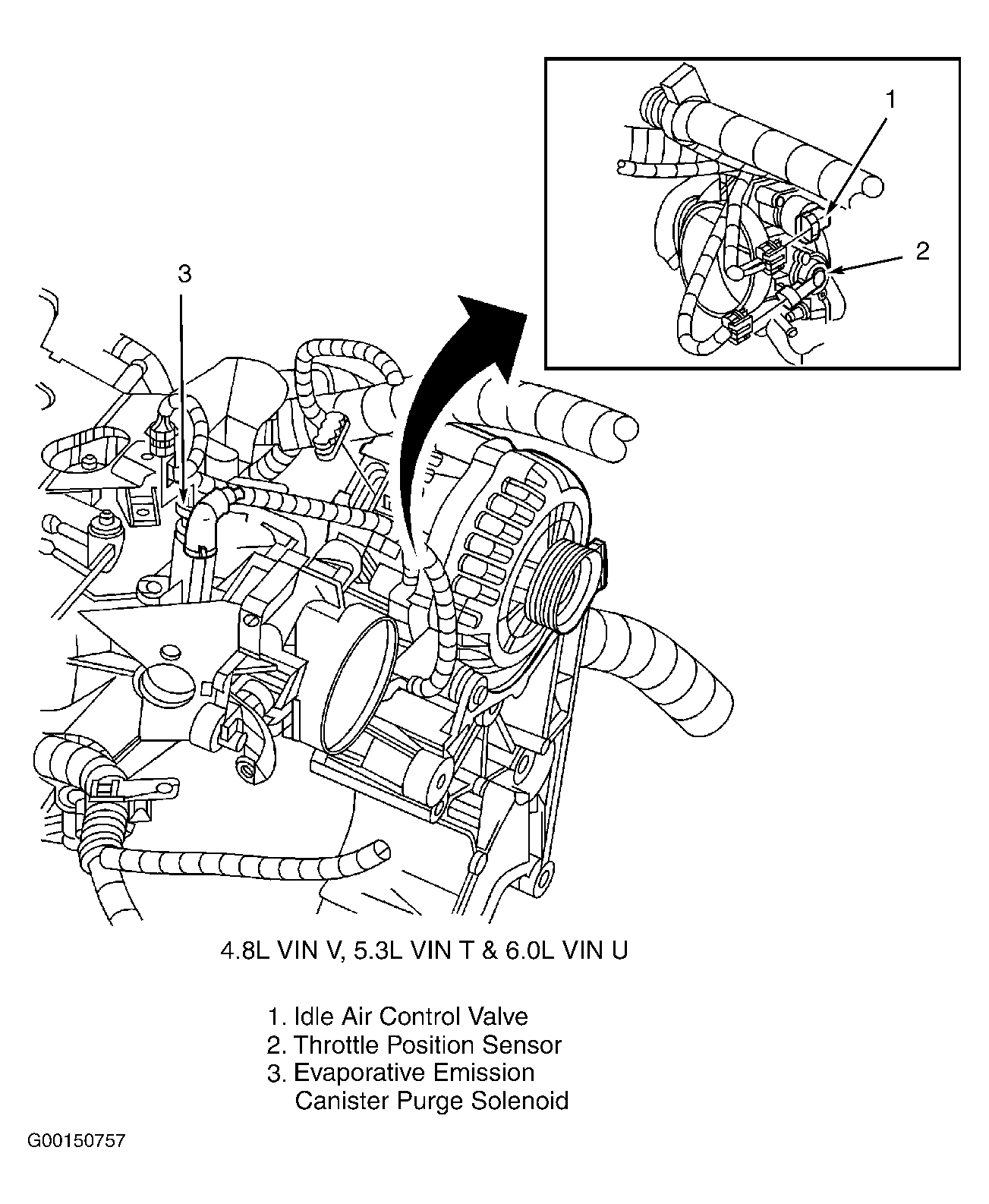

Fig 4: Front Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

G00150757

Courtesy of GENERAL MOTORS CORP.

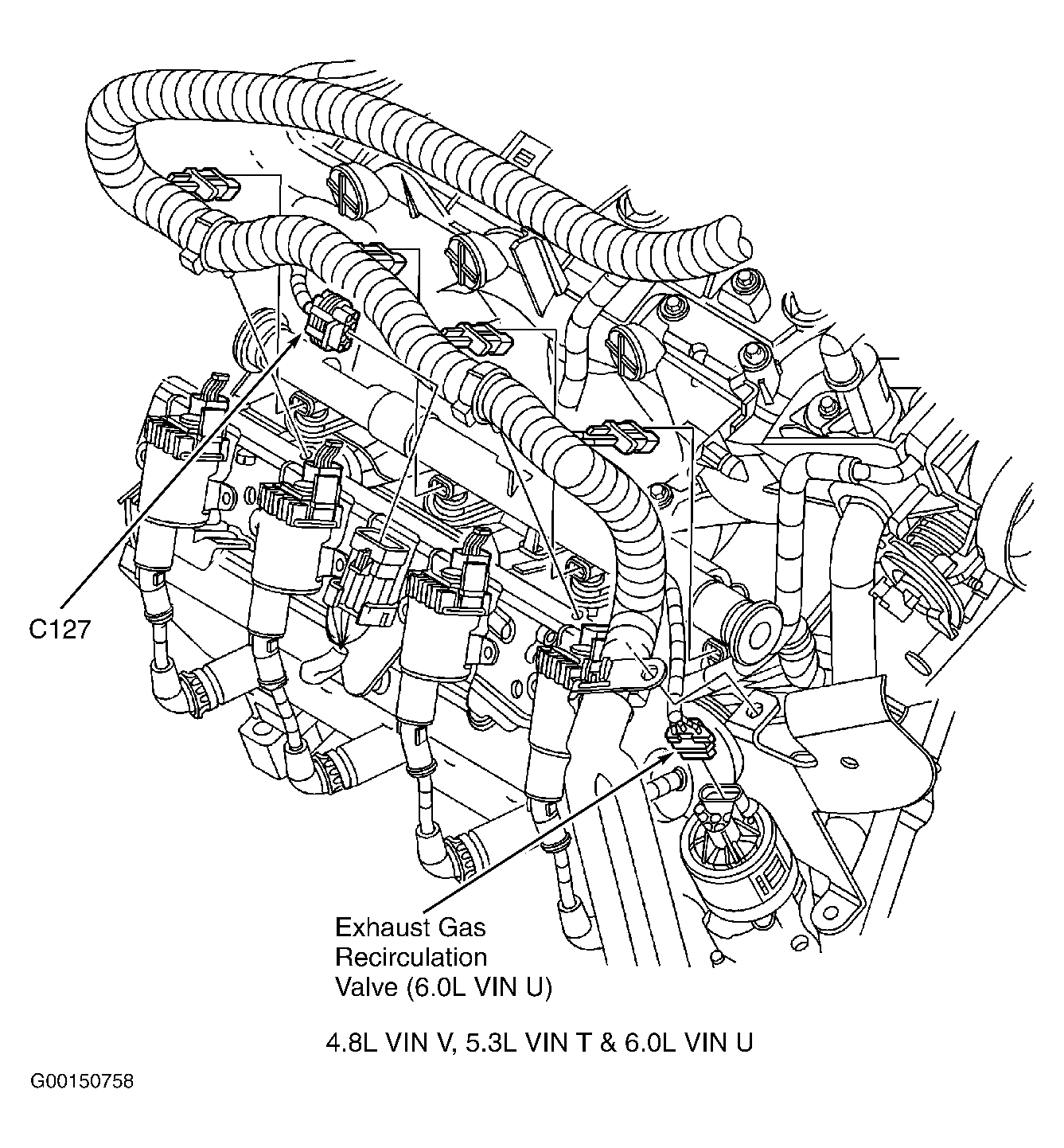

Fig 5: Right Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

G00150758

Courtesy of GENERAL MOTORS CORP.

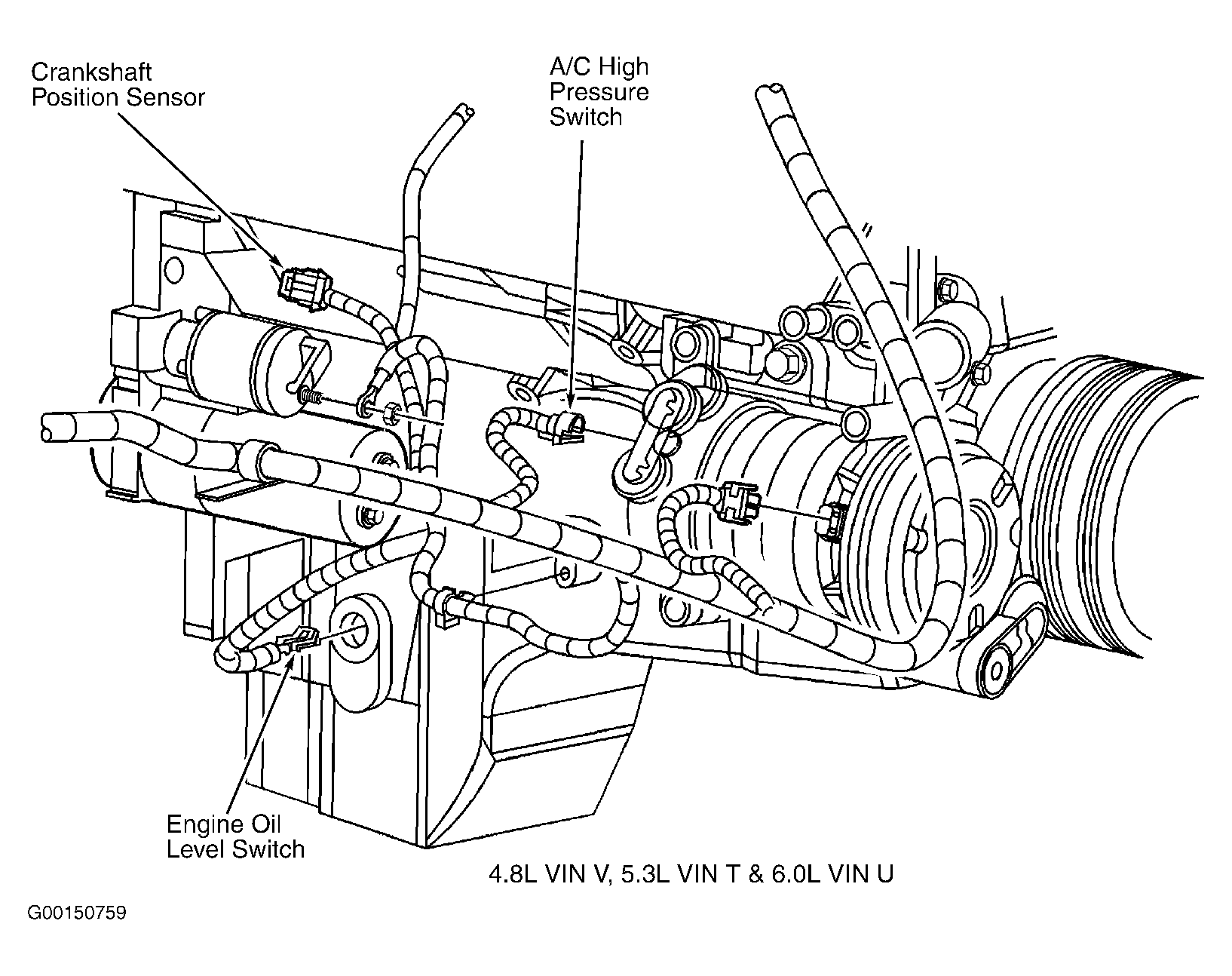

Fig 6: Lower Right Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

G00150759

Courtesy of GENERAL MOTORS CORP.

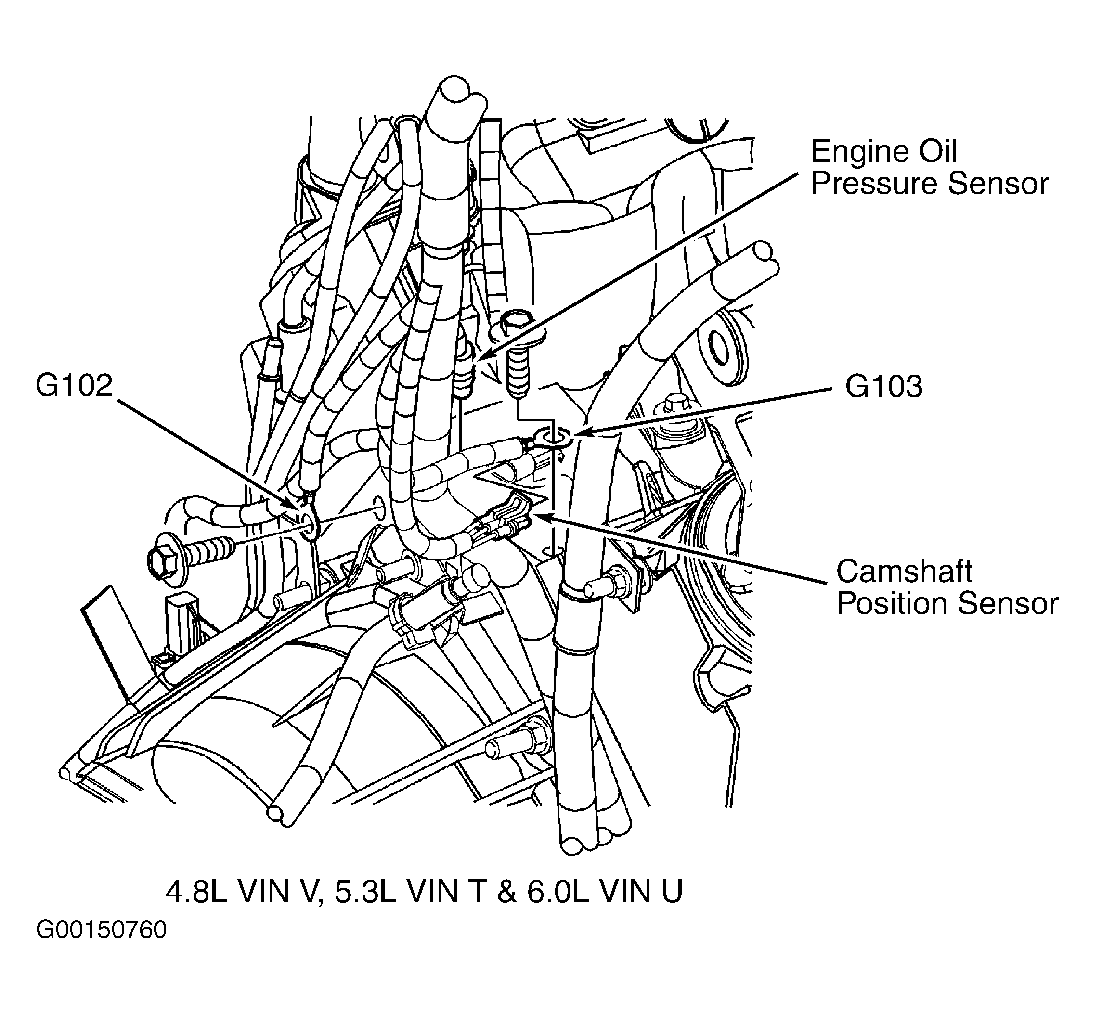

Fig 7: Rear Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

G00150760

Courtesy of GENERAL MOTORS CORP.

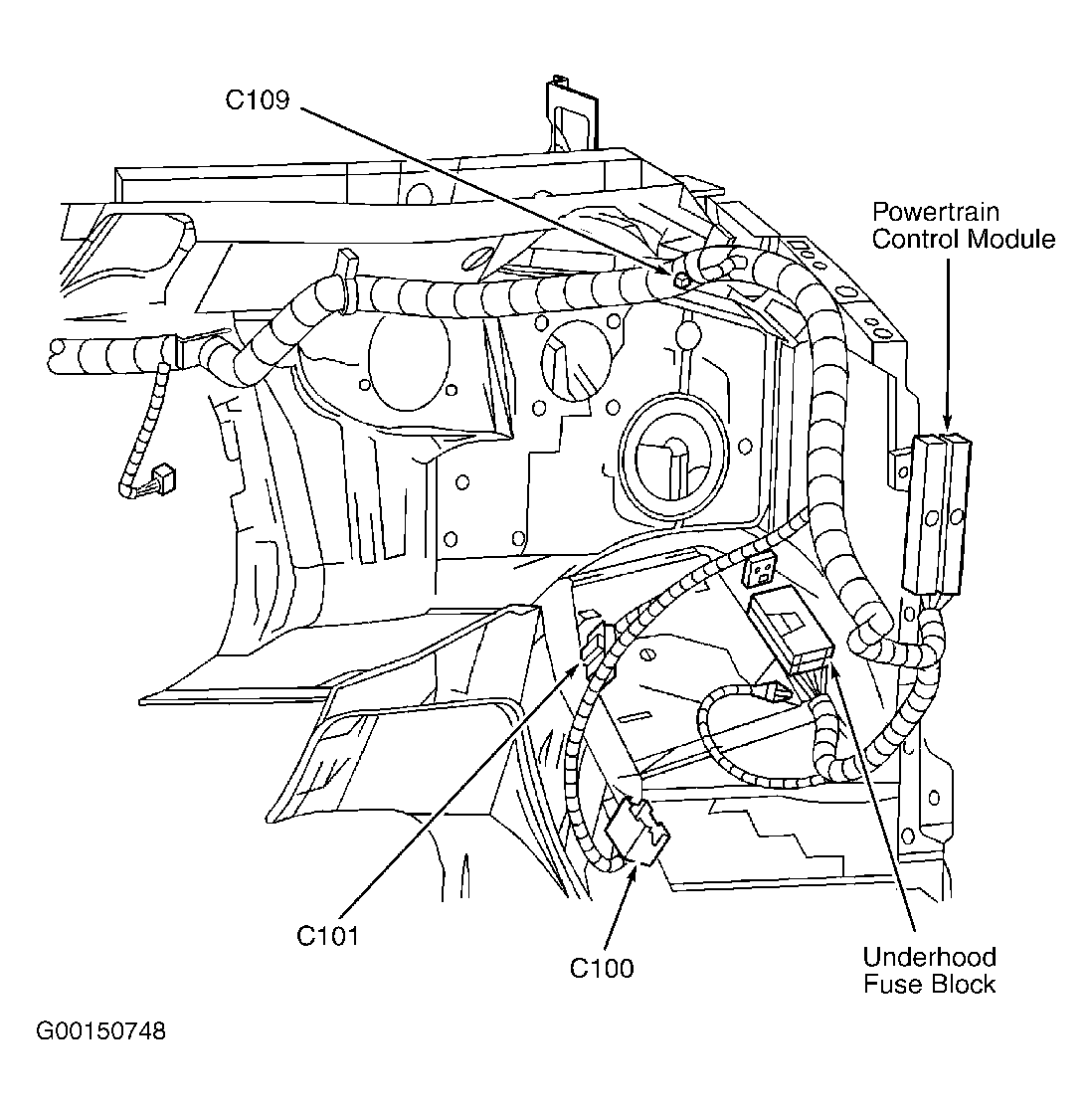

Fig 8: Left Front Of Engine Compartment

G00150748

Courtesy of GENERAL MOTORS CORP.

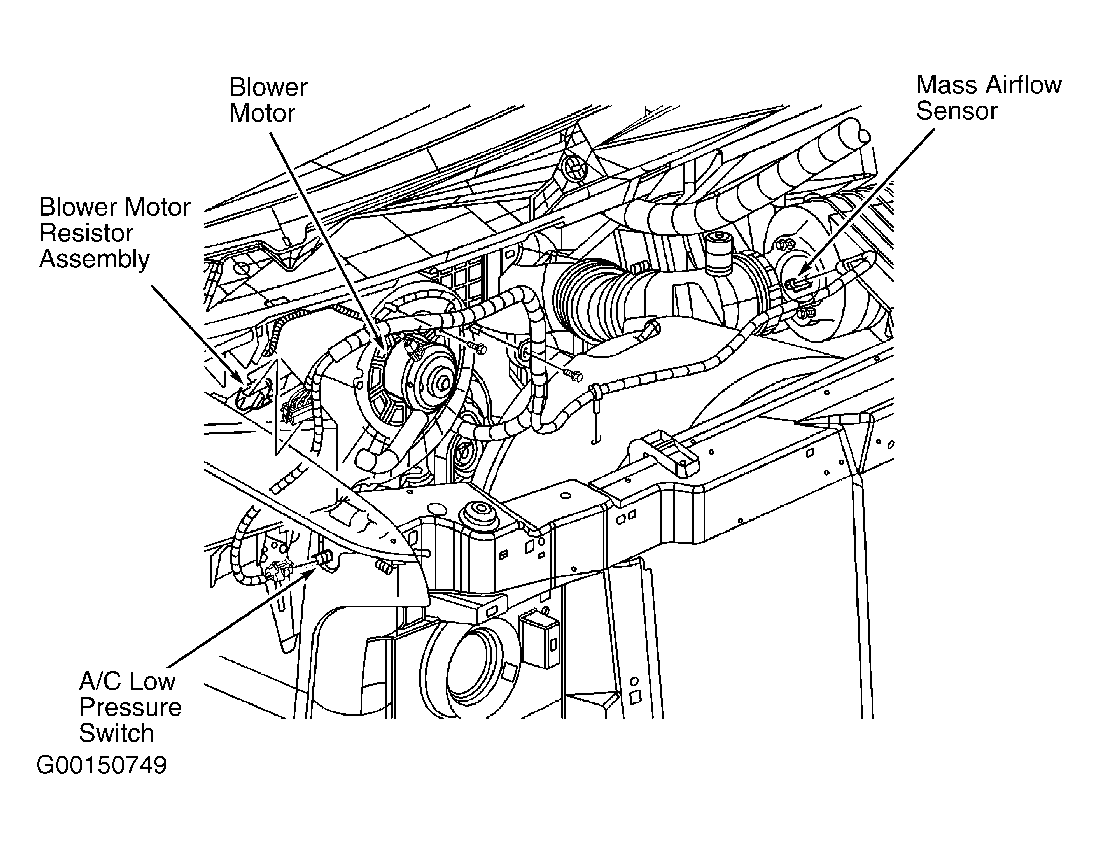

Fig 9: Right Rear Of Engine Compartment

G00150749

Courtesy of GENERAL MOTORS CORP.

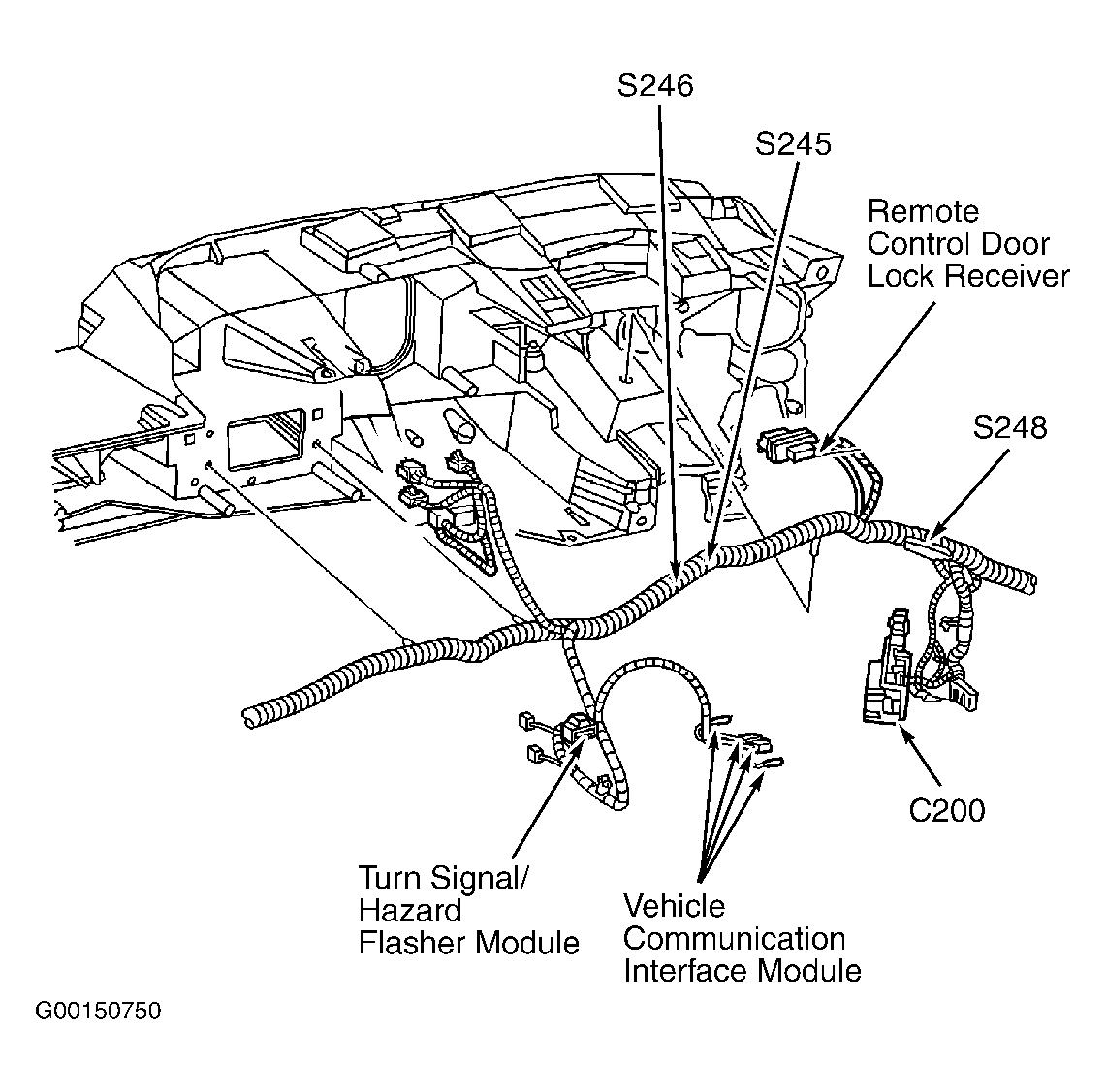

Fig 10: Behind Left Side Of Dash

G00150750

Courtesy of GENERAL MOTORS CORP.

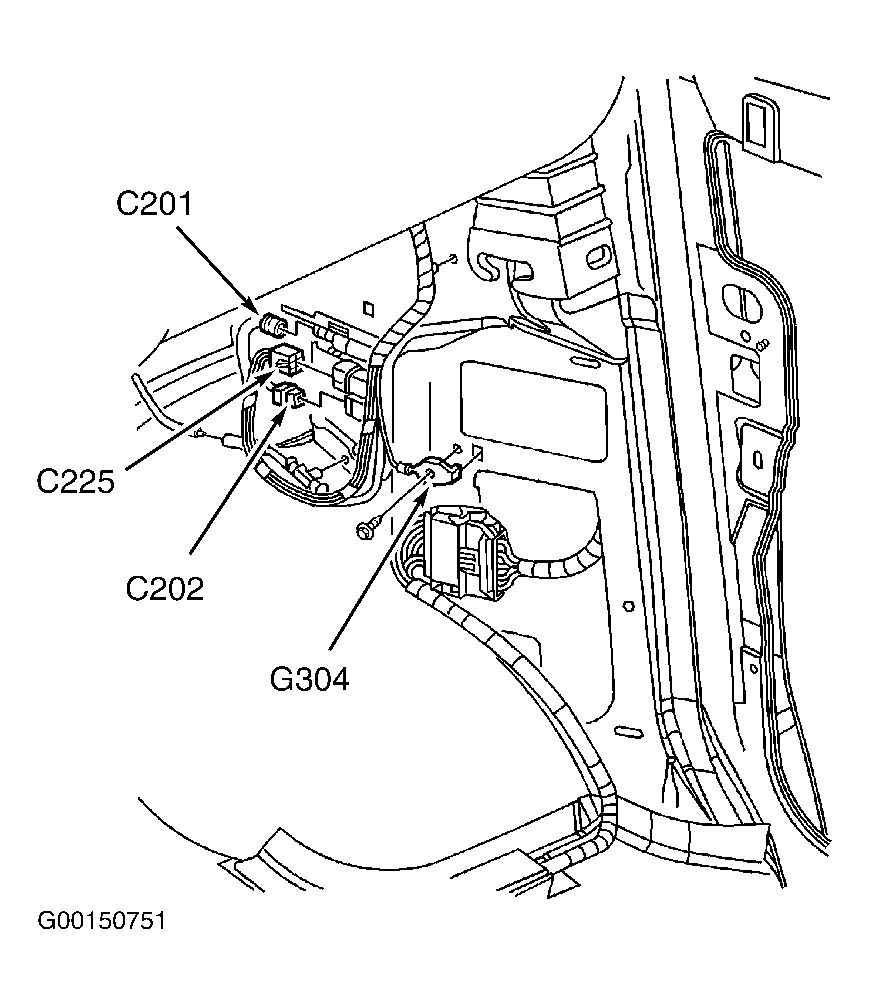

Fig 11: Right Kick Panel

G00150751

Courtesy of GENERAL MOTORS CORP.

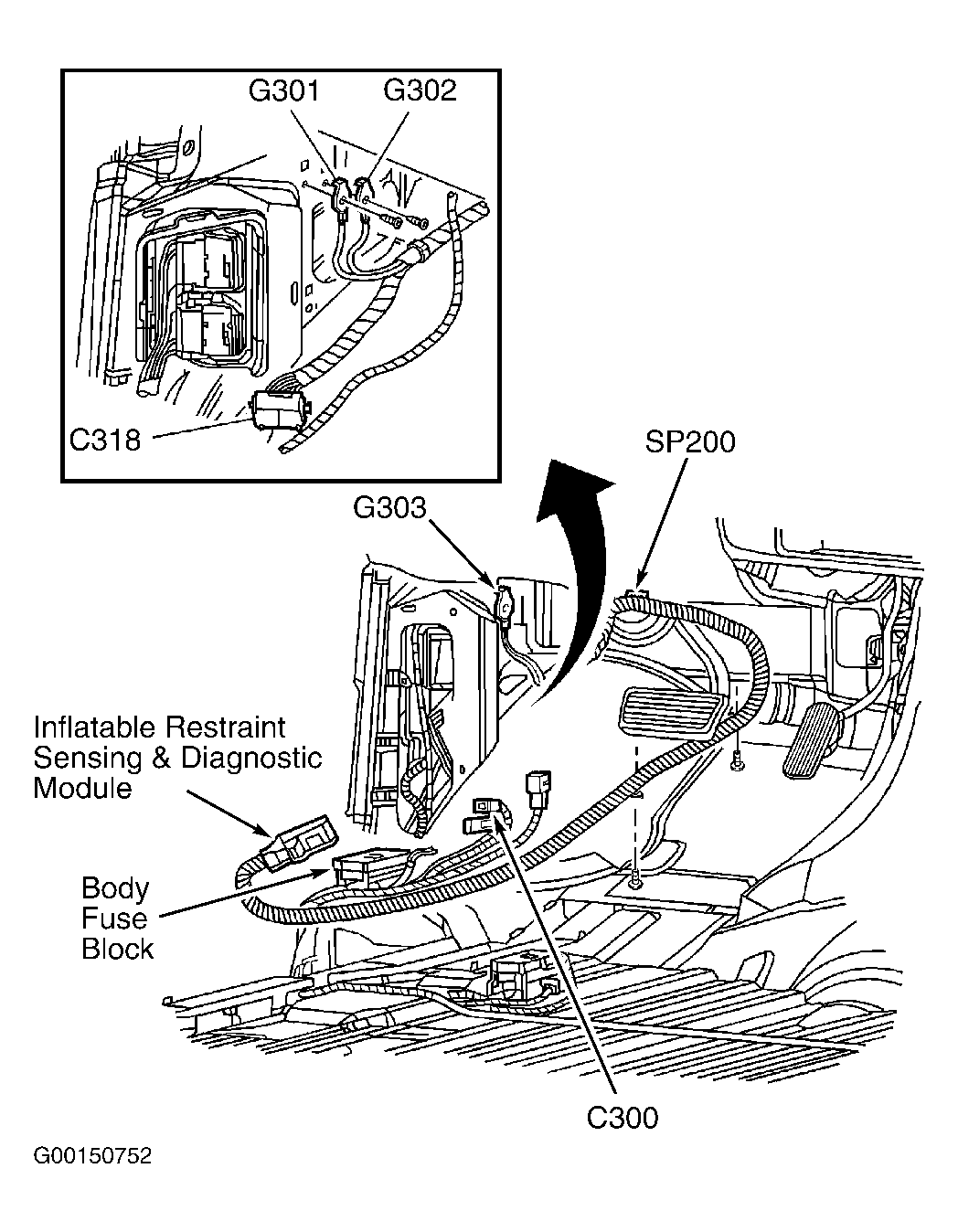

Fig 12: Left Kick Panel

G00150752

Courtesy of GENERAL MOTORS CORP.

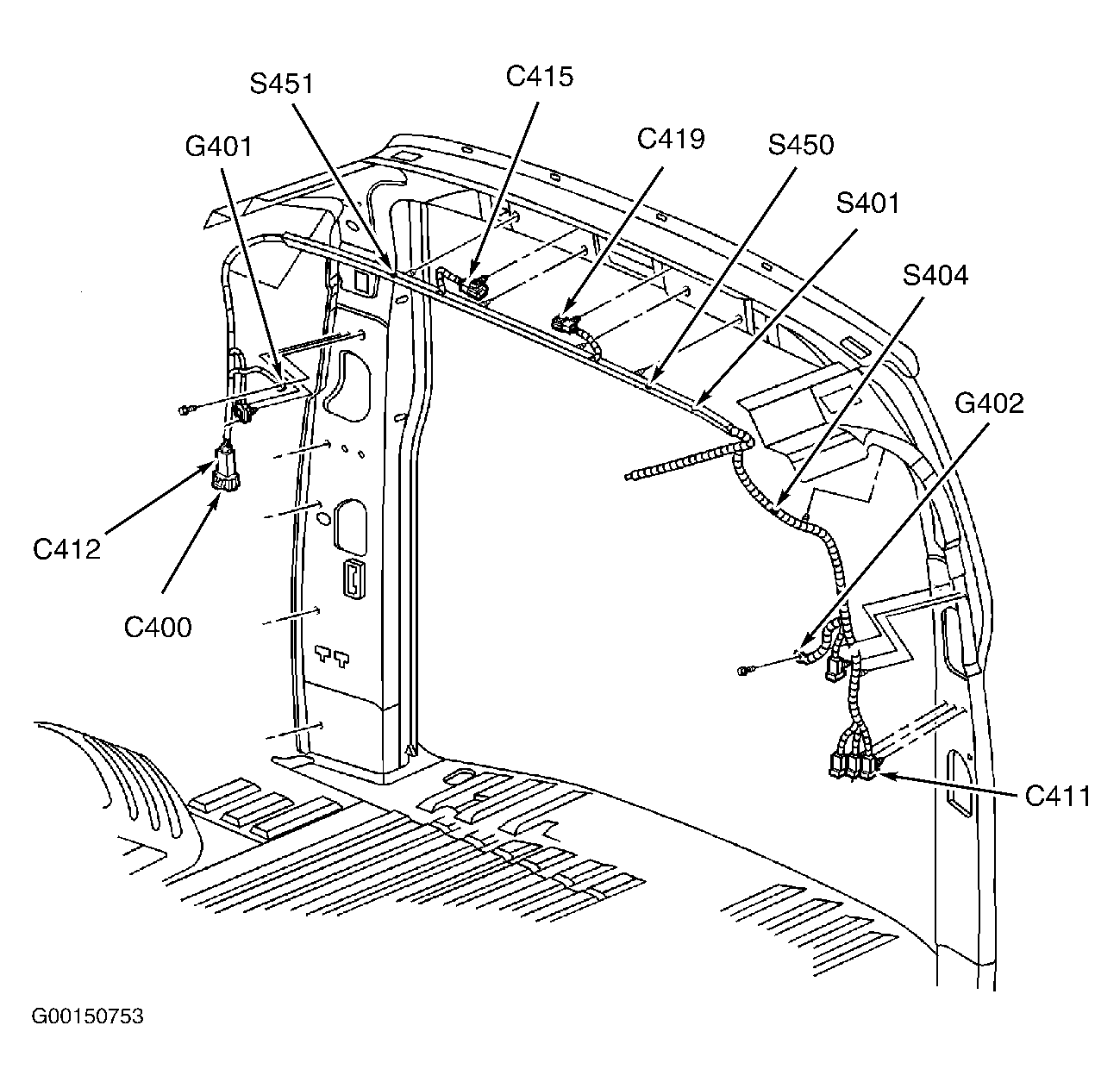

Fig 13: Rear Of Vehicle

G00150753

Courtesy of GENERAL MOTORS CORP.
