Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp switch into accessary switch housing.
  2. Connect the electrical connectors.
  3. Install the accessary switch housing.
  4. Install the instrument panel bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .

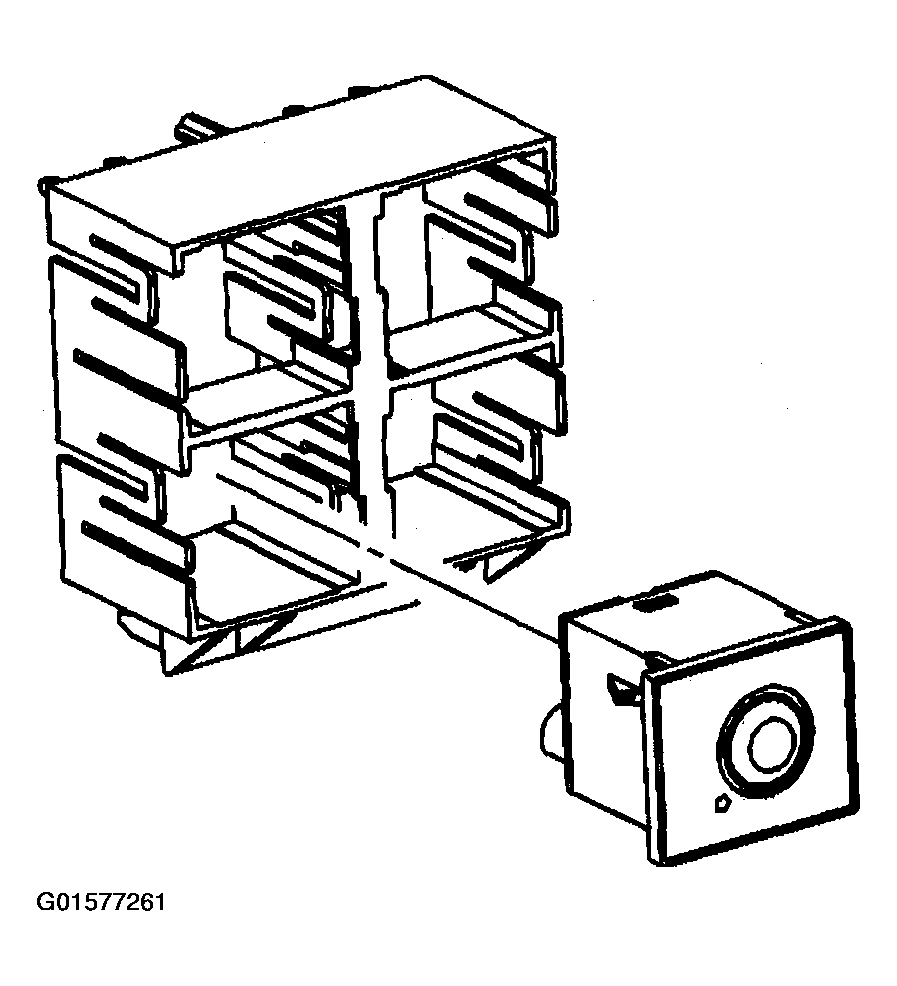

    Fig 1: Installing Rear Fog Lamp Switch
    G01577261Courtesy of GENERAL MOTORS CORP.
