Center High Mount Stop Lamp (CHMSL)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

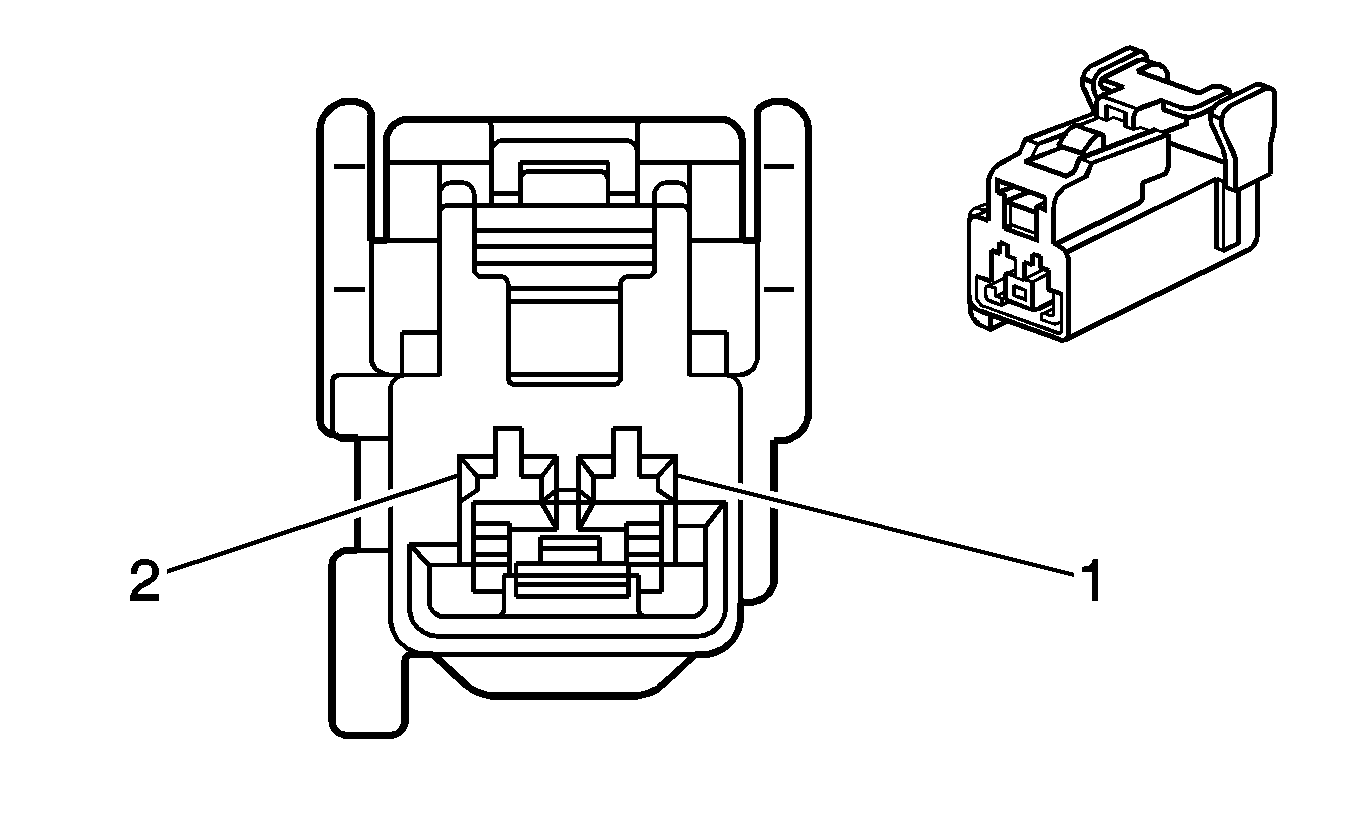

Fig 1: Center High Mount Stop Lamp (CHMSL) Connector End Views
GM1282958Courtesy of GENERAL MOTORS CORP.
Center High Mount Stop Lamp (CHMSL) Connector Parts Information

Connector Part Information
  • OEM: 7283-5530-40
  • Service: See Catalog
  • Description: 2-Way F (L-GY)
Center High Mount Stop Lamp (CHMSL) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 L-BU 20 Stop Lamp Switch Signal
2 BK 650 Ground
