PRNDL Lamp
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP. PRNDL Lamp Connector Parts Information
Connector Part Information
- OEM: 12033701
- Service: See Catalog
- Description: Lamp Socket Bulb Base Type W-2 Axial (BK)
|

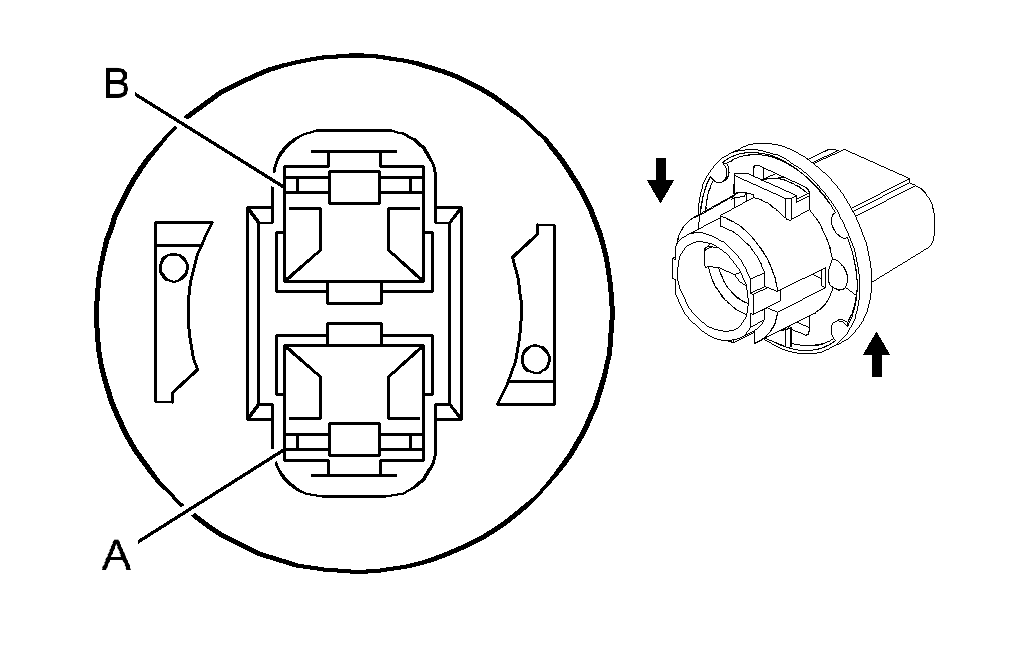

PRNDL Lamp Connector Terminal Identification
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
GY |
8 |
I/P Dimmer Lamps Switch Signal |
| B |
BK |
550 |
Ground |
