Installation Procedure
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

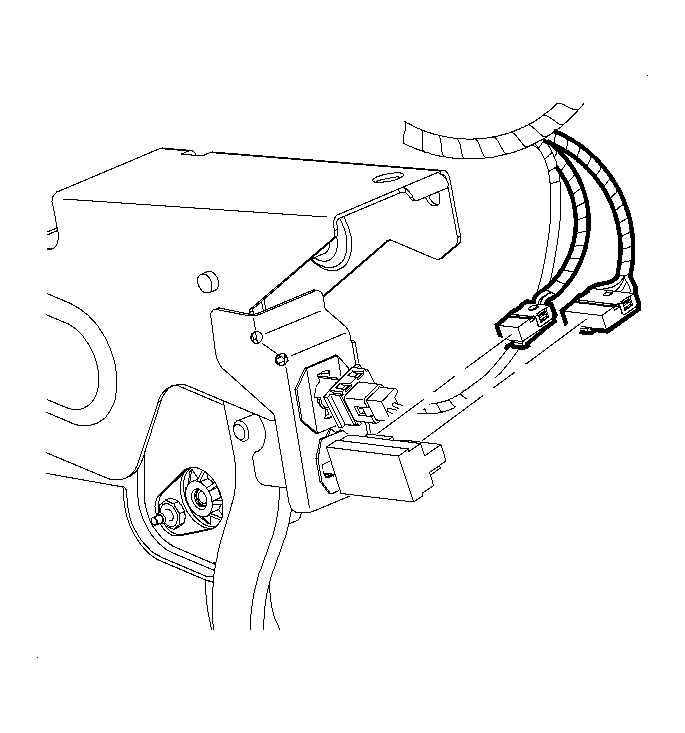

- Connect the electrical connectors on the stop lamp switch.

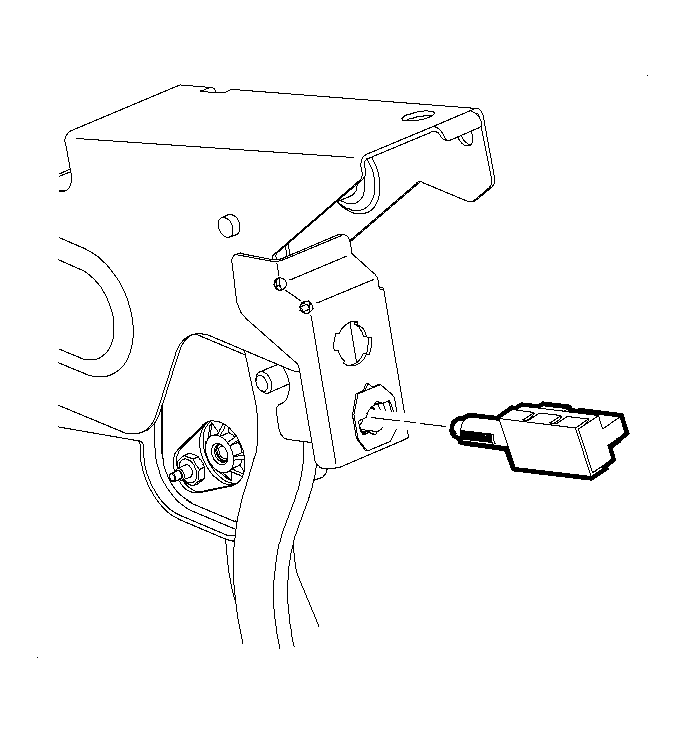

- Install the switch to the bracket by turning and pushing the switch until the switch bottoms on the brake pedal.
- Inspect the stop lamps for proper operation
NOTE:
Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.
IMPORTANT:
Do NOT depress the brake pedal assembly during the stop lamp switch installation. This will cause a drag condition on the brake.
IMPORTANT:
Inspect the retainer to insure that the locking tabs have locked into position and the retainer is in place.
