Mirror Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Windshield Wiper/Washer Switch |
| 3 | I/P Dimmer Control |
| 4 | Hazard Switch |
| 5 | Inflatable Restraint Front Passenger Presence System (PPS) Indicator |
| 6 | Fog Lamp (T96) or Traction Control Switch (NW9) |
| 7 | Ambient Light Sensor |
| 8 | Inflatable Restraint I/P Module |
| 9 | HVAC Control Module |
| 10 | Cigar Lighter (DT4) |
| 11 | Window Switch - Passenger |
| 12 | Heated Seat Switches |
| 13 | Window Switch - Driver |
| 14 | Outside Rearview Mirror Switch (D22/DG7) |
| 15 | Radio |
| 16 | Steering Wheel Control Switch - Right (Radio) |
| 17 | Inflatable Restraint Steering Wheel Module |
| 18 | Steering Wheel Control Switch - Left (Cruise Control) |
| 19 | Turn Signal/Multifunction Switch |

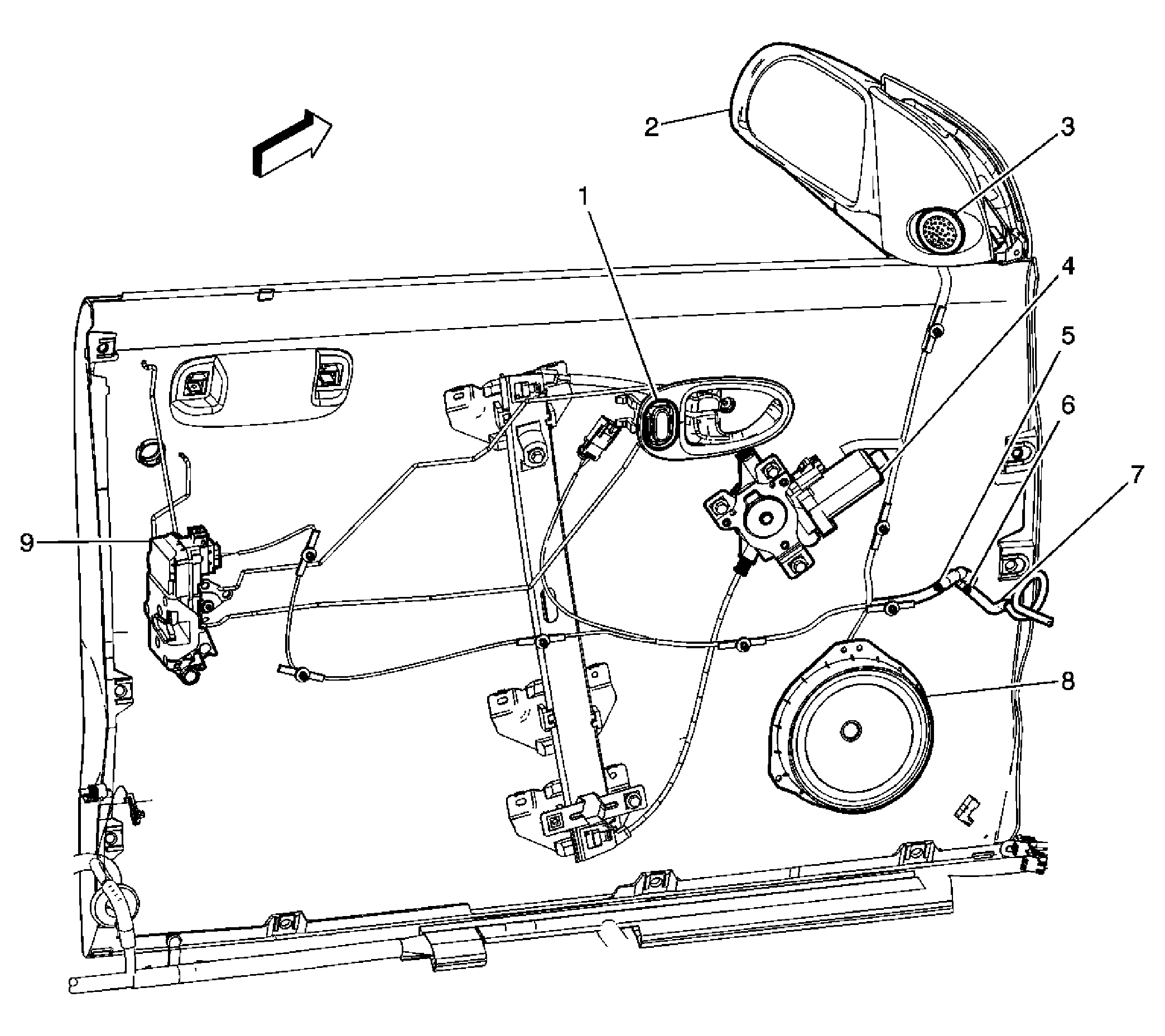

| Callout | Component Name |
|---|---|
| 1 | Door Lock Switch - Driver |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Speaker - LF (Tweeter) (UW6/WBM) |
| 4 | Window Motor - LF |
| 5 | S500 |
| 6 | S501 |
| 7 | Body Harness |
| 8 | Speaker - LF |
| 9 | Door Latch - Driver |

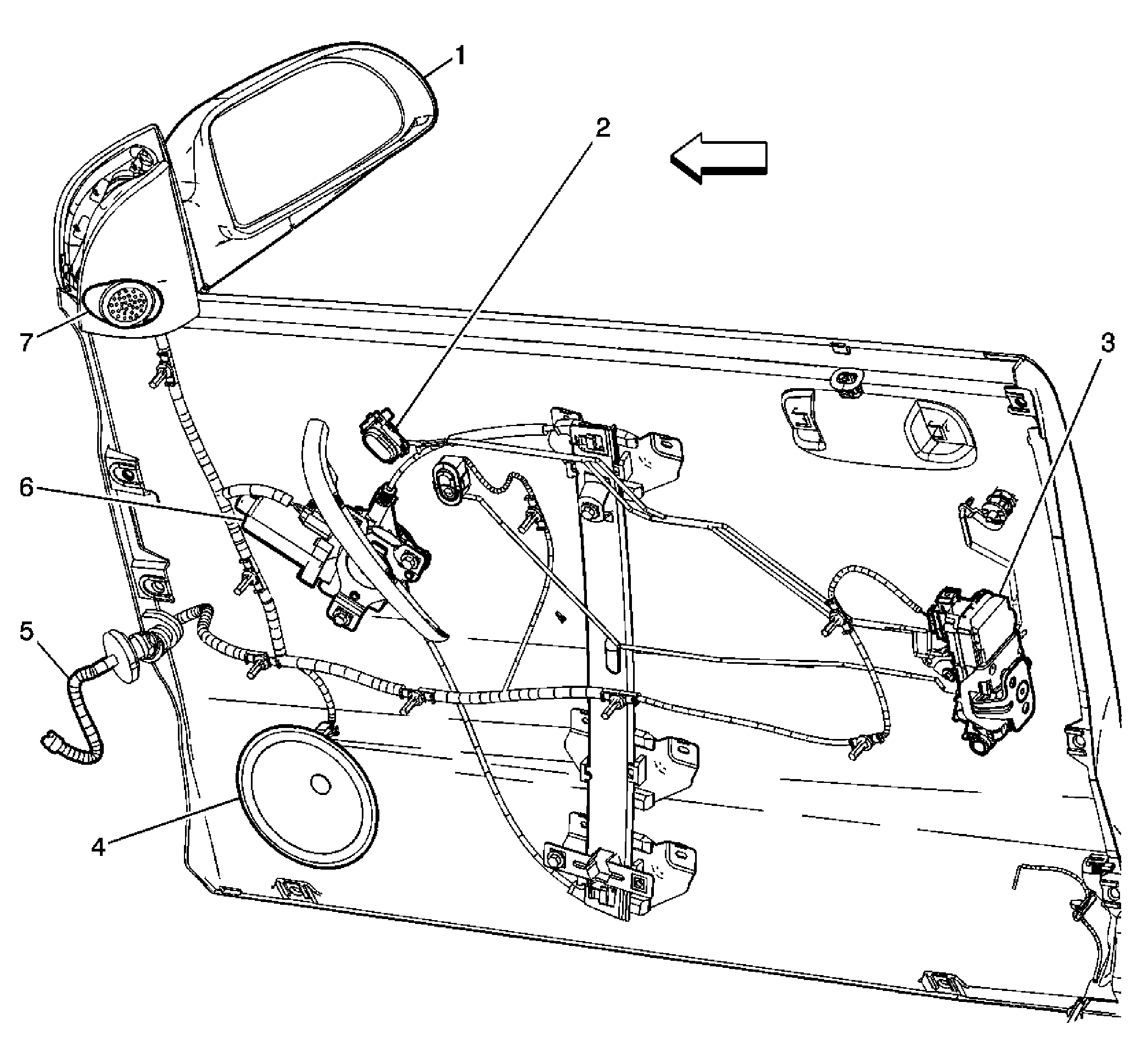

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Lock Switch - Front Passenger |
| 3 | Door Latch - Front Passenger |
| 4 | Speaker - LF |
| 5 | Body Harness |
| 6 | Window Motor - Front Passenger |
| 7 | Speaker - LF (Tweeter) (UW6/WBM) |
