Engine Electrical Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Cruise Release Switch |
| 2 | Stop Lamp Switch |
| 3 | Accelerator Pedal Position (APP) Sensor |
| 4 | Clutch Start Switch (M/T) |

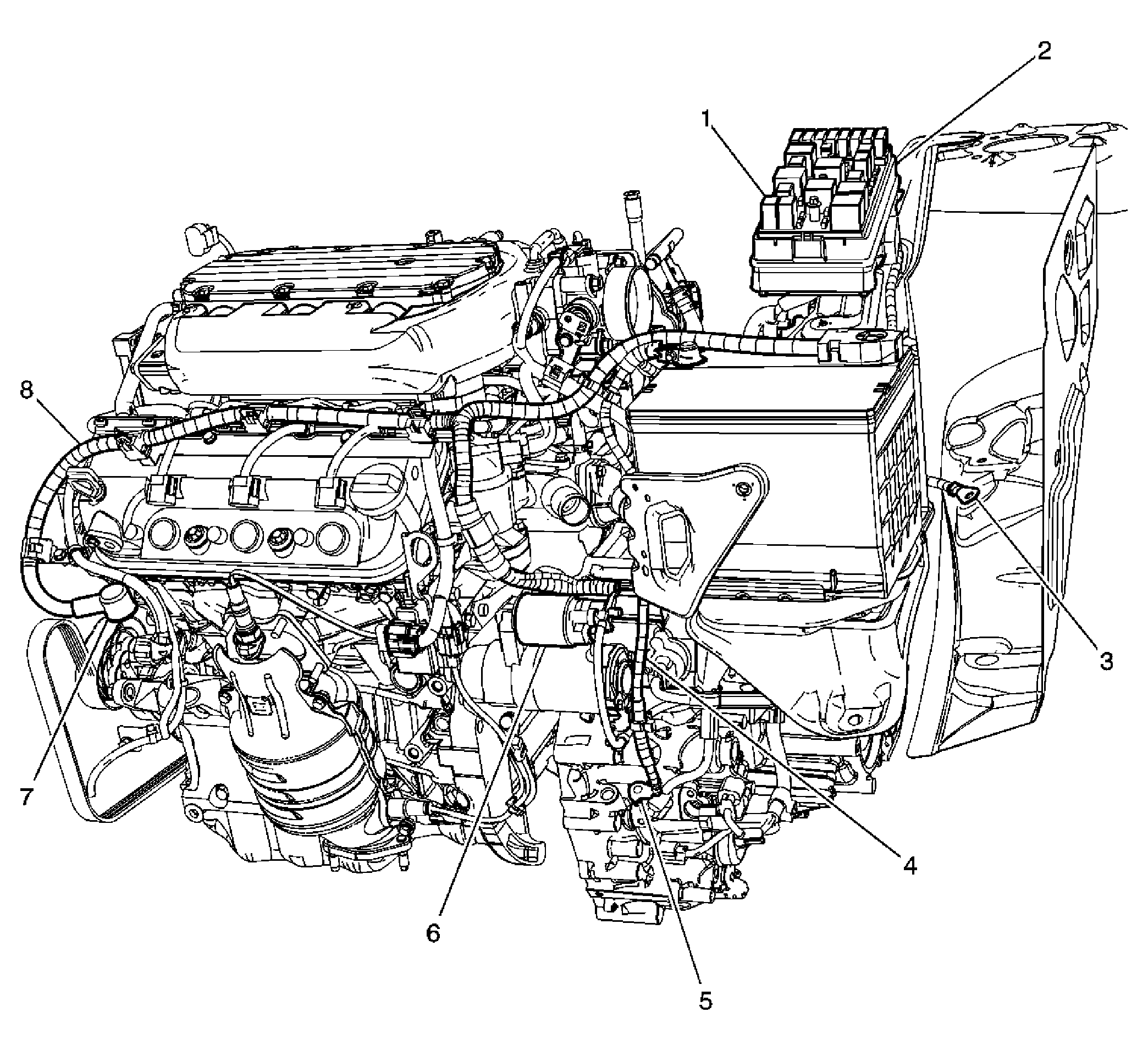

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | Battery Positive Voltage (Stud) |
| 3 | Battery |
| 4 | G103 |
| 5 | Negative Battery Cable |
| 6 | G105 |
| 7 | Battery Positive Cable |
| 8 | Starter |
| 9 | Generator |

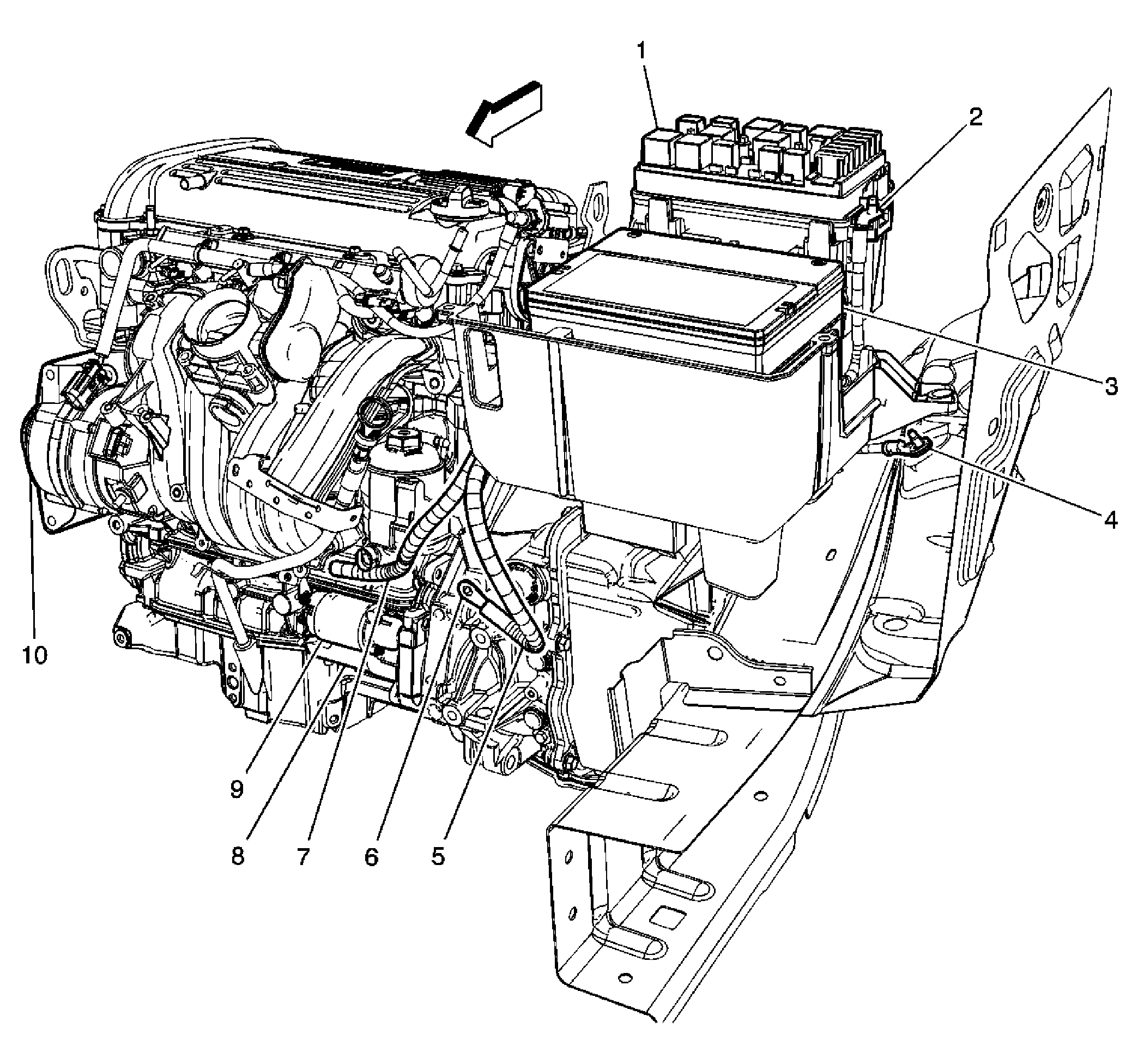

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | Battery Positive Voltage (Stud) |
| 3 | G105 |
| 4 | Negative Battery Cable |
| 5 | G103 |
| 6 | Starter |
| 7 | Generator Connector |
| 8 | Battery Positive Cable |

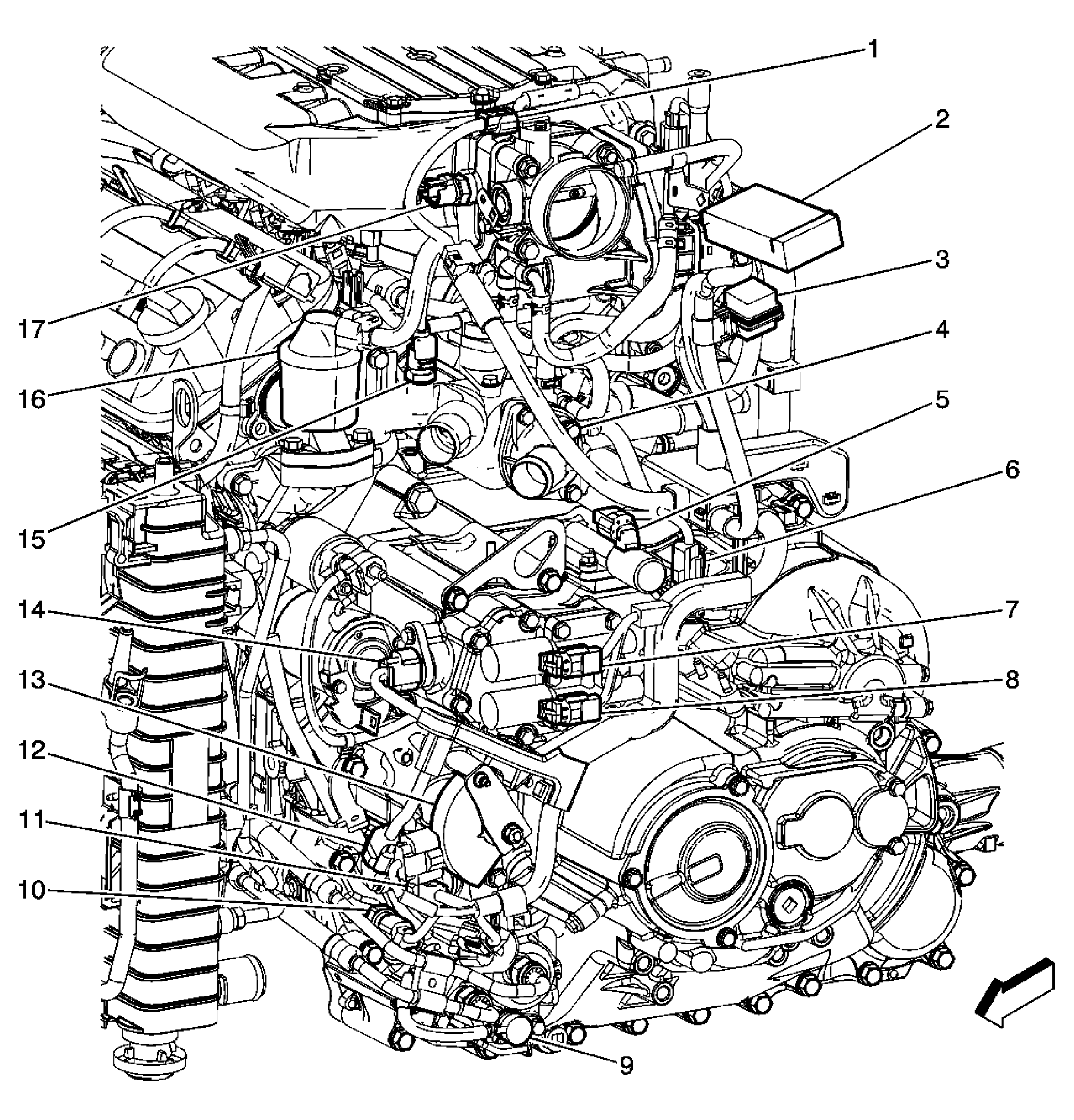

| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure (MAP) Sensor |
| 2 | Fuse Block-Underhood C2 |
| 3 | Starter Relay |
| 4 | G107 |
| 5 | Torque Converter Clutch (TCC) Pressure Control Solenoid Valve |
| 6 | 4th Clutch Pressure Switch |
| 7 | Clutch Pressure Control Solenoid Valve 1 |
| 8 | Clutch Pressure Control Solenoid Valve 2 |
| 9 | Transmission Fluid Temperature (TFT) Sensor |
| 10 | 3rd Clutch Pressure Switch |
| 11 | Transmission Output Shaft Speed Sensor |
| 12 | Transmission Input Shaft Speed Sensor |
| 13 | Park / Neutral Position (PNP) Switch |
| 14 | C100 Engine Harness to Transmission Harness |
| 15 | Engine Coolant Temperature (ECT) Sensor |
| 16 | Exhaust Gas Recirculation (EGR) Valve |
| 17 | Intake Air Temperature (IAT) Sensor 2 |
