Generator (w/ L61)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Generator (w/ L61) Connector Parts Information
Connector Part Information
|

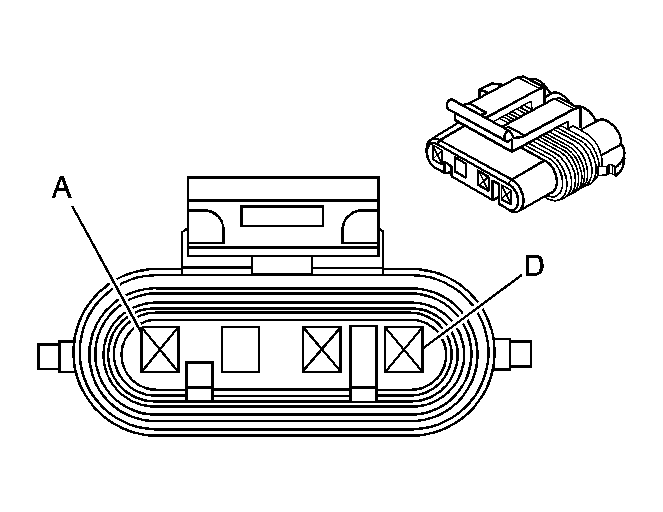

Generator (w/ L61) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | - | - | Not Used |
| B | RD | 225 | Generator Turn On Signal |
| C-D | - | - | Not Used |
