Generator (w/ L66)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Generator (w/ L66) Connector Parts Information
Connector Part Information
|

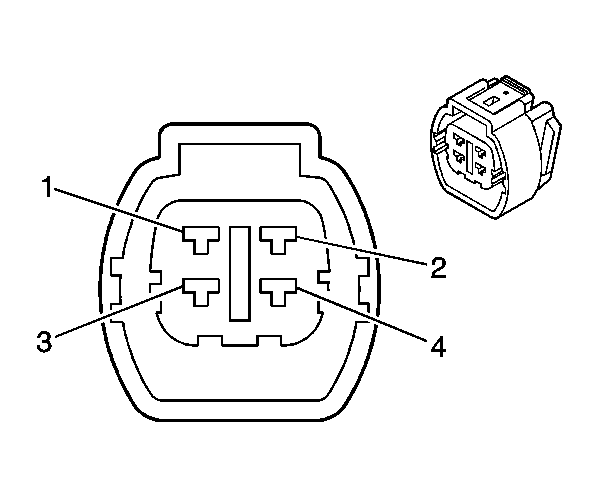

Generator (w/ L66) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1-2 | - | - | Not Used |
| 3 | WH/RD | 23 | Generator Field Duty Cycle Signal |
| 4 | WH/BU | 225 | Generator Turn On Signal |
