Immobilizer Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

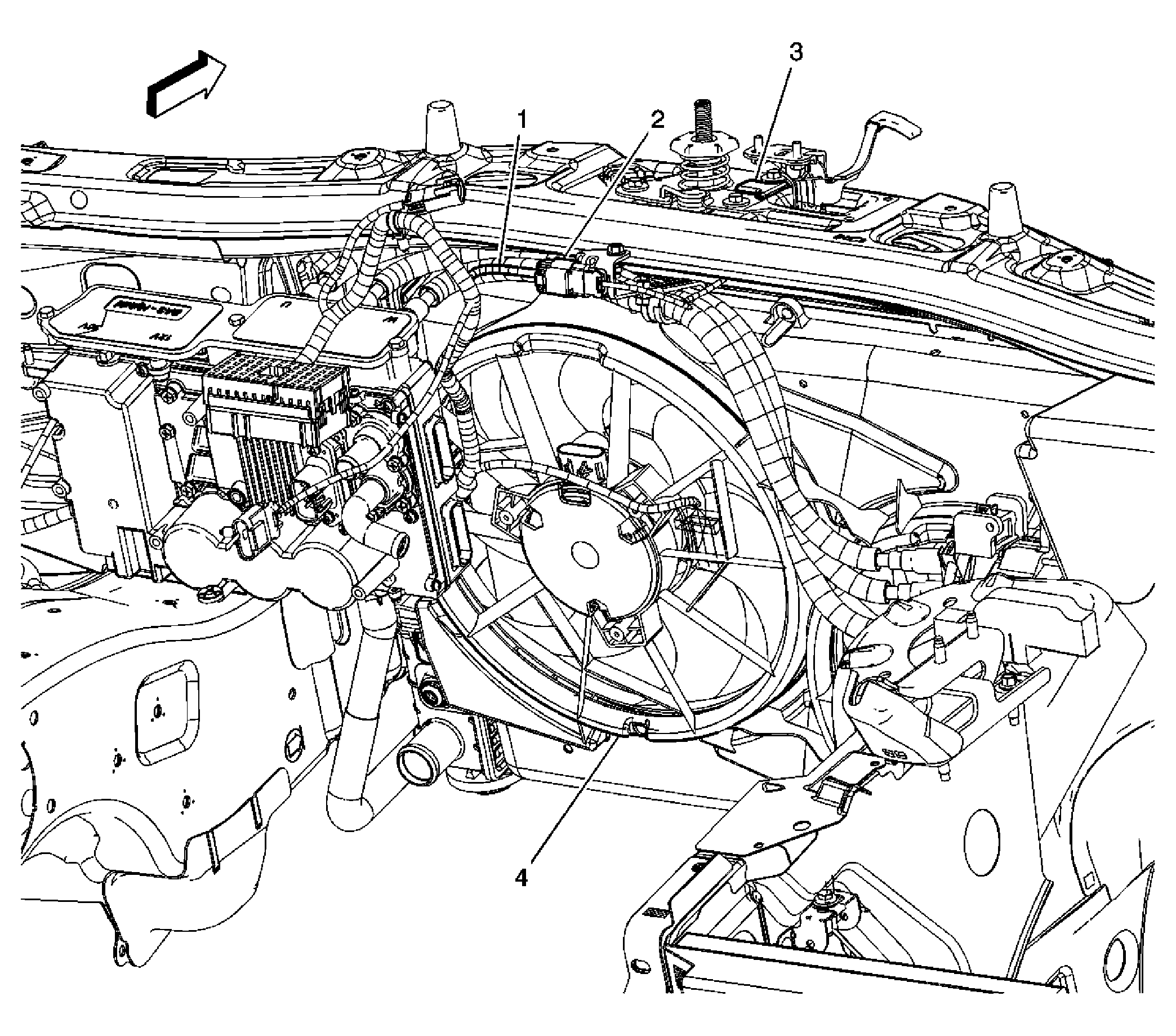

Fig 1: Front of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Hood Ajar Switch Connector
3	Hood Ajar Switch
4	Cooling Fan

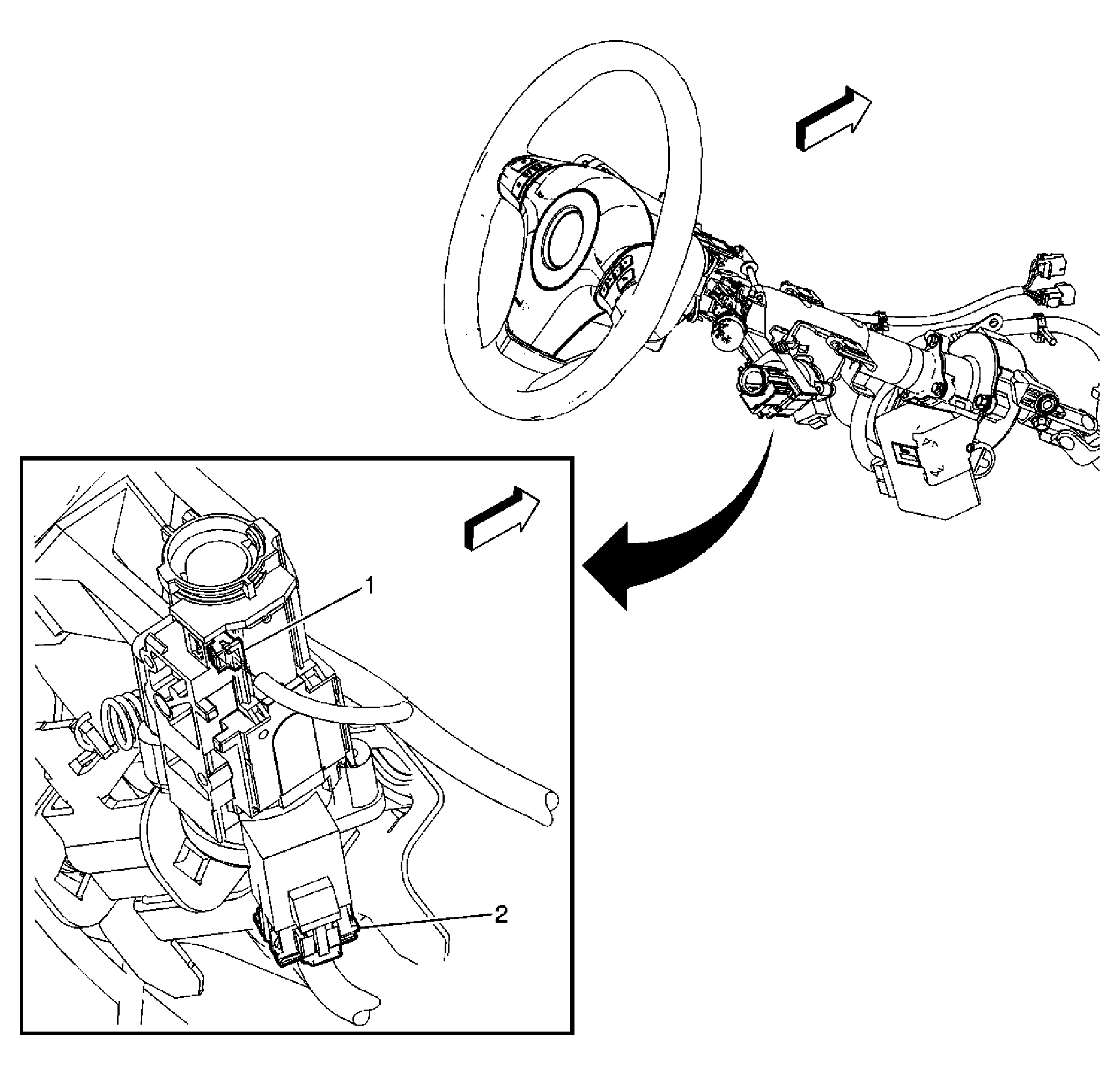

Fig 2: Ignition Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Switch Connector

Fig 3: Front of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Hood Ajar Switch Connector
3	Hood Ajar Switch
4	Cooling Fan
