Sunroof Module Assembly Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

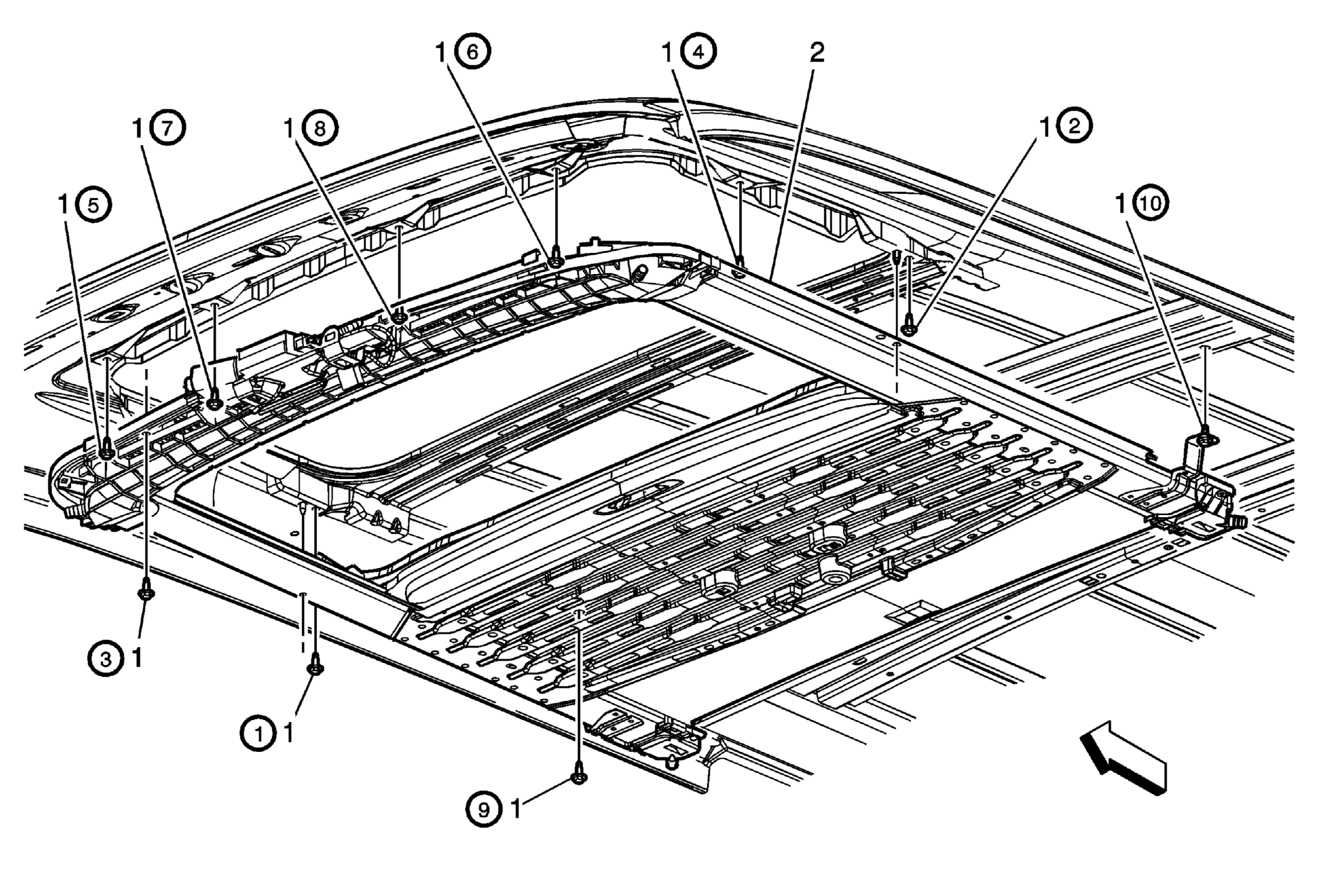

Fig 1: View Of Sunroof Module & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the sunroof window. Refer to Sunroof Window Replacement . Remove the air deflector. Refer to Sunroof Air Deflector Replacement . Lower the headliner as needed. Refer to Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 and U42) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 w/o U42) or Headlining Trim Panel Replacement (Avalanche w/CJ2 w/o CF5 and U42) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CJ3) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/U42 w/o CF5) or Headlining Trim Panel Replacement (LWB w/CF5 and U42) or Headlining Trim Panel Replacement (LWB w/CF5 w/o U42) or Headlining Trim Panel Replacement (LWB w/CJ2) or Headlining Trim Panel Replacement (LWB w/CJ3) or Headlining Trim Panel Replacement (LWB w/U42 w/o CF5) or Headlining Trim Panel Replacement (SWB w/CF5 and U42) or Headlining Trim Panel Replacement (SWB w/CF5 w/oU42) or Headlining Trim Panel Replacement (SWB w/CJ3) or Headlining Trim Panel Replacement (SWB w/o CF5 and U42) or Headlining Trim Panel Replacement (SWB w/U42 w/o CF5) . Remove the front sunroof module bracket. Refer to Sunroof Module Bracket Replacement . Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement . Remove the sunroof wiring harness. Remove the sunshade. Refer to Sunroof Sunshade Assembly Replacement .
1	Sunroof Module Bolts (Qty: 10) NOTE: Refer to Fastener Notice . Tip: Remove the drain hoses from each side of the drain weeper valve. With the aid of assistant, remove the module from the vehicle. Tighten: 9 N.m (80 lb in)
2	Sunroof Module Tip: When tightening the bolts, follow the mandatory sequence.

Callout

Component Name

Preliminary Procedures

Remove the sunroof window. Refer to Sunroof Window Replacement .
Remove the air deflector. Refer to Sunroof Air Deflector Replacement .
Lower the headliner as needed. Refer to Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 and U42) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 w/o U42) or Headlining Trim Panel Replacement (Avalanche w/CJ2 w/o CF5 and U42) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CJ3) or Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/U42 w/o CF5) or Headlining Trim Panel Replacement (LWB w/CF5 and U42) or Headlining Trim Panel Replacement (LWB w/CF5 w/o U42) or Headlining Trim Panel Replacement (LWB w/CJ2) or Headlining Trim Panel Replacement (LWB w/CJ3) or Headlining Trim Panel Replacement (LWB w/U42 w/o CF5) or Headlining Trim Panel Replacement (SWB w/CF5 and U42) or Headlining Trim Panel Replacement (SWB w/CF5 w/oU42) or Headlining Trim Panel Replacement (SWB w/CJ3) or Headlining Trim Panel Replacement (SWB w/o CF5 and U42) or Headlining Trim Panel Replacement (SWB w/U42 w/o CF5) .
Remove the front sunroof module bracket. Refer to Sunroof Module Bracket Replacement .
Remove the sunroof motor/actuator. Refer to Sunroof Motor/Actuator Replacement .
Remove the sunroof wiring harness.
Remove the sunshade. Refer to Sunroof Sunshade Assembly Replacement .

Sunroof Module Bolts (Qty: 10)

NOTE: Refer to Fastener Notice .

Tip:

Remove the drain hoses from each side of the drain weeper valve.
With the aid of assistant, remove the module from the vehicle.

Tighten: 9 N.m (80 lb in)

Sunroof Module
Tip: When tightening the bolts, follow the mandatory sequence.
