Amplifier Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

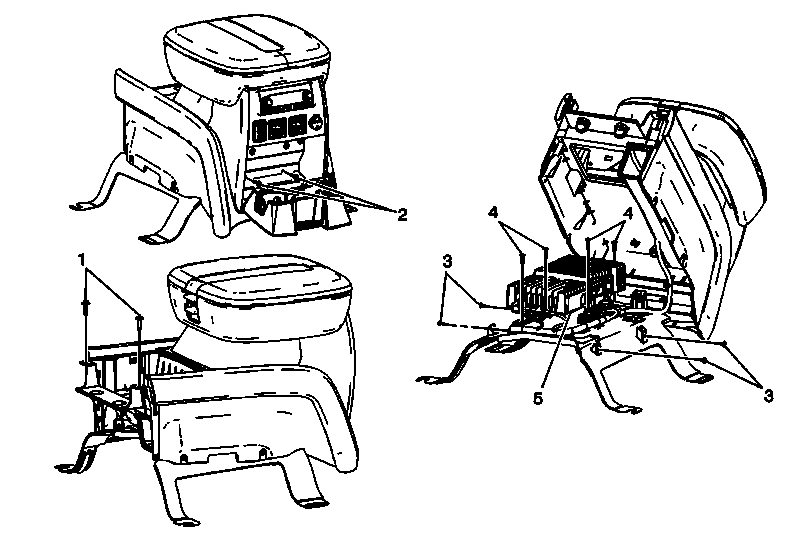

Fig 1: View Of Radio Speaker Amplifier Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the floor console bezel. Refer to Floor Console Bezel Replacement (Cadillac) or Floor Console Bezel Replacement (Except Cadillac) . Remove instrument panel lower center trim panels. Refer to Trim Replacement - Instrument Panel (I/P) Lower Center (Cadillac) .
1	Front Floor Console Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Rear Screw (Qty: 2) Tighten: 2 N.m (18 lb in) Tip: Open the rear cupholder to access the screws.
3	Front Floor Console Lower Screw (Qty: 4) Tighten: 9 N.m (80 lb in) Tip: Move the seats forward or rearward to access the screws as needed. Rotate the upper portion of the console assembly rearward to access the amplifier.
4	Amplifier Screw (Qty: 4) Tighten: 9 N.m (80 lb in)
5	Radio Speaker Amplifier Assembly Tip: Disconnect the electrical connectors.
