Power Brake Booster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

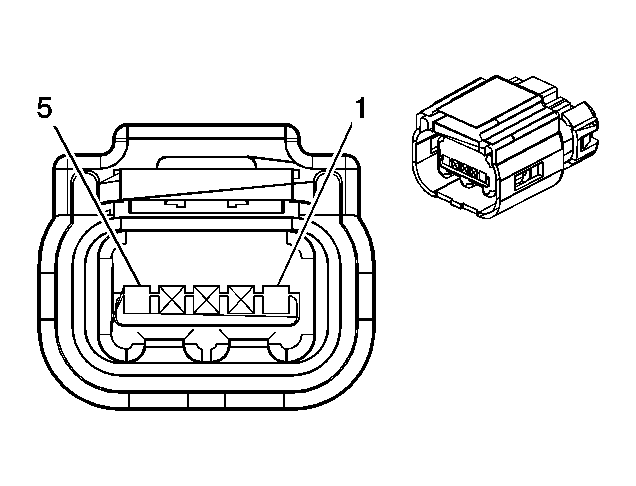

Fig 1: Power Brake Booster Connector End View

Courtesy of GENERAL MOTORS CORP.

Power Brake Booster Connector Parts Information

Connector Part Information

OEM: 13509356
Service: 19149287
Description: 2-Way F Kaizen 0.64 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Power Brake Booster Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	PU/WH	7333	Power Brake Booster High Control
2-4	-	-	Not Available
5	TN	7334	Power Brake Booster Low Control
