Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

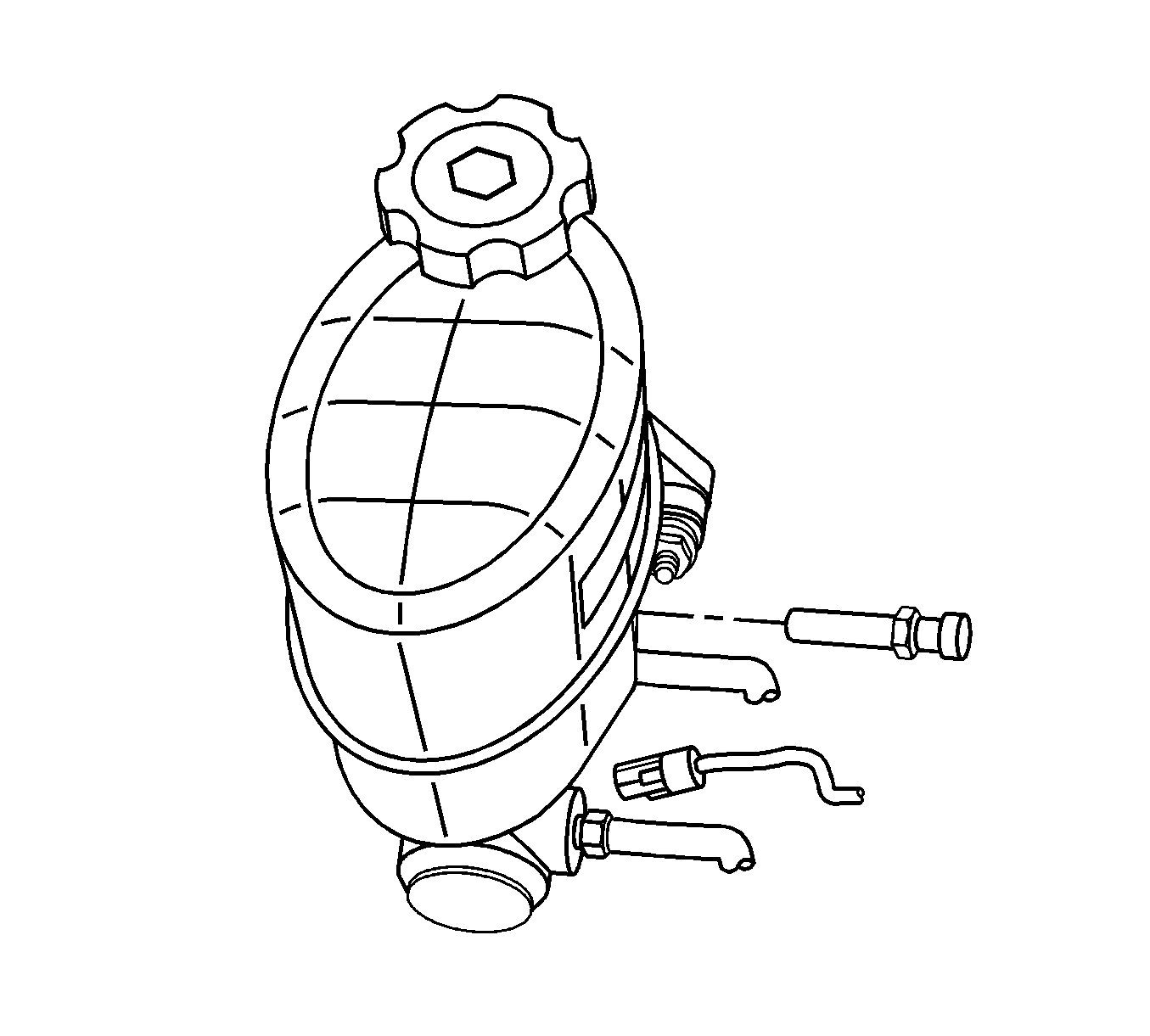

Fig 1: View Of Master Cylinder Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Install the fluid level sensor until the locking tabs snap into place.
Connect the electrical connector to the fluid level sensor.
