Trailer Brake Control Schematics
WARNING:
This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

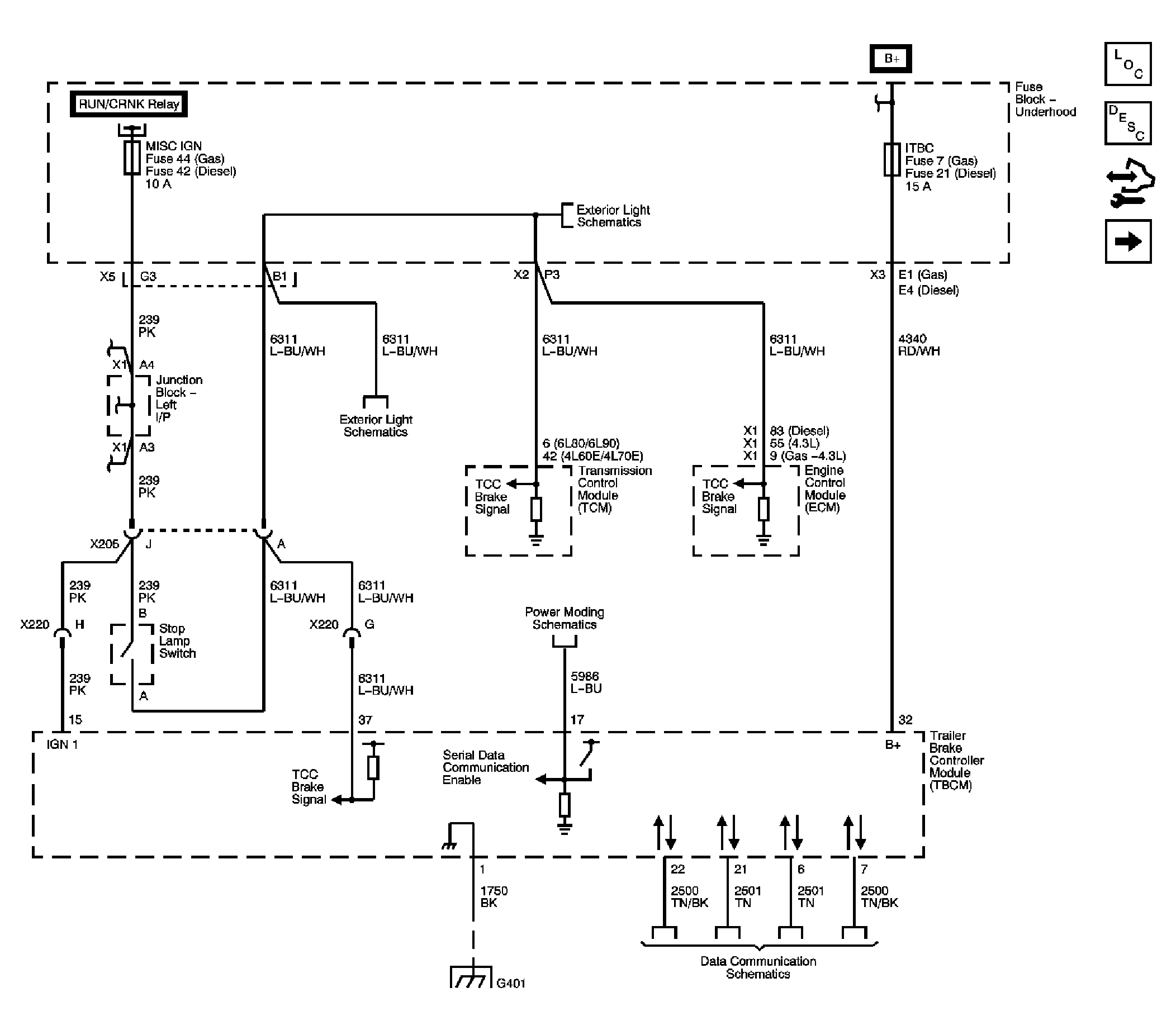

Fig 1: Module Power & Ground Schematic
Courtesy of GENERAL MOTORS CORP.

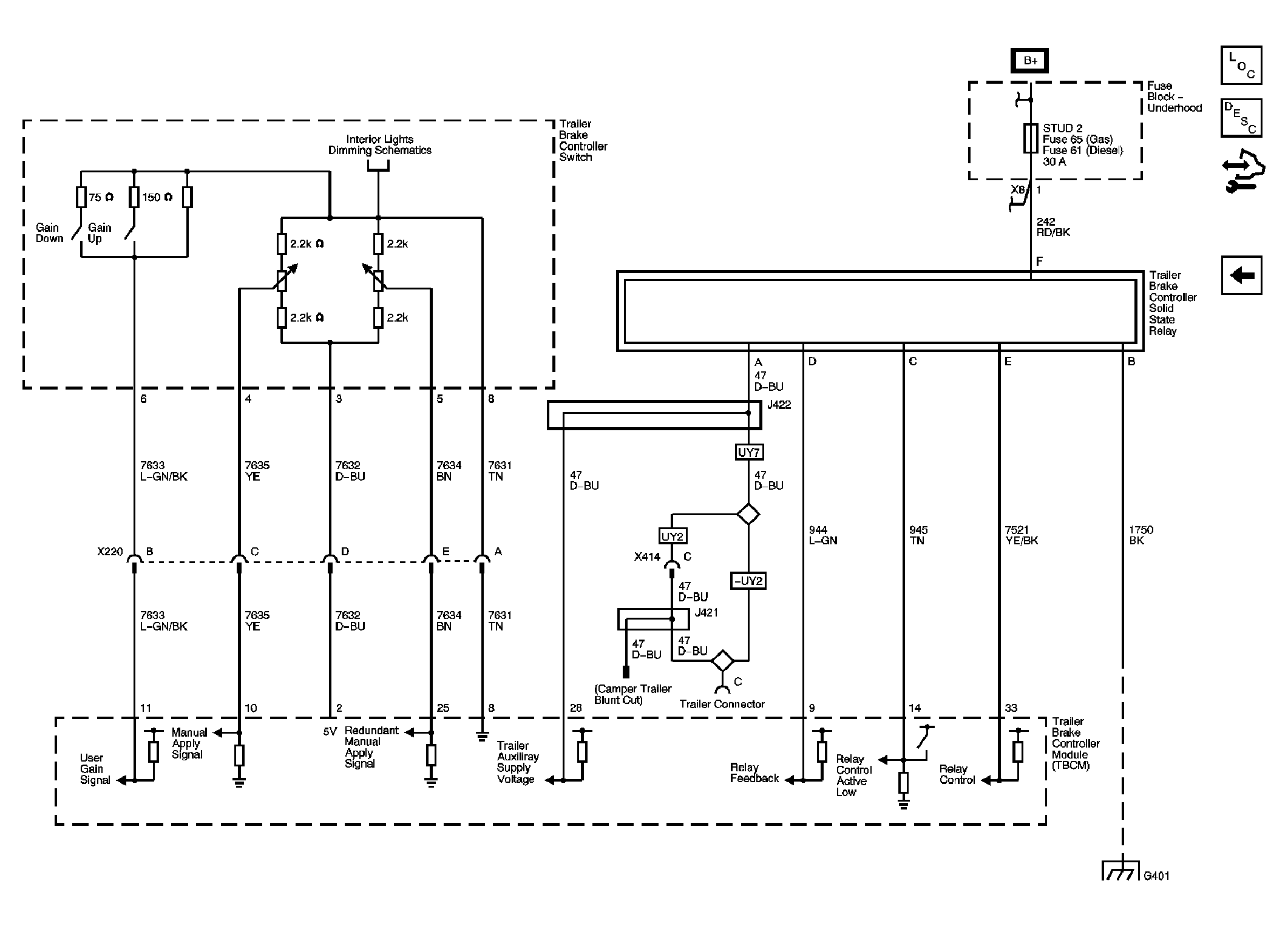

Fig 2: Trailer Brake Controls Schematic
Courtesy of GENERAL MOTORS CORP.
