Inflatable Restraint Steering Wheel Module Replacement

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

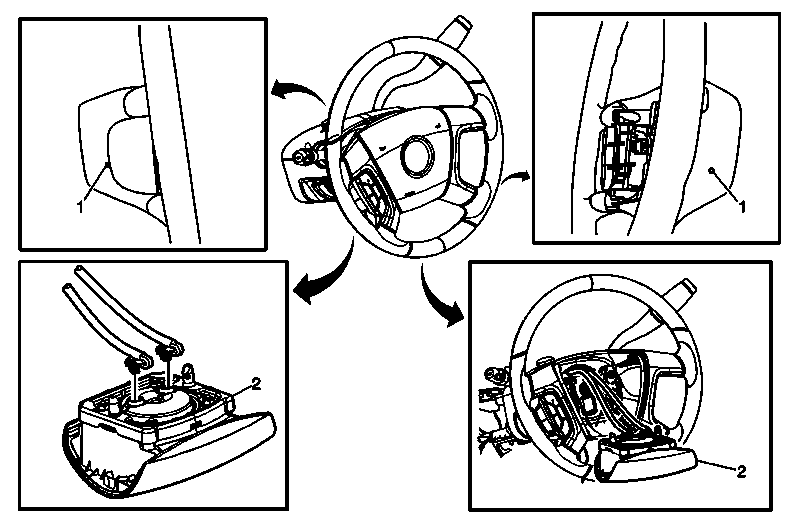

Fig 1: Inflatable Restraint Steering Wheel Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . CAUTION: Refer to SIR Caution . Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Retainer Procedure: On the back side of the steering wheel, there are 2 access holes which directs the tool to the release retainer. Using a 3-4 mm wire or 4 mm allen type wrench, push the retainer inward and slightly upward through the access hole. Repeat the step for the other access hole.
2	Steering Wheel Inflatable Restraint Module Procedure Release the connector position assurance (CPA) retainer. Disconnect the electrical connectors. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .

Callout

Component Name

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

CAUTION: Refer to SIR Caution .

Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Retainer
Procedure:
On the back side of the steering wheel, there are 2 access holes which directs the tool to the release retainer. Using a 3-4 mm wire or 4 mm allen type wrench, push the retainer inward and slightly upward through the access hole. Repeat the step for the other access hole.

Steering Wheel Inflatable Restraint Module

Procedure

Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
