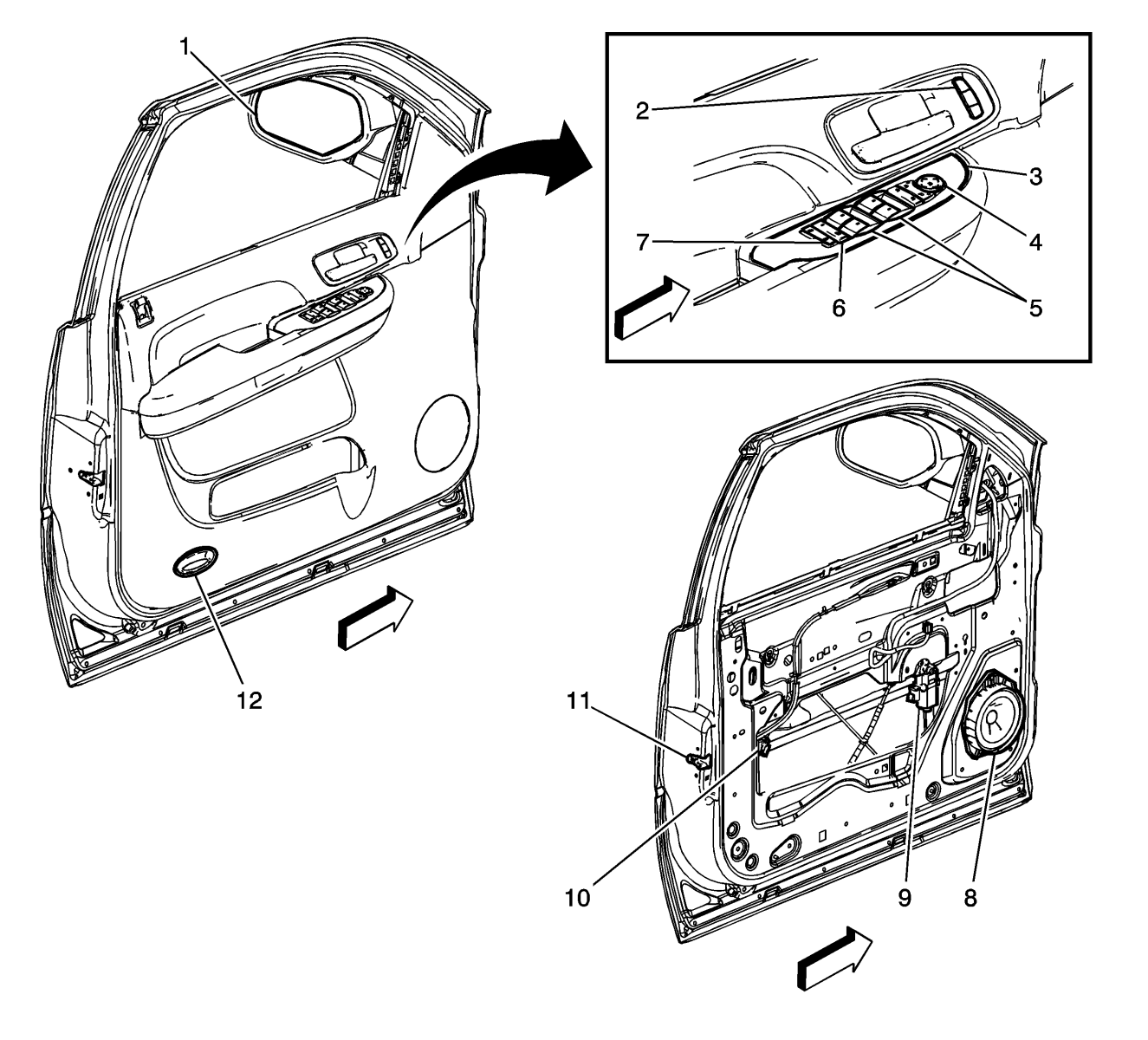

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| Outside Rearview Mirror - Driver | 1 |
| Heated Seat Switch - Driver (KA1) | 2 |
| Memory/Heated and Cooled Seat Switch - Driver (AN3 with KB6) | 2 |
| Memory/Heated Seat Switch - Driver (AN3 without KB6) | 2 |
| Door Lock/Window Switch - Driver | 3 |
| Outside Rearview Mirror Switch | 4 |
| Window Switches | 5 |
| Window Lock-Out Switch | 6 |
| Door Lock Switch | 7 |
| Speaker - Left Front | 8 |
| Window Motor - Driver | 9 |
| Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF) | 10 |
| Door Latch - Driver | 11 |
| Door Courtesy Lamp - Driver (Z75) | 12 |
