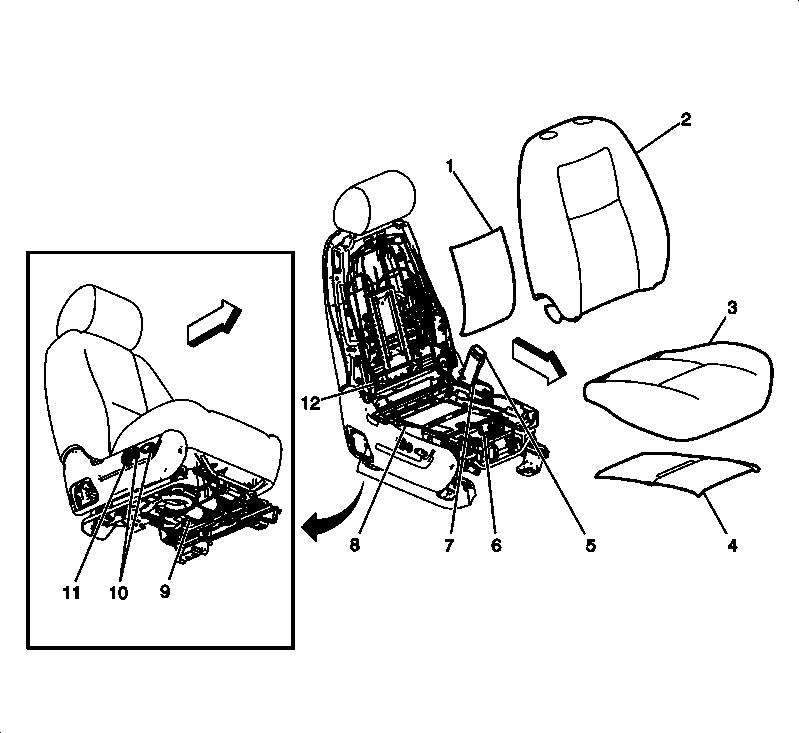

Passenger Seat Components (2 of 2)
Passenger Seat Components (2 of 2)
| Component Name | Callout |
|---|---|
| Heated Seat Element - Passenger Back (AN3 or KA1) | 1 |
| Passenger Seat Back Cushion | 2 |
| Passenger Seat Cushion | 3 |
| Heated Seat Element - Passenger Cushion (AN3 or KA1) | 4 |
| Seat Belt Switch - Passenger | 5 |
| Inflatable Restraint Passenger Presence System (PPS) Sensor | 6 |
| Inflatable Restraint Seat Belt Tension Sensor - Passenger | 7 |
| Inflatable Restraint Passenger Presence System (PPS) Module | 8 |
| Seat Adjuster Motor Assembly - Passenger | 9 |
| Seat Adjuster Switch - Passenger (AG2) | 10 |
| Seat Lumbar Switch - Passenger (AN3) | 11 |
| Seat Recline Motor - Passenger (AN3) | 12 |
