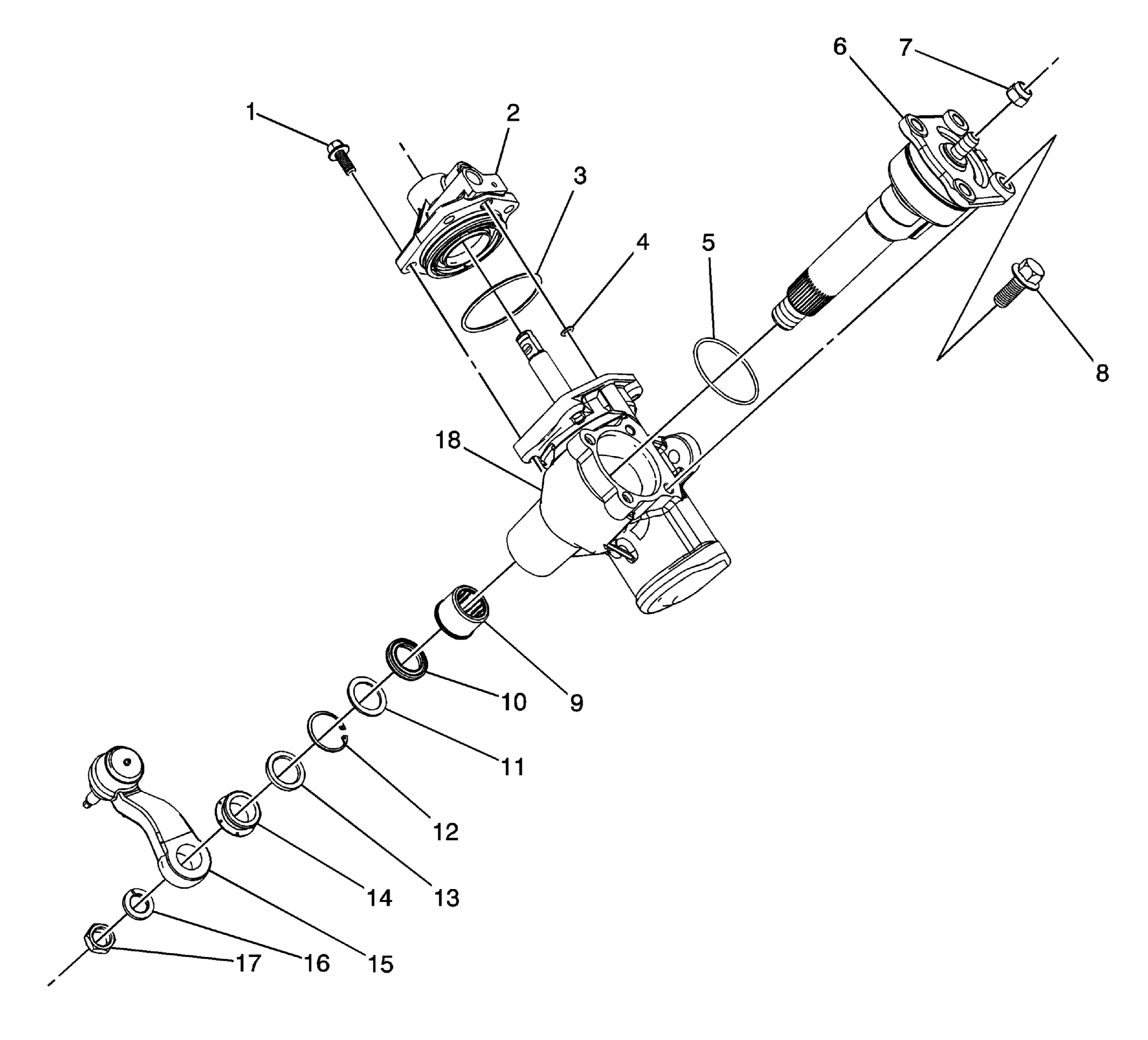

| 1 |
Stub Shaft Housing Bolt |
| 2 |
Stub Shaft Housing |
| 3 |
Stub Shaft Housing O-Ring |
| 4 |
Stub Shaft Housing O-Ring |
| 5 |
Steering Gear Pitman Shaft Housing Cover O-Ring |
| 6 |
Steering Gear Pitman Shaft and Housing Cover |
| 7 |
Steering Gear Pitman Shaft Lash Adjuster Nut |
| 8 |
Steering Gear Pitman Shaft Housing Cover Bolt |
| 9 |
Steering Gear Pitman Shaft Bearing |
| 10 |
Steering Gear Pitman Shaft Seal |
| 11 |
Steering Gear Pitman Shaft Washer |
| 12 |
Steering Gear Pitman Shaft Seal Retaining Ring |
| 13 |
Dust Seal |
| 14 |
Pitman Arm Boot |
| 15 |
Pitman Arm |
| 16 |
Pitman Arm Washer |
| 17 |
Pitman Arm Nut |
| 18 |
Steering Gear Housing |
