Installation Procedure

NOTE:

Install the new steering linkage inner tie rod washer in the same direction as noted previously.

Install the new steering linkage inner tie rod washer on the steering gear rack.

NOTE:

All threads must be clean prior to LOCTITE® application. Check the LOCTITE®, or equivalent, container for the expiration date. Use only enough LOCTITE® to evenly coat the threads.

Apply LOCTITE® 262 or equivalent to the steering linkage inner tie rod threads.
Attach the steering linkage inner tie rod to the steering gear rack and hand tighten it.

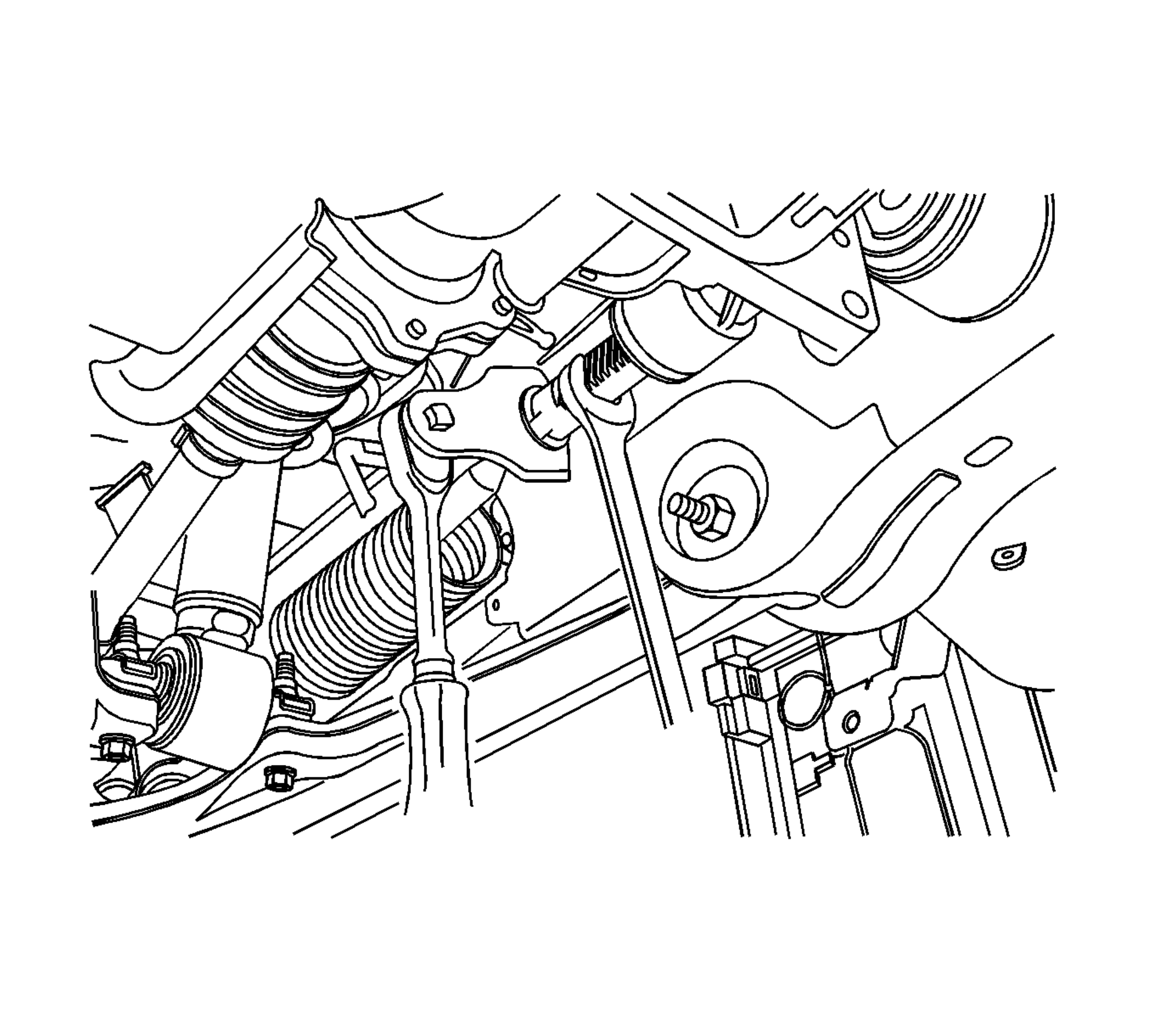

Fig 1: Tightening Steering Linkage Inner Tie Rod Using Wrench

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Tighten the steering linkage inner tie rod using CH-49009 inner tie rod wrench.
Tighten

Tighten the steering linkage inner tie rod to 145 (107 lb ft).

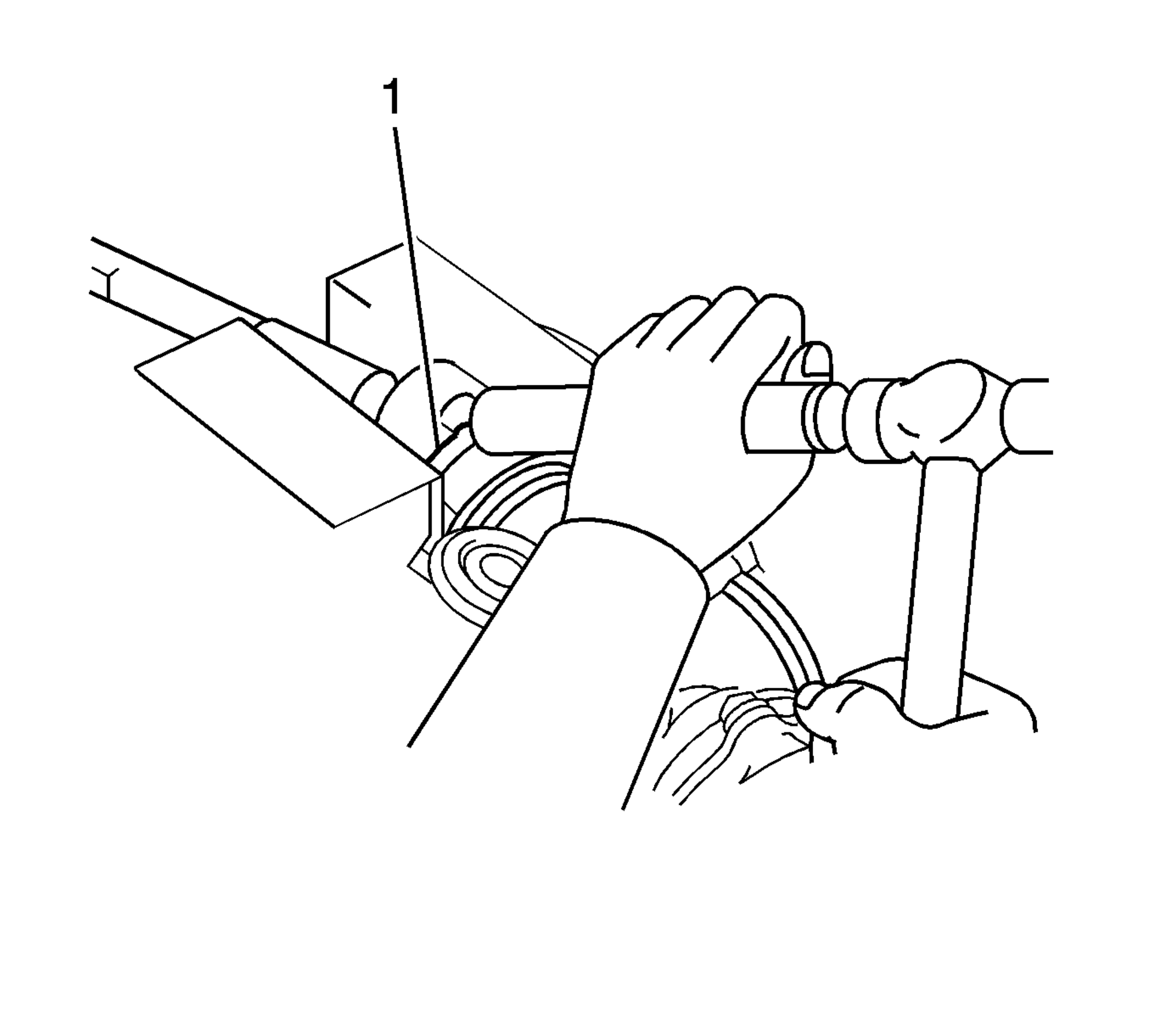

Fig 2: Aligning Inner Tie Rod Washer

Courtesy of GENERAL MOTORS COMPANY

Align the new steering linkage inner tie rod washer (1) to the flats on the steering linkage inner tie rod and bend the tabs over the flats.

NOTE:

The appropriate grease must be applied to the small end of the steering gear boot before installation.

Install the steering gear boot. Refer to Steering Gear Boot Replacement (Without HP2) , Steering Gear Boot Replacement (HP2) .
