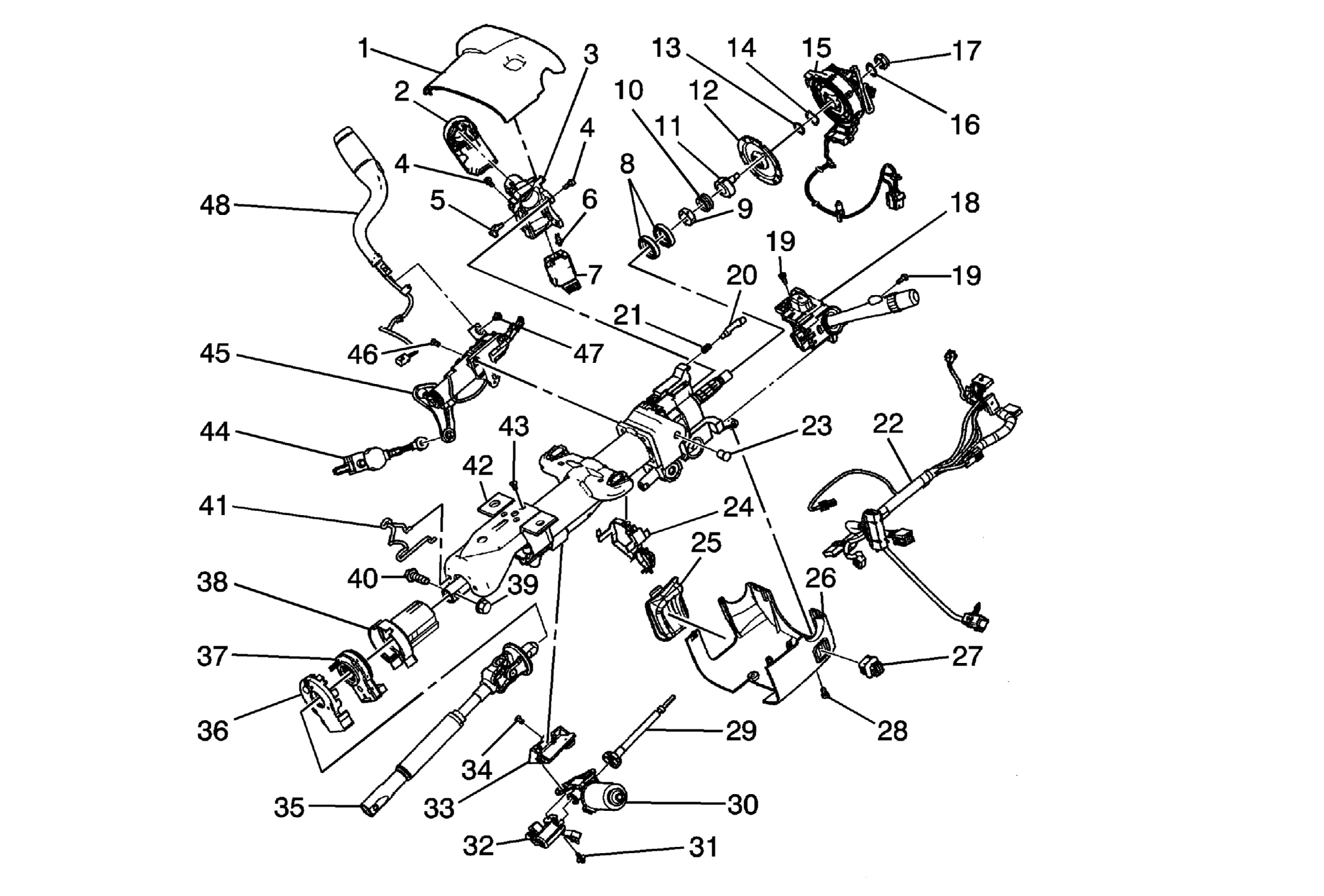

| 1 |
Upper Steering Column Shroud |
| 2 |
Theft Deterrent Module |
| 3 |
Ignition Lock Cylinder Case |
| 4 |
Ignition Lock Cylinder Case Bolt |
| 5 |
Automatic Transmission Park Lock Cable Retainer |
| 6 |
Upper Steering Column Shroud Bolt |
| 7 |
Ignition and Start Switch |
| 8 |
Steering Shaft Upper Bearing |
| 9 |
Steering Shaft Upper Bearing Inner Race Seat |
| 10 |
Steering Shaft Upper Bearing Spring |
| 11 |
Turn Signal Switch Cancel Cam |
| 12 |
Steering Shaft Lock Plate |
| 13 |
Steering Shaft Lock plate Retaining Ring |
| 14 |
Inflatable Restraint Steering Wheel Module Coil Wave Washer |
| 15 |
Inflatable Restraint Steering Wheel Module Coil |
| 16 |
Inflatable Restraint Steering Wheel Module Coil Retaining Ring |
| 17 |
Steering Wheel Nut |
| 18 |
Turn Signal Multifunction Switch |
| 19 |
Turn Signal Multifunction Switch Bolt |
| 20 |
Steering Wheel Lock Pin |
| 21 |
Steering Wheel Lock Pin Spring |
| 22 |
Steering Column Electrical Harness |
| 23 |
Pivot Pin |
| 24 |
Wiring Harness Strap |
| 25 |
Shift Lever Seal |
| 26 |
Lower Steering Column Shroud |
| 27 |
Steering Column Tilt Wheel Switch |
| 28 |
Lower Steering Column Shroud Bolt |
| 29 |
Tilt Motor Cable |
| 30 |
Tilt Motor |
| 31 |
Tilt Motor Bolt |
| 32 |
Tilt Motor Position Sensor |
| 33 |
Tilt Motor Bracket |
| 34 |
Tilt Motor Bracket Bolt |
| 35 |
Upper Intermediate Steering Shaft |
| 36 |
Steering Wheel Position Sensor Retaining Clip |
| 37 |
Steering Wheel Position Sensor |
| 38 |
Steering Shaft Lower Bearing |
| 39 |
Steering Shaft Coupling Nut |
| 40 |
Steering Shaft Coupling Bolt |
| 41 |
Automatic Transmission Park Lock Cable Support |
| 42 |
Steering Column Support and Upper Jacket Assembly |
| 43 |
Steering Column Bracket Screw |
| 44 |
Automatic Transmission Shift Lock Control Actuator |
| 45 |
Transmission Control |
| 46 |
Transmission Control Bolt |
| 47 |
Shift Lever Bolt |
| 48 |
Shift Lever |
